Description
Asante EN/SC SCSI to Ethernet Adapter 10Base-2 BNC AUI DB-25 w/ Power Supply
The Asante EN/SC is an external SCSI-to-Ethernet adapter that connects computers equipped with a DB-25 SCSI interface directly to an Ethernet network — no internal expansion slot required. It supports both 10Base-2 (thin coaxial/BNC) and AUI (15-pin DIX, for 10Base-5 or external transceivers) Ethernet connections. Three front-panel LED indicators — Power, Traffic, and Link — provide at-a-glance network status monitoring.
Specifications & What's Included
- Brand: Asante Technologies
- Model: EN/SC
- Type: External SCSI to Ethernet Adapter
- Form Factor: External desktop enclosure

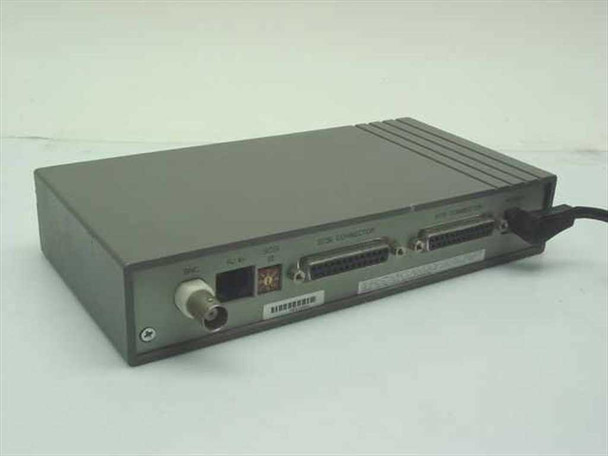

- SCSI Interface: DB-25 (two ports — in/out for daisy-chaining)
- Ethernet: 10Base-2 (BNC coax connector)
- Ethernet: AUI port (DB-15 DIX connector)

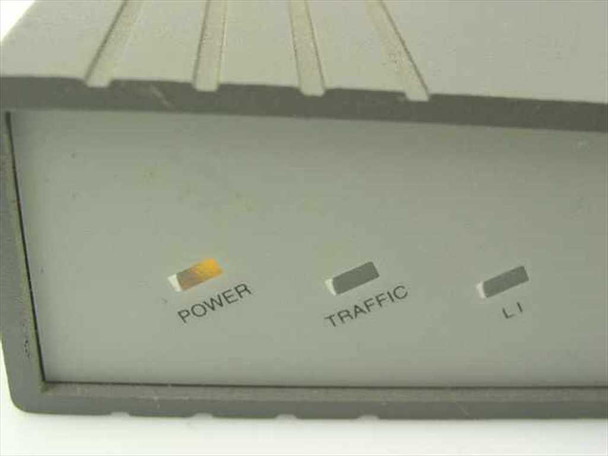

- Front-panel LEDs: Power, Traffic, LI (Link)

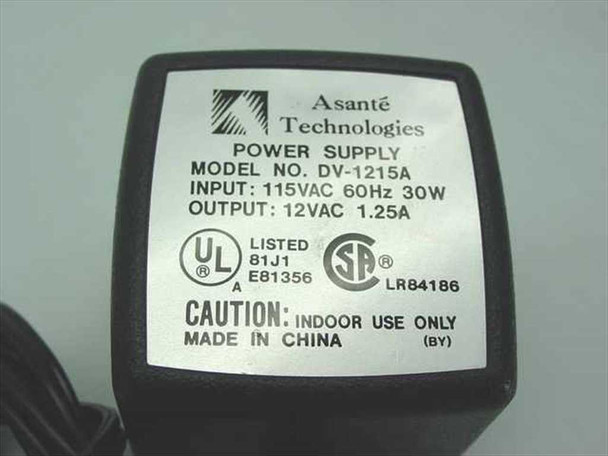

- Includes: Asante Technologies DV-1215A AC power supply
- Power Supply Input: 115VAC, 60Hz, 30W
- Power Supply Output: 12VAC, 1.25A
- Power Supply Certifications: UL Listed (E81356), CSA (LR84186)
- Power Supply Country of Manufacture: China
Applications
The Asante EN/SC was designed for the Apple Macintosh and other personal computers of the early-to-mid 1990s that lacked a built-in Ethernet port but had an external SCSI port — a common situation on compact Macs, older Mac IIs, and early PowerBooks. By presenting itself as a SCSI device, the EN/SC allowed these machines to join a 10 Mbps Ethernet segment without opening the case or requiring an NuBus, PDS, or LC card. The 10Base-2 BNC connector was the dominant wiring standard in small office and lab networks of that era, using thin coaxial cable in a daisy-chain bus topology, while the AUI port allowed connection to an external 10Base-T or 10Base-5 transceiver for greater flexibility. External SCSI Ethernet adapters like the EN/SC were also popular for early Unix workstations and other systems with SCSI but limited internal expansion. This is a mid-1990s piece of vintage networking hardware with collector and legacy-system-maintenance appeal.
This Asante EN/SC SCSI to Ethernet Adapter has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in use. The unit shows light surface wear consistent with normal use — some scuffing on the top housing is visible in photos. All three front-panel LED indicators (Power, Traffic, Link) are present and intact. It has not been powered up or tested at our facility. Includes the original Asante Technologies DV-1215A power supply (115VAC input, 12VAC 1.25A output). Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Asante |
Model: |
EN/SC |
MPN: |
EN/SC |
Type: |
SCSI to Ethernet Adapter |
SKU: |
24293 |
Interface Type: |
SCSI (DB-25), 10Base-2 BNC, AUI |
Network Connectivity: |
10Base-2 (Thin Ethernet), AUI (10Base-5) |
SCSI Connector: |
DB-25 (two ports — in/out daisy-chain) |
Ethernet Standard: |
10Base-2, AUI |
Form Factor: |
External Desktop |
LED Indicators: |
Power, Traffic, Link (LI) |
Power Supply Model: |
Asante DV-1215A |
Power Supply Input: |
115VAC 60Hz 30W |
Power Supply Output: |
12VAC 1.25A |
Seller Notes: |
Includes original Asante Technologies DV-1215A power supply. |
Compatible With: |
Mac, workstations with DB-25 SCSI interface |
Country/Region of Manufacture: |
China |
Condition Notes: |
This Asante EN/SC SCSI to Ethernet Adapter is in good used condition, pulled from a working environment. Shows light surface wear. Not powered or tested at our facility. Includes original Asante DV-1215A power supply. |
