The Arrow Pneumatics AFC50-1 is an air cooled aftercooler heat exchanger designed to cool compressed air discharged from an air compressor before it enters the distribution system or downstream equipment. The unit uses an electric axial fan to draw ambient air across a fin-and-tube heat exchanger core, removing heat from the compressed air stream and reducing moisture carryover. It is mounted on an integral four-leg steel stand and includes a Wilkerson F30-08-000 inline filter on the copper pipe outlet.

Specifications & What's Included

• Brand: Arrow Pneumatics, Inc. (Lake Zurich, IL)
• Model: AFC50-1
• Type: Air Cooled Aftercooler / Heat Exchanger
• Tube Operating Pressure: 250 PSI
• Maximum Temperature: 350°F
• Fan Power: Single Phase, 115V AC
• Cooling Method: Axial fan-driven air cooling across fin-and-tube core

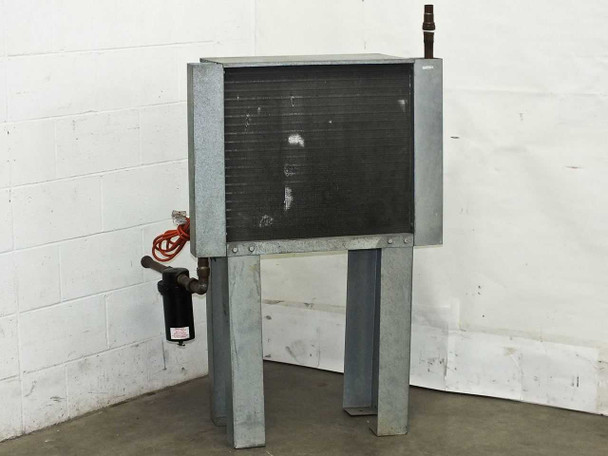

• Heat Exchanger Core: Fin-and-tube construction, visible through rear of housing
• Housing: Galvanized steel, floor-standing on integral four-leg welded steel stand
• Inlet/Outlet: Copper pipe connections at top and bottom of unit
• Included: Wilkerson F30-08-000 inline filter, mounted on copper pipe between the stand legs
• Orange power cord attached to electrical junction box on unit body

Applications
