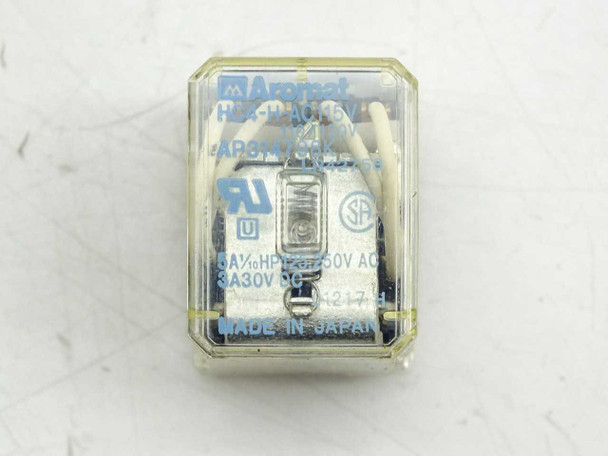

The Aromat HC4-H-AC115V is a 4PDT (4 pole double throw) general purpose plug-in relay with a 115V AC coil, manufactured by Aromat (a brand of Matsushita Electric Works, now part of Panasonic). It features a clear dust cover housing with blade-style plug-in terminals and is UL and CSA listed. Part number AP314798K is printed on the label. Made in Japan.

Specifications & What's Included

• Model: HC4-H-AC115V
• Part Number (MPN): AP314798K
• Type: General Purpose Plug-In Relay
• Coil Voltage: 115V AC
• Contact Configuration: 4PDT (4 Pole Double Throw)
• Contact Rating (AC): 5A, 250V AC
• Contact Rating (DC): 3A, 30V DC
• Termination: Blade-style plug-in terminals (14-pin compatible socket base)
• Housing: Clear dust cover
• Certifications: UL, CSA
• Country of Manufacture: Japan
• Included: Relay only — no socket/base included

Applications

The HC4 series from Aromat is a classic plug-in general purpose relay widely used in industrial control panels, machine tool automation, HVAC systems, and process control equipment. The 4PDT contact configuration allows a single relay to switch four independent circuits simultaneously, making it well suited for sequencing and interlocking applications. These relays are designed to mount in standard 14-pin octal or blade-style relay sockets, which are common throughout industrial control cabinets dating from the 1970s through the present day. Aromat relays manufactured under the Matsushita/Panasonic umbrella have a long-standing reputation for use in Japanese and international industrial equipment, and replacement units are still sought for legacy machinery maintenance. The 115V AC coil version is compatible with standard North American control circuit voltages.
