Ingersoll-Rand ARO CHL6-024-G 4KB58 Coil Valve Connector Cable 6ft 24VDC

Ingersoll-Rand ARO CHL6-024-G 4KB58 Coil Valve Connector Cable 6ft 24VDC

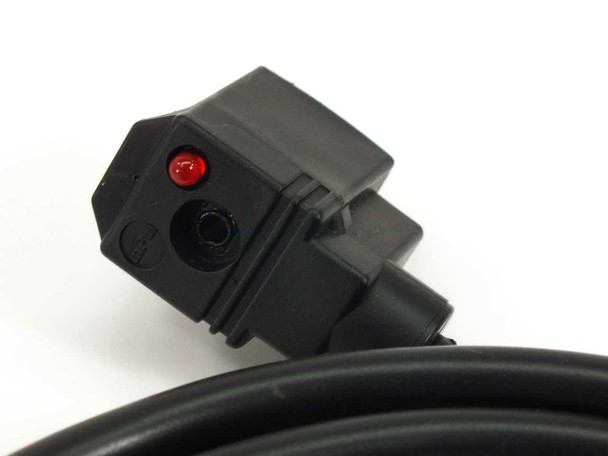

This is the ARO CHL6-024-G coil/valve connector cable (also cataloged as Grainger part 4KB58), a 6-foot 24 VDC lead assembly designed to connect solenoid valve coils on ARO 18mm compact pneumatic valves to a control circuit. One end terminates in a molded DIN-style rectangular connector body that plugs directly onto the valve solenoid coil; the other end is left with bare stripped leads for hardwiring into a panel or terminal strip. The connector features a built-in red LED power indicator and a suppressor/rectifier button for coil protection, visible in the photos.

Specifications & What's Included

• Manufacturer: Ingersoll-Rand / ARO
• Part Number: CHL6-024-G
• Secondary Part Number: 4KB58
• Cable Length: 6 ft
• Voltage: 24 VDC
• Compatible Valve Series: ARO 1/8 Port 18mm Compact Solenoid Valves
• Connector Type: DIN-style solenoid valve coil connector (rectangular body)
• LED Indicator: Red LED on connector body
• Suppressor/Rectifier: Built-in (push-button visible on connector face)
• Wire Termination: Bare open leads (green/yellow ground, additional conductors visible)
• Cable Jacket: Black, flexible
• Condition: New open box — never used or installed

Applications

ARO (a brand of Ingersoll-Rand) is a major manufacturer of pneumatic valves, air motors, and fluid handling equipment widely used in manufacturing, automation, and process control. This coil connector cable is used to wire solenoid-actuated directional control valves into machine control panels, PLC output modules, or relay-driven circuits. The 24 VDC rating matches common industrial control voltage standards, making these leads compatible with the vast majority of PLC-driven pneumatic valve assemblies on assembly lines, robotic work cells, conveyor systems, and material handling equipment. The built-in LED provides a quick visual indication of coil energization, useful for troubleshooting valve actuation issues in the field. These cables are also commonly used as replacement leads when original wiring is damaged or when extending valve wiring during machine retrofits.
