Arnet ArnetFAX 30001092 PCA-0218-00-F011 ISA Fax Modem Card PC Board

Arnet ArnetFAX 30001092 PCA-0218-00-F011 ISA Fax Modem Card PC Board

The Arnet ArnetFAX 30001092 is a full-length ISA bus fax modem expansion card for desktop PCs. Manufactured by Arnet Corporation and made in the USA, this card carries the board part number PCA-0218-00-F011 and provides internal fax communication capability via a standard ISA slot. The bracket features a DB25 connector and an RJ11 telephone jack for direct phone line connection.

Specifications & What's Included

• Manufacturer: Arnet Corporation
• Model / Board Number: 30001092

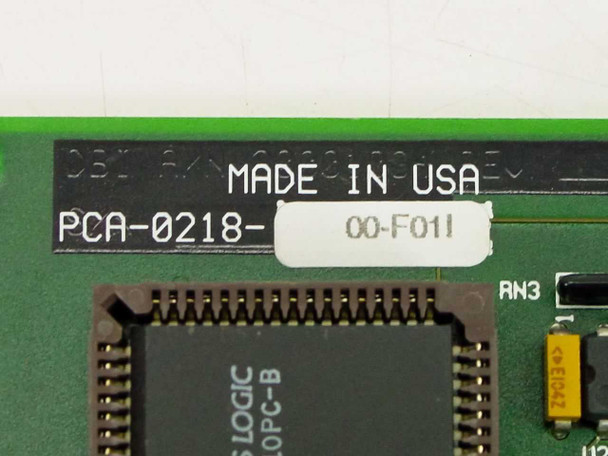

• PCB Part Number: PCA-0218-00-F011
• Bus Interface: ISA (Industry Standard Architecture), full-length card

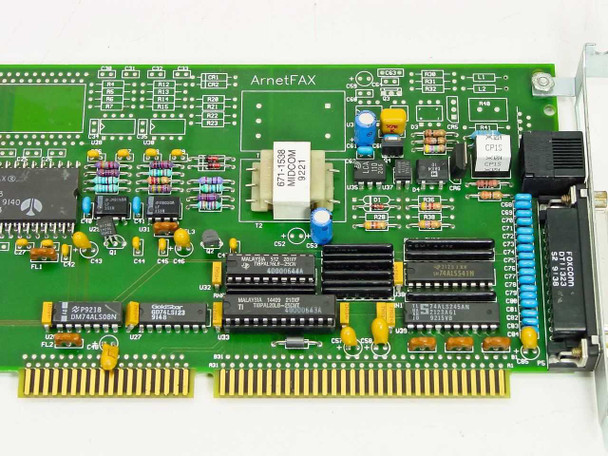

• Bracket Connectors: DB25 (25-pin) port and RJ11 telephone jack

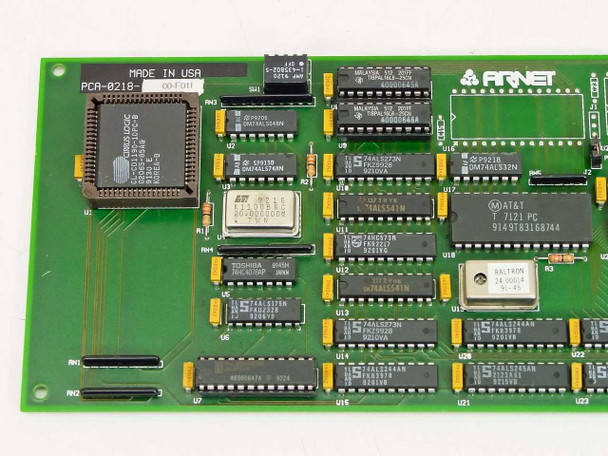

• Main Chipset: AT&T T7121 PC (visible on PCB)
• Supporting Logic: Multiple 74ALS-series logic ICs, Toshiba and Motorola DM74ALS-series ICs
• Crystal Oscillator: Baltron 24.000 MHz (visible on PCB)
• Country of Manufacture: USA (marked on PCB label)
• Included: Card only — no software, drivers, or manual included

Applications

The ArnetFAX line of ISA fax modem cards was designed for installation in desktop PCs equipped with ISA expansion slots, enabling those systems to send and receive faxes directly from the computer without a standalone fax machine. Arnet Corporation was a US-based manufacturer active in the late 1980s and early 1990s, specializing in serial and fax communication cards for the IBM PC-compatible market. ISA fax modem cards like this one were standard equipment in DOS and early Windows office environments of the era, allowing businesses to integrate fax functionality into their workstations. Today these cards are sought by technicians maintaining vintage DOS-era systems, collectors of early PC hardware, and hobbyists restoring period-correct computer builds. Compatible with any desktop PC or workstation equipped with a standard ISA slot.
