Description
Araknis AN-210-SW-R-8-PoE 8-Port PoE Managed Gigabit Switch 2 SFP 1U Rackmount

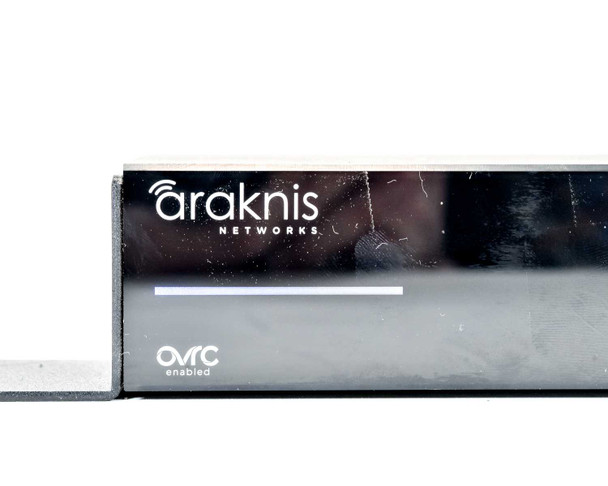

The Araknis AN-210-SW-R-8-PoE is a managed gigabit switch from Araknis Networks' 210 series, purpose-built for structured wiring and AV/IT integration in residential and light commercial installations. It features rear-facing ports and front-facing status LEDs, making it clean and easy to manage once installed in a standard 19-inch equipment rack. The switch is OvrC-enabled, allowing remote monitoring and management through the OvrC cloud platform used widely by integrators.
Specifications & What's Included

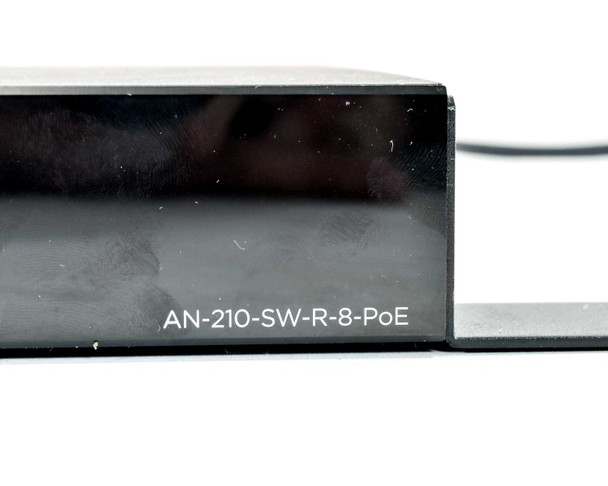

- Model: AN-210-SW-R-8-PoE

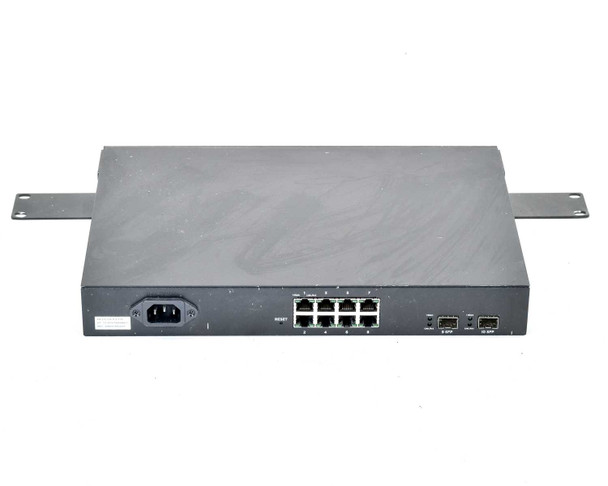

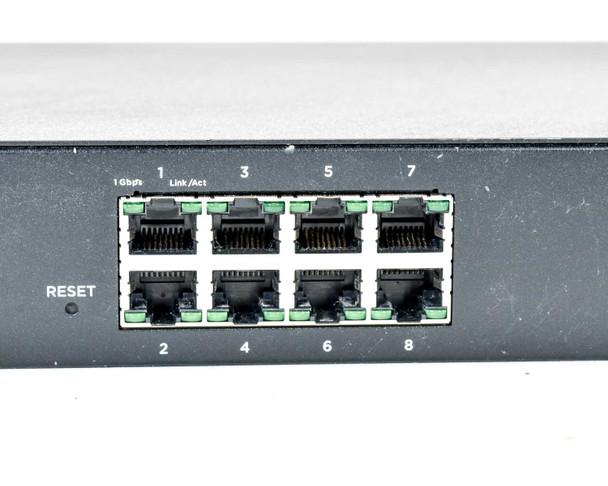

- 8 x RJ-45 rear-facing Gigabit PoE ports (10/100/1000 Mbps, ports 1–8)

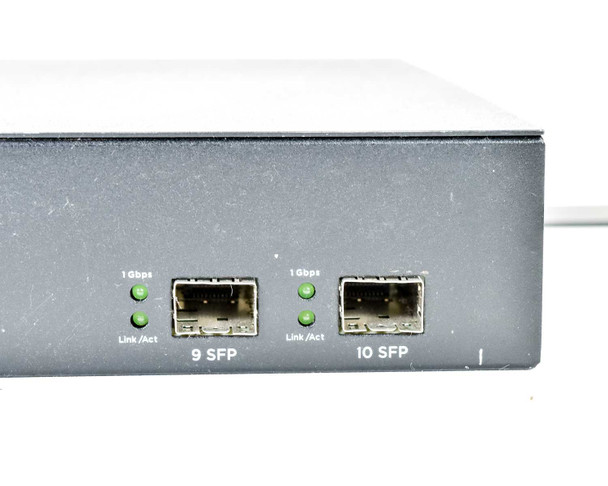

- 2 x SFP uplink slots (ports 9F and 10F) for fiber or gigabit uplinks
- PoE on all 8 copper ports (IEEE 802.3af/at)

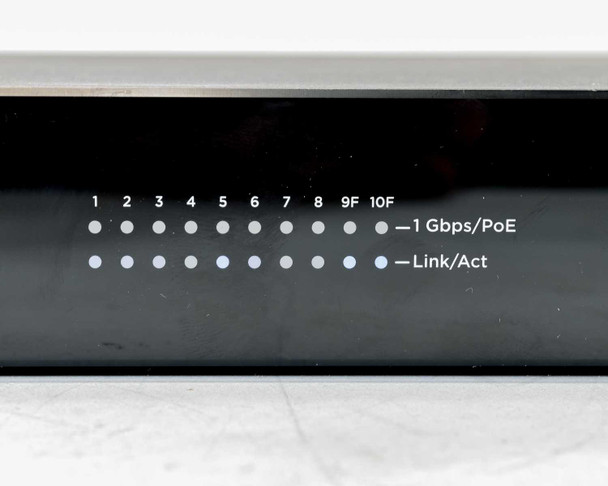

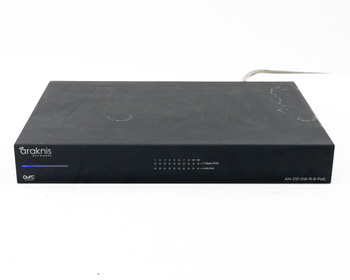

- Front-facing LED indicators: 1 Gbps/PoE and Link/Act per port
- Management: Web GUI with full Layer 2 managed features; OvrC cloud-enabled

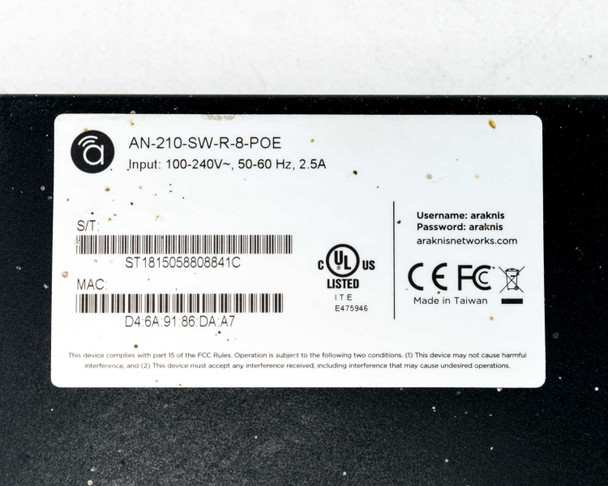

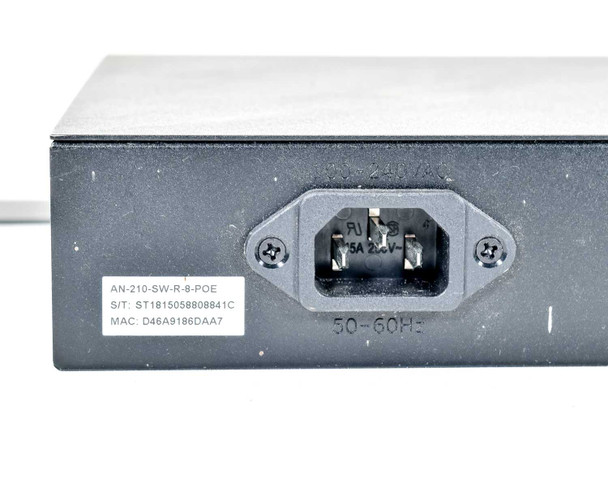

- Power input: 100–240V~, 50–60 Hz, 2.5A (IEC C14 inlet)

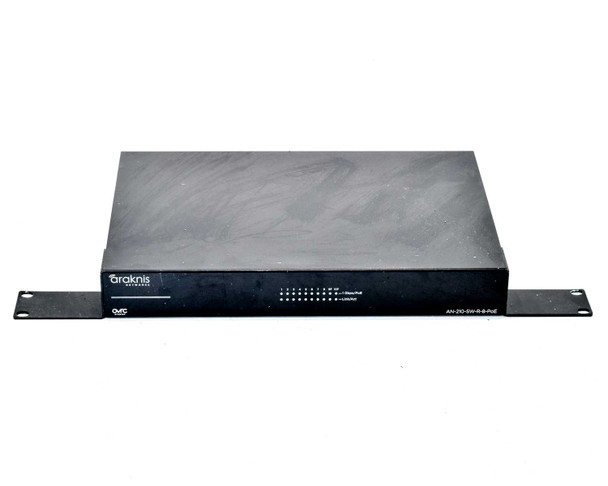

- Form factor: 1U, 19-inch rackmount with rear-port orientation
- Certifications: UL Listed, CE, FCC (ITE E475946)
- Manufactured in Taiwan
- Includes: switch with rack ears attached; no power cable or SFP modules included
Applications
The Araknis 210 series is a line of managed switches designed for home automation and custom AV/IT installations, where clean rack wiring and remote manageability matter. The rear-port layout keeps the front of the rack tidy — a key requirement in residential equipment closets and media rooms where aesthetics and organization are priorities. Integrators and installers use these switches to build reliable local networks supporting IP cameras, AV distribution systems, wireless access points, and smart-home devices. OvrC integration lets remote technicians monitor the switch, reboot ports, and troubleshoot client networks without a truck roll. Managed features such as VLANs, QoS, and IGMP snooping allow proper traffic segmentation between security, AV, and general data networks — important in modern smart-home deployments where multiple bandwidth-sensitive systems share the same infrastructure.

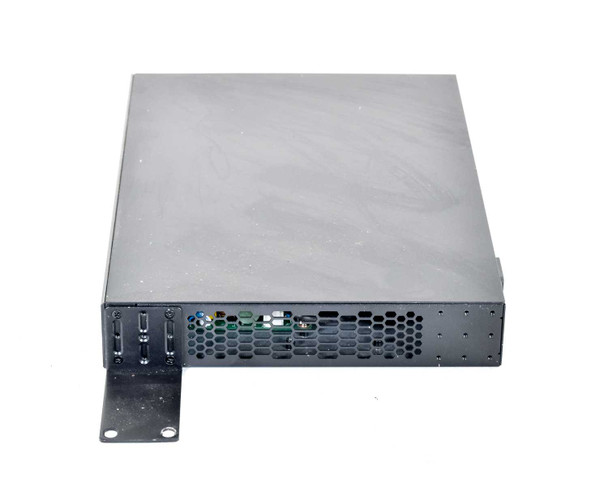

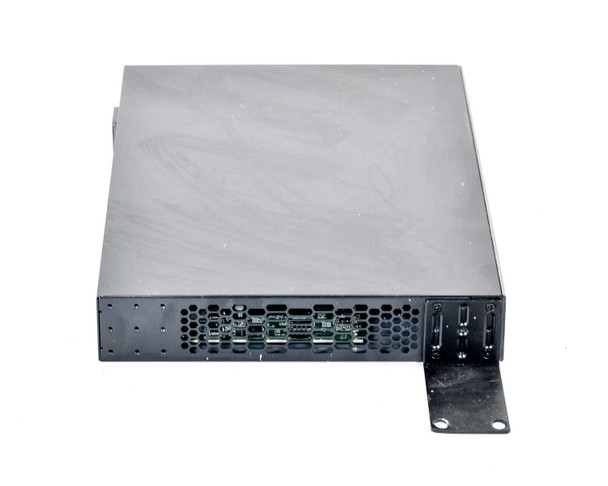

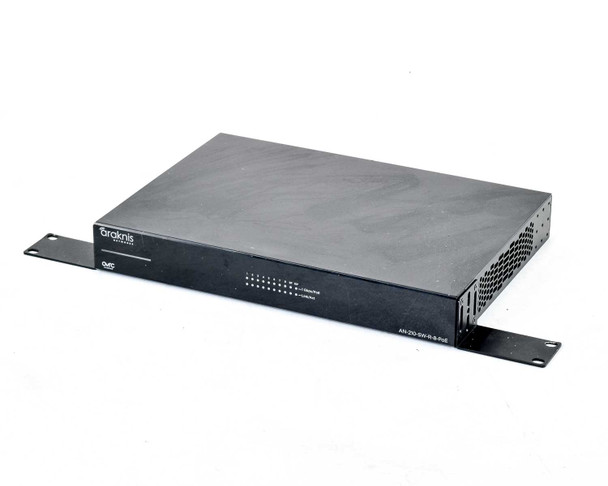

This Araknis AN-210-SW-R-8-PoE Managed Gigabit PoE Switch has been tested and is in good working order. The unit shows light cosmetic wear on the chassis — scuffing and minor marks on the top and side panels consistent with prior rack installation — but is fully functional. Rack ears are attached and intact. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Araknis Networks |
Model: |
AN-210-SW-R-8-PoE |
MPN: |
AN-210-SW-R-8-POE |
SKU: |
52876 |
Type: |
Managed Gigabit PoE Switch |
Number of Ports: |
8 x RJ-45 PoE + 2 x SFP Uplink (10 total) |
Port Speed: |
10/100/1000 Mbps (Gigabit) |
PoE: |
Yes — PoE on all 8 RJ-45 ports |
Uplink Ports: |
2 x SFP (ports 9F, 10F) |
Management: |
Managed — Web GUI, OvrC-enabled |
Form Factor: |
1U Rackmount, 19-inch |
Port Orientation: |
Rear-facing ports, front-facing indicators |
Power Requirements: |
100-240V~, 50-60 Hz, 2.5A |
Country/Region of Manufacture: |
Taiwan |
Certifications: |
UL Listed, CE, FCC |
Compatible With: |
Araknis Networks residential AV/IT installations |
Protocol: |
IEEE 802.3, 802.3u, 802.3ab, 802.3af/at PoE |
Seller Notes: |
Switch only — no power cable or SFP modules included |
Condition Notes: |
This Araknis AN-210-SW-R-8-PoE managed gigabit PoE switch has been tested and is in good working order. Shows light cosmetic wear from prior rack use. Please contact us with any questions. |
