APW 06-01299300 Microsoft Hardware Architecture Reference Platform HARP

(No reviews yet) Write a Review
SKU:
36240
MPN:
06-01299300
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
27.00 LBS
Shipping:
Calculated at Checkout
  • APW 06-01299300 Microsoft Hardware Architecture Reference Platform – front panel view showing LCD display, keypad, power switch, and installed boards
  • APW 06-01299300 Microsoft HARP – rear/side view showing backplane with multiple card slots and internal power supply

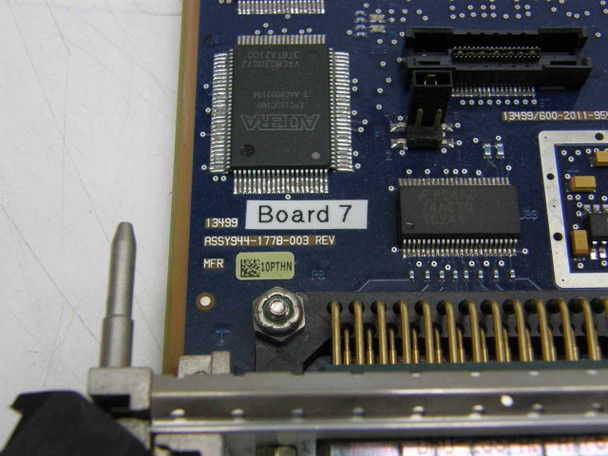

  • ASSY944-1778-003 Board 7 close-up showing Altera FPGA chip and board label with MFR barcode
  • APW HARP FPGA DSP board ASSY944-1778-003 – full board view showing multiple Altera FPGA and DSP chips with front-panel connectors

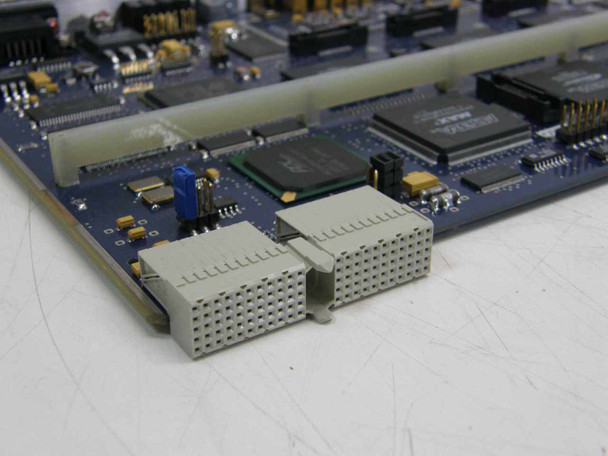

  • APW HARP internal board close-up showing dual header connectors and Altera FPGA ICs on blue PCB
  • Rockwell Scientific EWLAN Switching Engine 2 board EWLAN-SE-VIRA – full board view showing green PCB with heatsink and ejector handles
  • Rockwell Scientific EWLAN-SE-VIRA board label close-up showing assembly number, S/N 003, and Linear IC

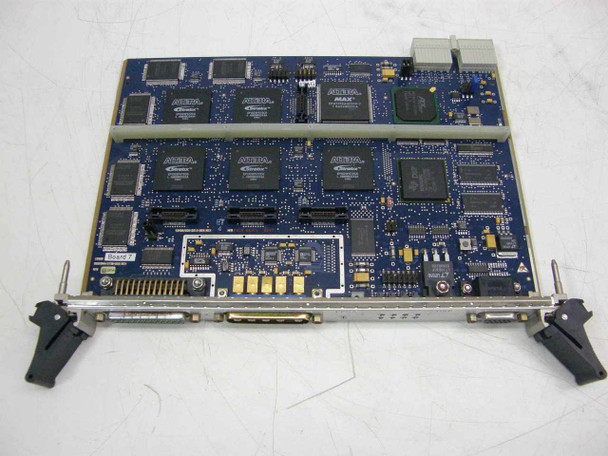

  • APW HARP FPGA/DSP board – top view showing multiple Altera MAX FPGA chips on blue double-height card with ejector handles
  • ASSY944-1778-003 Board 7 second close-up showing Altera FPGA chip, board label, and MFR barcode detail
$300.00
Was: $600.00
Current Stock: 2

Sold Out

Description

APW 06-01299300 Microsoft Hardware Architecture Reference Platform HARP

Desktop open-frame reference platform designed for hardware architecture development and testing. Features integrated Altera FPGA/DSP processing with Rockwell Scientific wireless LAN switching capabilities.

Specifications & What's Included

  • Model: APW 06-01299300 | SKU: 36240
  • Altera FPGA/DSP board (ASSY944-1778-003 REV)
  • Rockwell Scientific EWLAN Switching Engine 2 module installed
  • Multiple expansion card slots (VME/proprietary backplane)
  • Front panel LCD display, 8-button keypad, power and reset controls
  • Open-frame desktop chassis

Applications

HARP platforms served as development and validation systems for network architecture and wireless switching prototypes. Commonly used in telecommunications and enterprise networking labs for FPGA-based algorithm testing and hardware verification. The Altera FPGA fabric and Rockwell EWLAN module combination supported custom switching logic implementation and protocol development work during the mid-2000s telecom equipment design cycle.

Condition: Used
This APW 06-01299300 Microsoft Hardware Architecture Reference Platform has been inspected and is in good used condition. The chassis, front panel controls, LCD display, and installed boards all appear intact with no obvious damage. The unit shows normal surface wear consistent with prior lab or development use. The installed boards — including the Altera FPGA/DSP card (ASSY944-1778-003, Board 7) and the Rockwell Scientific EWLAN Switching Engine 2 (EWLAN-SE-VIRA) — are present and seated. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
APW
Model:
06-01299300
MPN:
06-01299300
Type:
Hardware Architecture Reference Platform
SKU:
36240
Platform Name:
Microsoft Hardware Architecture Reference Platform (HARP)
Form Factor:
Desktop / Open-Frame Chassis
Included Board 1:
Altera FPGA/DSP board, ASSY944-1778-003 REV (Board 7)
Included Board 2:
Rockwell Scientific EWLAN Switching Engine 2, ASSY: EWLAN-SE-VIRA
Main FPGA Chipset:
Altera (multiple Altera MAX/FPGA ICs visible on boards)
Expansion Slots:
Multiple card slots visible (VME/proprietary backplane)
Front Panel:
LCD display, 8-button keypad, DC Power switch, Reset button
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Includes installed FPGA/DSP boards and Rockwell EWLAN module as photographed
Country/Region of Manufacture:
United States
Condition Notes:
APW 06-01299300 Microsoft Hardware Architecture Reference Platform. Inspected, good used condition. Chassis and installed boards (Altera FPGA/DSP, Rockwell EWLAN-SE-VIRA) present and intact. Normal lab wear.
View AllClose
