Description
Apple IIGS Desktop Power Supply 699-0126 AA13581 115V 38W +5V 4A +12V 2.5A ASTEC

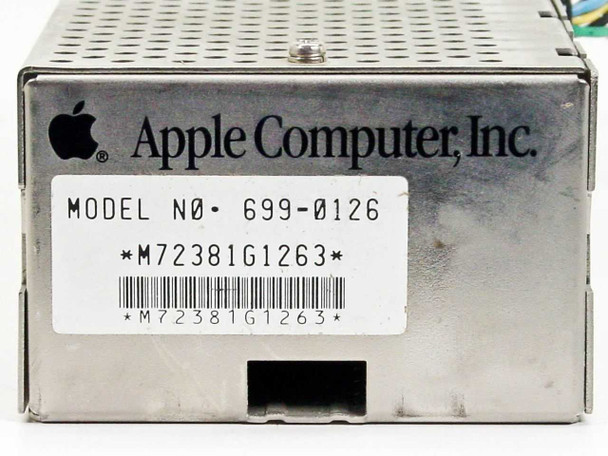

The Apple 699-0126 is the original internal power supply for the Apple IIGS desktop computer, manufactured by ASTEC (model AA13581) under contract for Apple Computer, Inc. It accepts 115V AC input and delivers four regulated DC output rails to power the IIGS motherboard and peripherals. The unit is housed in a vented steel chassis with an integrated cooling fan and connects via a proprietary 6-pin output harness.
Specifications & What's Included
- Apple Model Number: 699-0126
- OEM Manufacturer / Model: ASTEC AA13581
- Compatible With: Apple IIGS Desktop Computer
- Input Voltage: 115V AC
- Input Frequency: 50/60 Hz
- Input Power: 63W
- Maximum Continuous Output Power (natural convection): 38W
- Output V1: +5V DC @ 4.0A
- Output V2: +12V DC @ 2.5A
- Output V3: −5V DC @ 0.25A
- Output V4: −12V DC @ 0.25A
- Output Connector: 6-pin proprietary Apple connector
- AC Inlet: IEC C14 (standard IEC power inlet)
- Power Switch: Rocker-style I/O switch on rear panel
- Cooling: Internal fan
- Enclosure: Vented steel chassis
- Country of Manufacture: Malaysia
- Certifications: UL Listed, CSA (File LR53820)
- Includes: Power supply unit only — no AC power cord, cables, or mounting hardware
Applications
The Apple IIGS was Apple's most advanced 8/16-bit personal computer, released in 1986 and produced through 1992. It used a 65C816 processor and was designed to be backward-compatible with the Apple II family while offering significantly expanded capabilities including enhanced graphics, sound (via the Ensoniq 5503 chip), and memory. The 699-0126 power supply is the correct direct replacement for any IIGS in need of a working PSU — whether for a restoration, a vintage computing project, or keeping an original machine in daily service. The IIGS remains an actively collected and used machine in the vintage Apple community, and working original power supplies are increasingly difficult to find. The ASTEC AA13581 was the sole OEM supplier for this unit throughout the IIGS production run.
This Apple IIGS Power Supply (model 699-0126 / ASTEC AA13581) has been bench-tested at our facility and is in good working condition. The steel enclosure shows light surface wear and scuffing consistent with prior use, but is structurally sound with no dents or damage. The IEC inlet, power switch, cooling fan, and output connector are all intact and undamaged. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Apple |
Model: |
699-0126 |
MPN: |
699-0126 |
Secondary Model: |
AA13581 |
OEM Manufacturer: |
ASTEC |
Type: |
Internal Desktop Computer Power Supply |
SKU: |
32329 |
Compatible With: |
Apple IIGS Desktop Computer |
Input Voltage: |
115V AC |
Input Frequency: |
50/60 Hz |
Input Power: |
63W |
Maximum Output Power: |
38W |
Output V1: |
+5V DC, 4.0A |
Output V2: |
+12V DC, 2.5A |
Output V3: |
-5V DC, 0.25A |
Output V4: |
-12V DC, 0.25A |
Output Connector: |
6-pin proprietary Apple connector |
Cooling: |
Internal fan |
Form Factor: |
Proprietary Apple IIGS internal |
Enclosure: |
Vented steel chassis |
Country/Region of Manufacture: |
Malaysia |
Certifications: |
UL, CSA (LR53820) |
Seller Notes: |
Power supply unit only — no cables or mounting hardware included. |
Condition Notes: |
This Apple IIGS Power Supply 699-0126 (ASTEC AA13581) has been bench-tested at our facility and is in good working condition. Shows light cosmetic wear. IEC inlet, fan, and output connector intact. |
