Apple 820-0185-08 Mac High Resolution NuBus Video Card 1988 Vintage

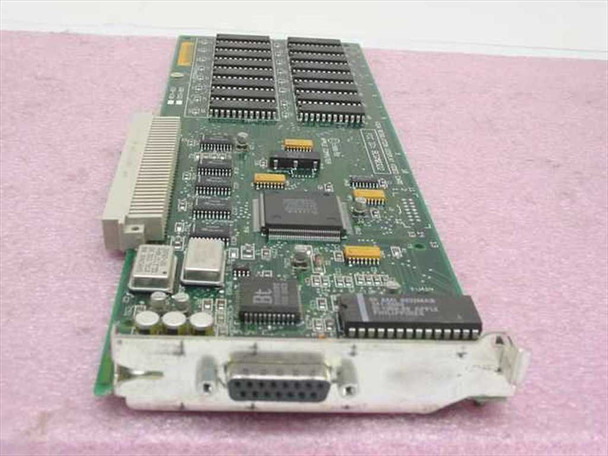

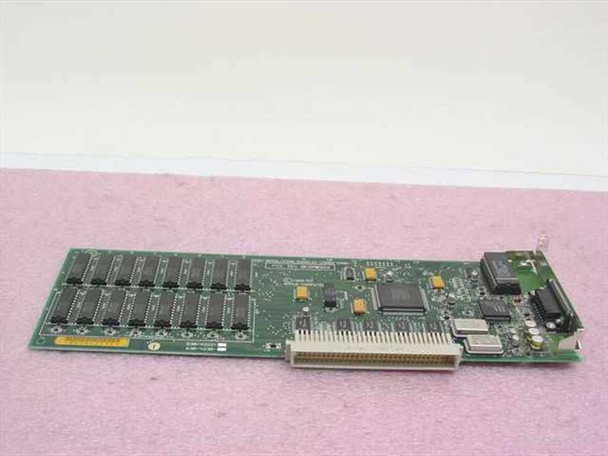

The Apple 820-0185-08 is an Apple-manufactured High Resolution NuBus video card designed for the Macintosh II family of computers. Built in 1988/89 per the PCB silkscreen, this card expands the display capabilities of NuBus-equipped Macs, providing a high-resolution analog video output via the DB-15 connector standard on Macintosh monitors of that era.
Specifications & What's Included
- Manufacturer: Apple Computer
- Part Number: 820-0185-08
- Bus Interface: NuBus (full-length NuBus expansion card)
- Video Output: DB-15 (HD-15) analog video connector
- Resolution: High Resolution

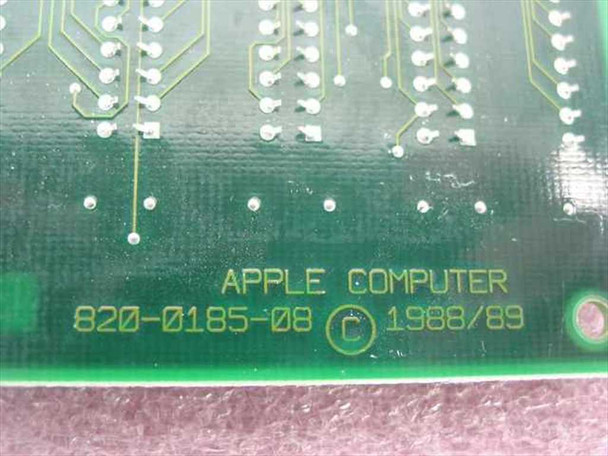

- PCB Date Code: © 1988/89 (Apple Computer silkscreen)
- RAM: Multiple DRAM chips visible on PCB (array of DIP and SOJ packages)
- Controller/main IC visible on PCB (markings not fully legible in photos)
- Card only — no accessories, cables, or documentation included
Applications
NuBus was the proprietary expansion bus Apple introduced with the Macintosh II in 1987, and it remained the standard for high-end Mac expansion through the early 1990s. Cards like the 820-0185-08 were used in systems such as the Macintosh II, IIx, IIcx, IIci, IIfx, and Quadra 700/900/950 to drive high-resolution external displays — including Apple's own 13-inch and larger monitors of the era. Apple produced several NuBus video cards during this period to support different display configurations and resolutions as the professional Mac market demanded more screen real estate for desktop publishing, graphic design, and scientific applications. Today these cards are sought by vintage Mac enthusiasts and collectors restoring Macintosh II-era systems to working condition, as NuBus video cards are increasingly difficult to source.
This Apple 820-0185-08 Mac High Resolution NuBus Video Card has been tested and is in good working condition. The PCB is clean and free of visible damage. The DB-15 video output connector and NuBus edge connector both appear in good shape with no bent pins or corrosion noted in the photos. There is light handling wear consistent with a card that was previously installed in a system. Please review our photos and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Apple |
Model: |
820-0185-08 |
MPN: |
820-0185-08 |
Type: |
NuBus Video / Graphics Card |
SKU: |
23539 |
Bus Interface: |
NuBus |
Compatible With: |
Apple Macintosh II series with NuBus slots |
Output Connector: |
DB-15 (HD-15) analog video |
Resolution: |
High Resolution |
Manufacture Date: |
1988/89 (per PCB silkscreen) |
Country/Region of Manufacture: |
United States |
Form Factor: |
NuBus Expansion Card |
Seller Notes: |
Card only, no accessories. Tested and in good working condition. |
Condition Notes: |
This Apple 820-0185-08 Mac NuBus High Resolution Video Card has been tested and is in good working condition. PCB is clean; DB-15 and NuBus connectors look good. Light handling wear typical of a used card. |
