Apple Mac LC 630-0309 AP1455-03 System Board Motherboard 1990 For Parts

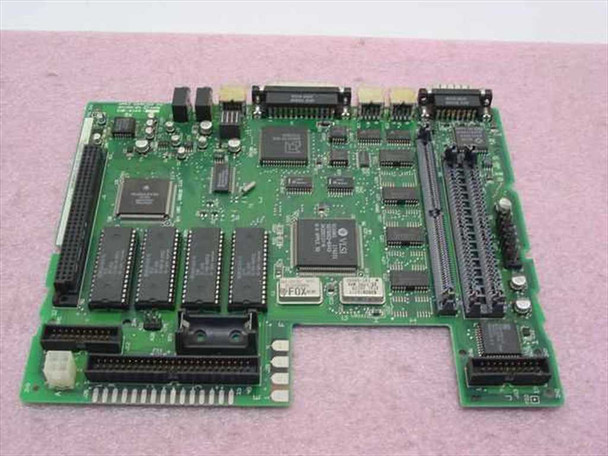

This is an original Apple Mac LC system board (logic board), part number 630-0309, assembly number AP1455-03, dated 1990. The Mac LC's main system board houses the Motorola 68020 processor, custom Apple ASICs, RAM expansion slots, ROM slots, and the full complement of I/O connectors for the compact Mac LC desktop. This board is being sold untested, strictly AS-IS for parts or repair — it has not been powered up at our facility and no functionality can be confirmed.
Specifications & What's Included
- Make: Apple Computer Inc.
- Compatible System: Apple Mac LC Desktop Computer
- Part Number: 630-0309
- Assembly Number: AP1455-03
- Board Date: © 1990
- CPU: Motorola 68020 (onboard)
- RAM Slots: Multiple SIMM sockets visible on board
- ROM Slots: Present on board
- Rear I/O Connectors: Two DB-25 ports (SCSI and serial), two ADB Mini-DIN-4 ports, 3.5mm audio jack
- Internal Connectors: SCSI header, floppy/drive header, expansion slot connector
- Form Factor: Proprietary Apple Mac LC layout
- Included: Board only — no RAM, ROM, cables, or other components
- Condition: Untested — sold AS-IS for parts or repair
Applications
The Apple Mac LC (Low-Cost Color) was introduced in October 1990 as Apple's first affordable color-capable Macintosh desktop, aimed at the education and home markets. It used a 16 MHz Motorola 68020 processor and was notable for its distinctive low-profile
This Apple Mac LC System Board (630-0309 / AP1455-03) is untested and sold strictly AS-IS for parts or repair. It has not been powered up or tested at our facility and comes with no additional components — board only. The board dates from 1990 and shows typical storage and handling wear; no obvious physical damage is apparent in our photos, but functionality cannot be confirmed. Please view our full photo set and contact us with any questions.
Warranty Information
Additional Information
Brand: |
Apple |
Model: |
Mac LC |
MPN: |
630-0309 |
Secondary Model: |
AP1455-03 |
SKU: |
23444 |
Type: |
Vintage Desktop Motherboard / System Board |
Compatible With: |
Apple Mac LC Desktop Computer |
Form Factor: |
Proprietary Apple Mac LC |
Year / Era: |
1990 |
Processor Socket: |
Motorola 68020 (onboard) |
Seller Notes: |
Board only — no additional components included. Untested, sold AS-IS. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Apple Mac LC System Board 630-0309 / AP1455-03 (1990) is untested and sold AS-IS for parts or repair. Board only — no additional components included. Not powered or tested at our facility. |
