Apple AA11040B Power Supply Apple II IIe 606-5001 Astec 115V AC 50/60Hz

Apple AA11040B Power Supply Apple II IIe 606-5001 Astec 115V AC 50/60Hz

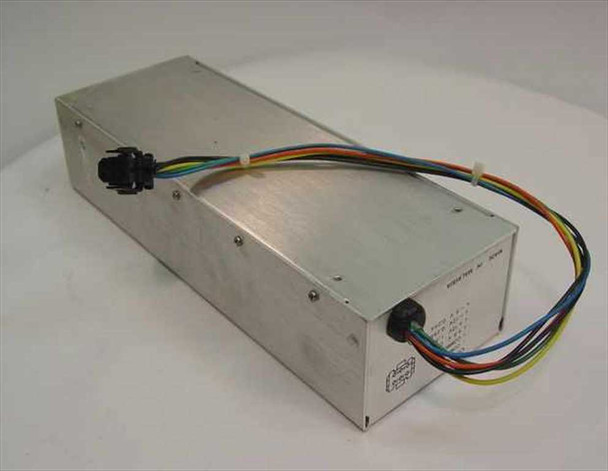

The Apple AA11040B is the original internal power supply unit for the Apple II and Apple IIe personal computers. Manufactured by Astec Components Ltd. under Apple part number 606-5001, this compact linear/switching supply provides the regulated multi-rail DC voltages required to power the Apple II logic board, expansion cards, and peripherals. The unit features a brushed aluminum enclosure with an integrated ON/OFF rocker switch and a standard IEC C14 AC inlet.

Specifications & What's Included

• Brand: Apple Computer Inc.
• Model: AA11040B
• Apple Part Number: 606-5001
• Manufacturer: Astec Components Ltd.
• Input Voltage: 115VAC
• Input Frequency: 50/60Hz
• Input Current: 1A
• Input Connector: IEC C14 (standard 3-pin AC inlet)
• Output Rail 1: +5V @ 2.5A
• Output Rail 2: +12V @ 1.5A
• Output Rail 3: −12V @ 0.25A
• Output Rail 4: −5V @ 0.25A
• Output Connector: 6-pin proprietary DIN-style connector (pins 1–2 common/ground, pins 3–6 DC outputs)
• Power Switch: Integrated rocker-style ON/OFF switch on input face
• Country of Manufacture: Malaysia
• Certifications: UL Listed
• What's Included: Power supply unit only — no cables or accessories

Applications

The AA11040B is the stock power supply for the Apple II and Apple IIe, two of the most influential personal computers of the late 1970s and early 1980s. The Apple II, introduced in 1977, was one of the first mass-market microcomputers to ship fully assembled with a color display output and an expansion slot architecture; the IIe followed in 1983 with an enhanced keyboard and greater memory capacity. This power supply feeds the main logic board and up to seven expansion cards in the Apple II's internal slots, making a functional PSU critical for any working system. Today these machines are maintained by vintage computing hobbyists, collectors, and educational retrocomputing programs — a working original power supply is one of the more sought-after replacement parts, as original units are aging and failures are common. The AA11040B is a direct, drop-in replacement for a failed unit in any standard Apple II or IIe case.
