Description
Apple 820-0207-A EtherTalk NuBus Network Card 2680-07 Rev K Mac II Vintage BNC

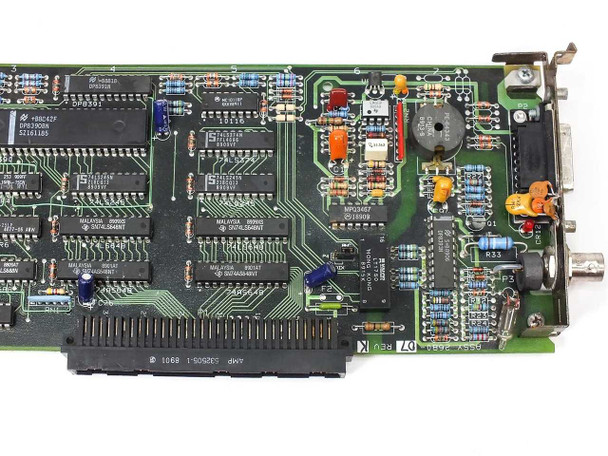

The Apple 820-0207-A is a NuBus expansion card that adds EtherTalk networking capability to Macintosh II-family computers. It connects the Mac to both ThinNet (10BASE2) coaxial networks via its BNC port and thicker Ethernet segments or AUI devices via the DB-15 port, allowing the machine to participate in AppleTalk-over-Ethernet networks. The board is marked Rev K and carries Apple Computer's 1987 copyright date on the PCB silkscreen.
Specifications & What's Included
- Part Number: 820-0207-A
- Secondary Assembly Number: 2680-07
- Revision: K
- Bus Interface: NuBus (96-pin AMP S32505-1 edge connector)
- Network Type: EtherTalk — AppleTalk protocol over Ethernet
- External Port 1: BNC (10BASE2 / ThinNet coaxial)
- External Port 2: DB-15 (AUI / 10BASE5)
- Oscillator: 20 MHz (T2009C-70/1000, TIE Japan)
- SRAM: Hyundai HY6264LP-12 × 2 (8K×8 CMOS SRAM)
- Logic ICs: Multiple 74ALS- and 74LS-series devices (74LS574, 74ALS08, SN74ALS640N, etc.)

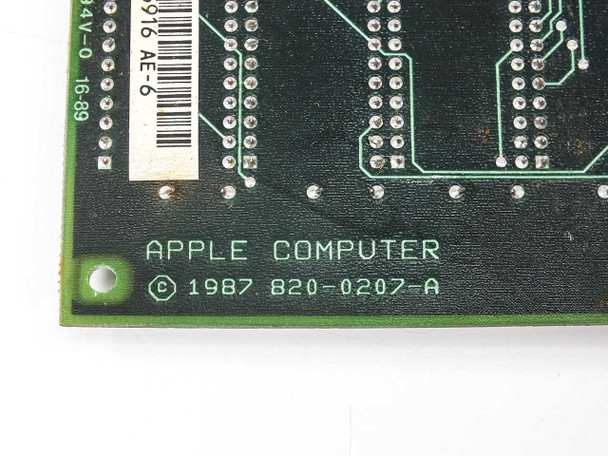

- PCB Copyright: Apple Computer © 1987
- Form Factor: NuBus full-length card
- Dimensions: approximately 12.5″ × 4.5″ × 1″
- Included: card only — no cables, mounting hardware, or documentation
Applications
The Apple 820-0207-A EtherTalk card was designed for the NuBus expansion slots found in the Macintosh II family, including the Mac II, IIx, IIcx, IIci, IIfx, and IIsi (with a NuBus adapter). It was one of Apple's own first-party solutions for connecting these machines to Ethernet in an era when LocalTalk serial networking was standard on the Mac but too slow for larger workgroups. EtherTalk allowed Macs to share files and printers with other AppleTalk-capable systems over standard 10 Mbps Ethernet cabling — both the thin coaxial (BNC/10BASE2) and the original thick Ethernet (AUI/10BASE5) topologies that were common in late-1980s and early-1990s corporate and university environments. Today these cards are sought by vintage Mac collectors and hobbyists running period-correct Macintosh II setups or maintaining classic Mac networks using System 6/7 and AppleShare.
This Apple 820-0207-A EtherTalk NuBus Network Card has been inspected and appears to be in good overall condition. The PCB and components look clean with no obvious damage; the metal bracket shows noticeable grime, oxidation, and surface wear, as seen in the photos. The card has not been powered up or tested at our facility. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Apple |
Model: |
820-0207-A |
MPN: |
820-0207-A |
Secondary Model: |
2680-07 |
SKU: |
49858 |
Type: |
EtherTalk NuBus Network Card |
Revision: |
Rev K |
Compatible With: |
Apple Macintosh II Series (NuBus slot) |
Compatible With 2: |
Mac II, IIx, IIcx, IIci, IIfx, IIsi |
Bus Interface: |
NuBus |
Network Protocol: |
EtherTalk (AppleTalk over Ethernet) |
Network Standard: |
10BASE2 (BNC ThinNet), 10BASE5 (AUI DB-15) |
Connector Type 1: |
BNC (10BASE2 / ThinNet) |
Connector Type 2: |
DB-15 (AUI / 10BASE5) |
Edge Connector: |
NuBus 96-pin (AMP S32505-1) |
Oscillator / Clock: |
20MHz (T2009C-70/1000, TIE Japan) |
Memory Chips: |
Hyundai HY6264LP-12 SRAM x2 (8Kx8) |
PCB Copyright Date: |
1987 |
Form Factor: |
NuBus Full-Length Card |
Dimensions: |
12.5" x 4.5" x 1" |
Country/Region of Manufacture: |
United States (PCB); components Malaysia/Korea/Japan |
Seller Notes: |
Card only — no cables, brackets, or documentation included. |
Condition Notes: |
This Apple 820-0207-A EtherTalk NuBus Network Card has been inspected and is in good condition. The bracket shows grime and surface wear. Not tested at our facility. Please view photos and contact us with questions. |
