API Analytab 6170-01 UniScept Plus Autoreader Antimicrobial Susceptibility System

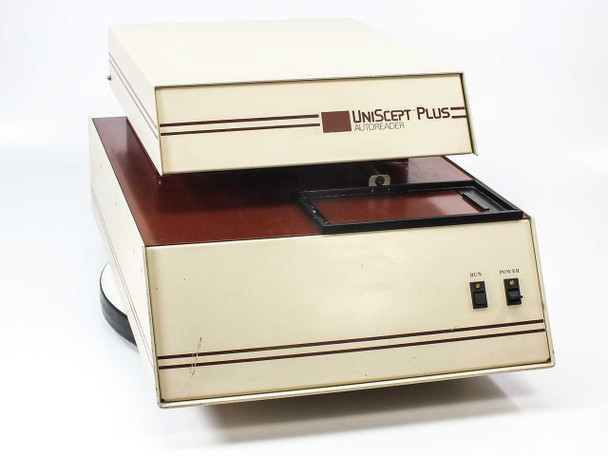

The API UniScept Plus 6170-01 is a benchtop automated reader designed to read and interpret antimicrobial susceptibility test (AST) panels used in clinical microbiology. Manufactured by Analytab Products, a division of Sherwood Medical, the UniScept Plus uses a photometric optical system to scan test panel results and transmit data via an RS-232-C serial interface to a host computer or laboratory information system (LIS). The unit features a hinged lid with an internal optical reader assembly, front-panel RUN and POWER indicator toggle switches, and a rear IEC power inlet with fuse holder.
Specifications & What's Included
- Model: UniScept Plus Autoreader
- Product Number: 6170-01
- Manufacturer: Analytab Products, Division of Sherwood Medical
- Input Voltage: 110V AC (2A) / 220V AC (1A), selectable
- Frequency: 50/60 Hz
- Fuse: SLO-BLO type

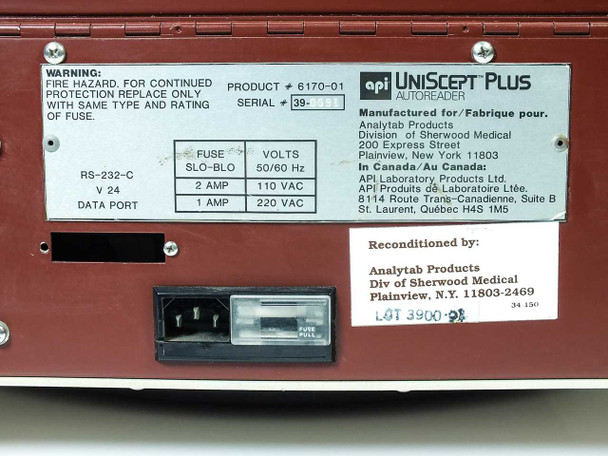

- Data Interface: RS-232-C (V.24) rear data port

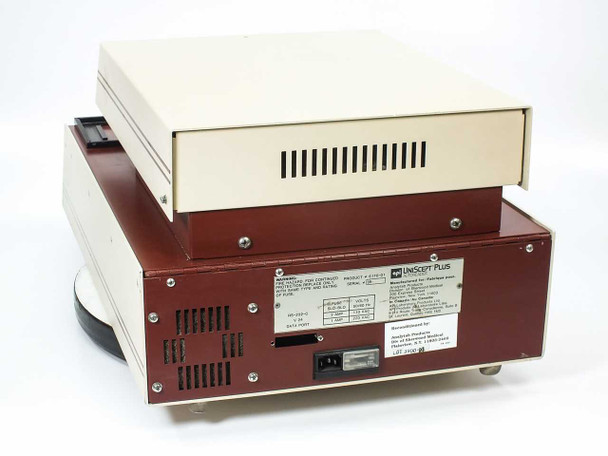

- Power Connection: IEC inlet (rear panel)

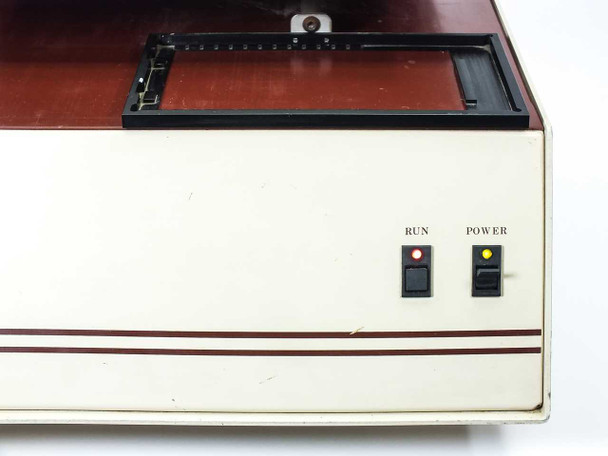

- Front Panel Controls: RUN (red indicator) and POWER (yellow indicator) toggle switches

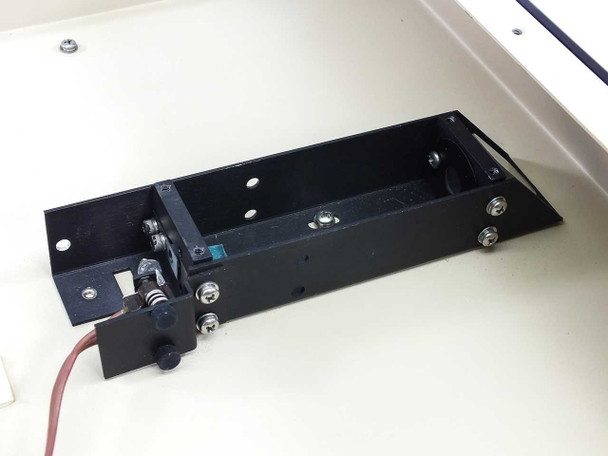

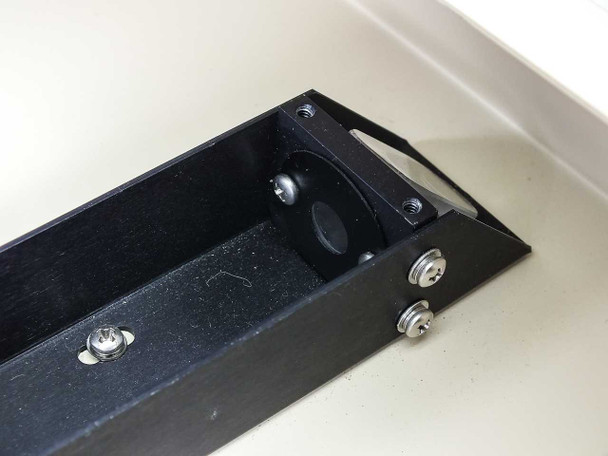

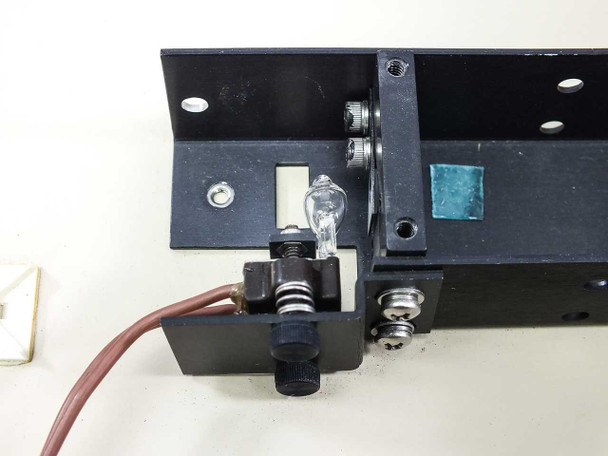

- Internal optical lamp assembly and reader tray (visible and intact in photos)
- Overall Dimensions: 25.5 x 16.25 x 10.75 in (L x W x H)
- Unit only — no test panels, software, or interface cables included
Applications
The UniScept Plus Autoreader was developed for use in hospital and commercial clinical microbiology laboratories as part of the API system for antimicrobial susceptibility testing. In AST workflows, a clinical specimen is inoculated into a multi-well test panel containing antibiotics at defined concentrations; the panel is incubated and then placed into the autoreader, which optically reads each well's turbidity or color change to determine minimum inhibitory concentrations (MICs) and susceptibility interpretations. Results were transmitted via the RS-232-C port to a laboratory computer running Analytab's accompanying software, which generated printed susceptibility reports used by clinicians to guide antibiotic selection. The UniScept Plus was part of a broader era of semi-automated AST systems in the 1980s and early 1990s — a transitional generation between fully manual panel reading and the fully automated walk-away systems (such as the VITEK or MicroScan WalkAway) that followed. Units like this are still sought by labs needing to support legacy API panel workflows, for parts, or for educational and museum purposes in the history of clinical microbiology automation.

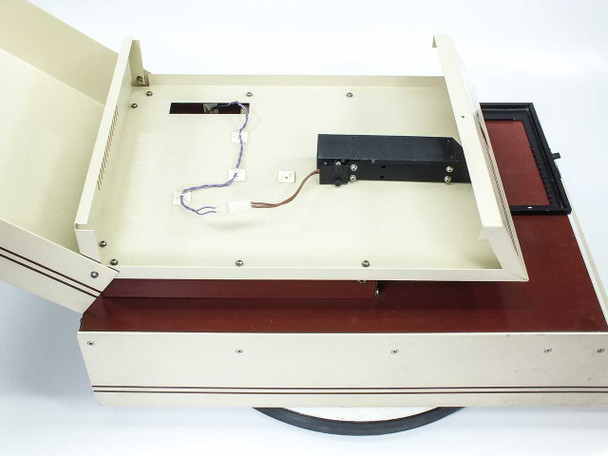

This API Analytab UniScept Plus 6170-01 Antimicrobial Susceptibility Autoreader has been inspected and is in good used condition. It was pulled from a working clinical environment where it was actively in use and functional. The cream and burgundy cabinet shows light surface scuffs and age-related wear consistent with lab use — nothing structural. The RUN and POWER toggle switches on the front panel are present and intact. The rear panel RS-232-C data port, IEC power inlet, and fuse holder are all present and show no visible damage. Internal components — the optical lamp assembly, reader tray, and wiring harness — are visible in the photos and appear complete and undamaged. This item is large and heavy (approximately 63 lbs); it may require freight shipping. Please contact us for a shipping quote or to arrange local pickup or a facility viewing. Please view our photo set and contact us if you have any questions.
Thanks for your interest. Recycled Goods Inc., Ventura, CA.
FDA Regulation and Certification: The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not purchase this item unless you are an authorized purchaser. If the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping.
Upon receipt, it is the BUYER'S responsibility to have this instrument checked and certified for use by a qualified Technician prior to placing it into use or service.
Warranty Information
Additional Information
Brand: |
Analytab Products (API) |
Model: |
UniScept Plus |
MPN: |
6170-01 |
Type: |
Antimicrobial Susceptibility Autoreader |
SKU: |
49523 |
Manufacturer: |
Analytab Products, Division of Sherwood Medical |
Condition: |
Used – Pulled from Working Environment |
Power Requirements: |
110V AC / 2A or 220V AC / 1A, 50/60Hz |
Voltage: |
110 VAC / 220 VAC (switchable) |
Current Rating: |
2A @ 110V; 1A @ 220V |
Frequency: |
50/60 Hz |
Interface Type: |
RS-232-C (V.24 Data Port) |
Data Port: |
RS-232-C V.24 |
Fuse Type: |
SLO-BLO |
Application: |
Clinical microbiology, antibiotic susceptibility testing |
Form Factor: |
Benchtop |
Dimensions: |
25.5 x 16.25 x 10.75 in (L x W x H) |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Unit only; pulled from a working clinical environment. Contact us for freight quote. |
Condition Notes: |
API UniScept Plus 6170-01 Autoreader inspected and in good used condition. Pulled from a working clinical environment where it was in active use and functional. Light cosmetic wear. RS-232-C port and power inlet intact. Freight may be required. |
