APC UXBP24 24VDC Ultra Battery Pack UPS External Battery Module Grey
The APC UXBP24 is an external 24VDC Ultra Battery Pack designed to expand the runtime of compatible APC Uninterruptible Power Supply (UPS) systems. It connects to the host UPS via a color-coded locking connector — grey on the UXBP24 — ensuring correct voltage pairing. The self-contained enclosure houses sealed lead-acid batteries in a large floor-standing chassis suitable for data center and server room deployments.
Specifications & What's Included
- Model: APC UXBP24
- Voltage: 24VDC
- Connector color: Grey (per APC's color-coding scheme for 24VDC battery packs)
- Enclosure: Grey steel, large floor-standing/pallet-shipped chassis with ventilation slots on sides
- Connection cable: Grey dual-position locking connector, attached to rear panel

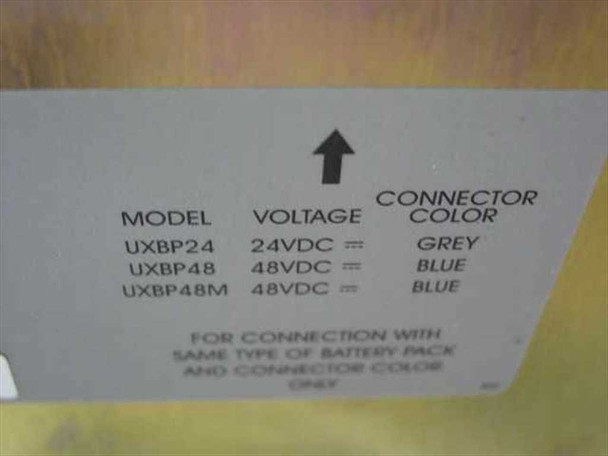

- Compatible voltage/connector pairings (per label): UXBP24 = 24VDC Grey; UXBP48 = 48VDC Blue; UXBP48M = 48VDC Blue
- Includes: Battery pack unit with attached grey connector cable, ships on wooden pallet
- Internal battery capacity: not tested — buyers should verify or replace cells upon installation
Applications
The APC UXBP24 is used with APC Smart-UPS XL and similar APC UPS models that support external battery pack expansion via a 24VDC connection. It is designed to be daisy-chained or connected in parallel with same-voltage, same-connector-color battery packs to extend UPS runtime beyond what the internal batteries alone provide. These external battery packs are standard in data centers, server rooms, network closets, and any facility where extended backup power is critical during outages. APC's color-coded connector system prevents accidental mismatched connections between incompatible voltage packs — the grey connector is exclusive to 24VDC configurations. Units like the UXBP24 remain in active use in facilities running legacy APC Smart-UPS XL infrastructure.
This APC UXBP24 24VDC Ultra Battery Pack has been inspected and appears to be in good used condition. The grey enclosure shows no significant cosmetic damage — no dents, deep scratches, or corrosion visible. The grey connector cable is attached and intact. The unit was pulled from a working environment and sits on the original shipping pallet. Note that battery capacity on used battery packs is not tested or guaranteed; buyers should plan to test or replace the internal cells upon installation. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
APC |
Model: |
UXBP24 |
MPN: |
UXBP24 |
Type: |
External UPS Battery Pack / Battery Expansion Module |
SKU: |
22144 |
Voltage: |
24VDC |
Connector Color: |
Grey |
Compatible With: |
APC UPS systems requiring 24VDC external battery packs |
Form Factor: |
External / Floor-Standing |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Battery pack only — includes attached grey connector cable. Ships on pallet. |
Condition Notes: |
This APC UXBP24 24VDC Ultra Battery Pack has been inspected and is in good used cosmetic condition. Grey enclosure shows no significant damage; grey connector cable is intact. Battery capacity not tested — plan to verify or replace cells. |
