Description
APC SU48R3XLBP Smart-UPS XL 48V RM 3U External Battery Pack Enclosure RBC27
The APC SU48R3XLBP is a 48V, 3U rack-mount external battery enclosure designed to extend the runtime of compatible APC Smart-UPS XL uninterruptible power supplies. This listing is for the enclosure and battery cartridge frames only — batteries are NOT included. The enclosure holds two battery cartridges, each accepting 8 x 12V DC sealed lead-acid batteries (RBC27 type), for a total of 16 batteries required to make the unit operational.
Specifications & What's Included
- Model: APC SU48R3XLBP
- Compatible Battery Type: RBC27
- System Voltage: 48V DC
- Individual Battery Voltage: 12V DC each
- Total Batteries Required: 16 (8 per cartridge, 2 cartridges)
- Form Factor: Rack Mount, 3U
- Dimensions: 25.70" W x 17.50" D x 5.25" H

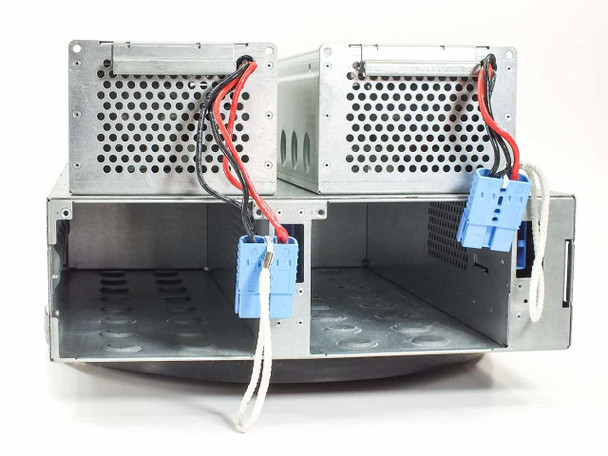

- Connector: Blue Anderson SB series high-current battery connectors

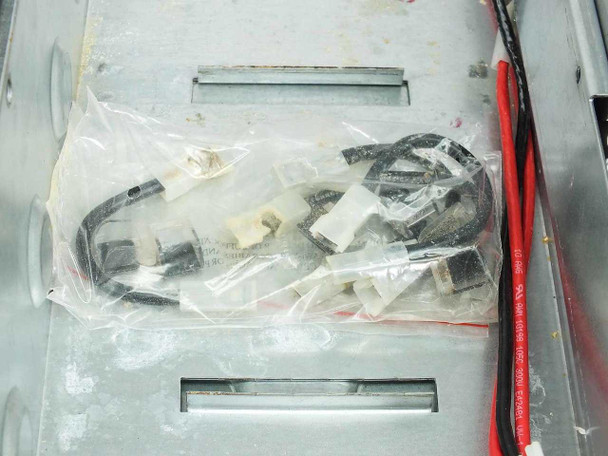

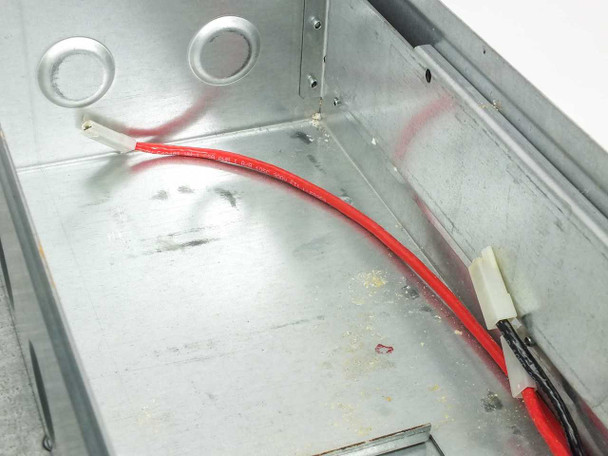

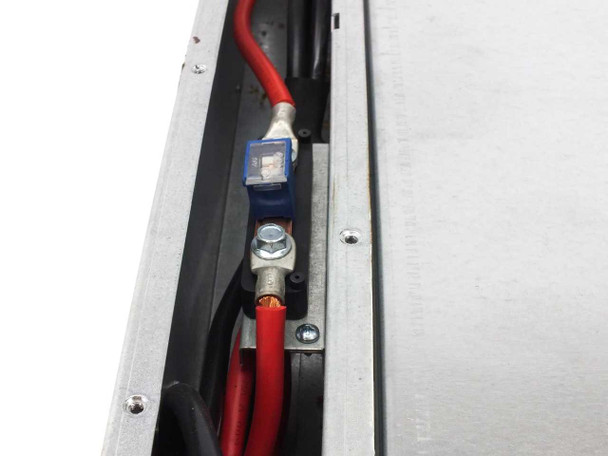

- Internal wiring harnesses and bus bar terminals intact

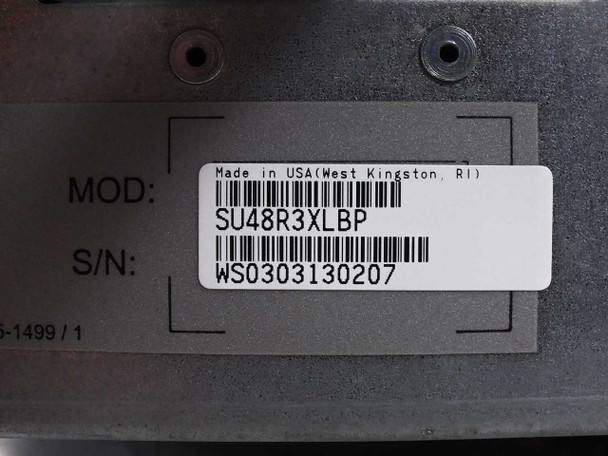

- Country of Manufacture: United States (West Kingston, RI)

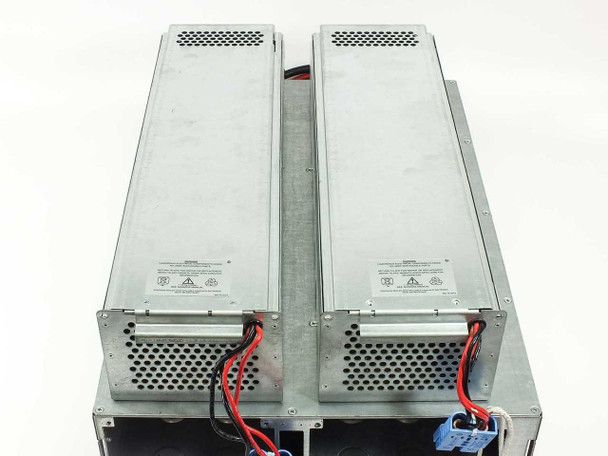

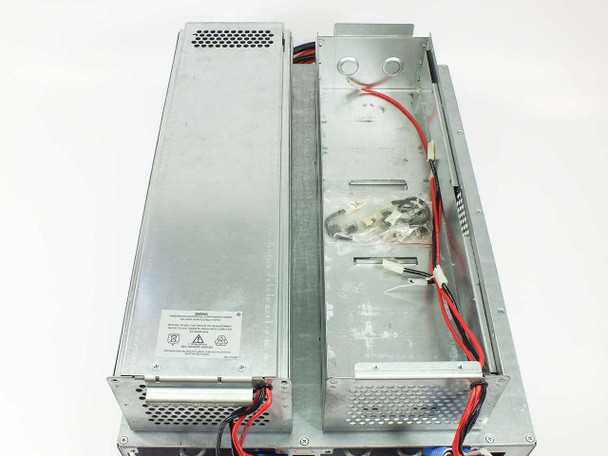

- Included: Enclosure chassis and two battery cartridge frames
- NOT included: Batteries — must be sourced separately (RBC27 type)
Applications
The SU48R3XLBP is the rackmount external battery pack for the APC Smart-UPS XL series of UPS systems, which are commonly deployed in server rooms, data centers, and network closets where extended runtime during a power outage is critical. The Smart-UPS XL line accepts one or more external battery packs to significantly increase backup time beyond what the internal battery alone provides, allowing equipment to remain online through longer outages or to execute a graceful, controlled shutdown. The 48V architecture and proprietary RBC27 cartridge format are specific to APC's Smart-UPS XL platform — the enclosure uses APC's modular battery cartridge system, meaning cells can be replaced without replacing the entire enclosure. This style of hot-swap-capable, rack-integrated battery extension was widely adopted in enterprise IT infrastructure from the late 1990s through the 2000s and the enclosures remain in use wherever legacy Smart-UPS XL units are still in service.
This APC SU48R3XLBP Smart-UPS XL 48V 3U External Battery Pack Enclosure has been visually inspected and appears to be in good cosmetic condition. The enclosure and battery cartridge frames are present; however, batteries are NOT included — this unit requires 16 x 12V DC RBC27-type batteries (8 per cartridge) which must be sourced separately. The unit has not been powered or tested, and is sold strictly as-is with no functionality guarantee. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
APC |
Model: |
SU48R3XLBP |
MPN: |
SU48R3XLBP |
Type: |
External UPS Battery Pack Enclosure |
SKU: |
48598 |
Compatible With: |
APC Smart-UPS XL Series UPS |
Battery Type Required: |
RBC27 (16x 12V DC, 8 per cartridge) |
Voltage: |
48V DC |
Battery Voltage (Each): |
12V DC |
Number of Batteries Required: |
16 |
Batteries per Cartridge: |
8 |
Form Factor: |
Rack Mount, 3U |
Rack Units: |
3U |
Dimensions: |
25.70" x 17.50" x 5.25" |
Connector Type: |
Anderson SB Series (blue high-current) |
Country/Region of Manufacture: |
United States (West Kingston, RI) |
Seller Notes: |
Enclosure and cartridge frames only — batteries are NOT included. No cables. |
Condition Notes: |
APC SU48R3XLBP Smart-UPS XL 48V 3U battery enclosure. Inspected, good cosmetic condition. Batteries NOT included (requires 16x 12V RBC27). Not tested. Sold as-is, no functionality guarantee. |
California Prop 65 Warning: |
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov |
