APC SU24XLBP 24V External Battery Pack for Smart-UPS 1000VA No Batteries

APC SU24XLBP 24V External Battery Pack for Smart-UPS 1000VA No Batteries

The APC SU24XLBP is an external battery enclosure designed to expand the runtime of compatible APC Smart-UPS XL systems. The enclosure, internal wiring harness, and grey 24VDC Anderson-style connector are all intact and functional. The original batteries have been removed and disposed of — this unit ships as an enclosure only and does not include batteries.

Specifications & What's Included

• Model: APC SU24XLBP
• Voltage: 24VDC

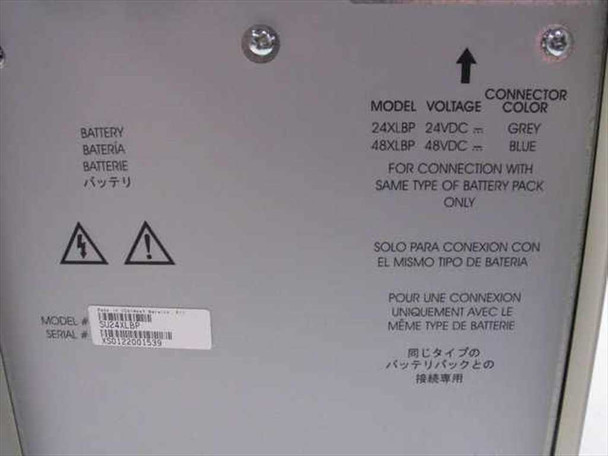

• Connector color: Grey (24VDC designation per APC labeling)

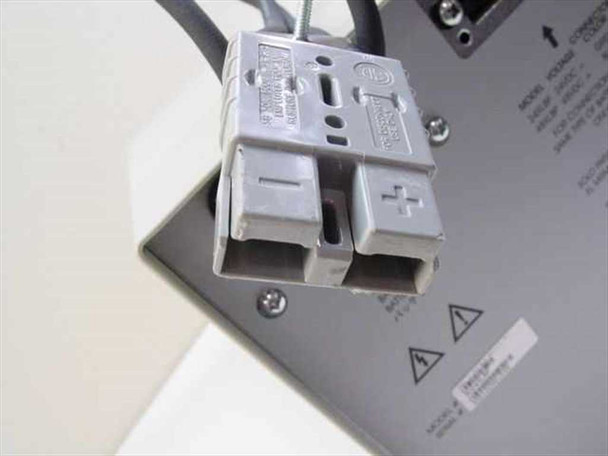

• Connector type: Anderson-style grey DC power connector
• Compatible with: APC Smart-UPS XL 1000VA series (same battery pack connection type only)

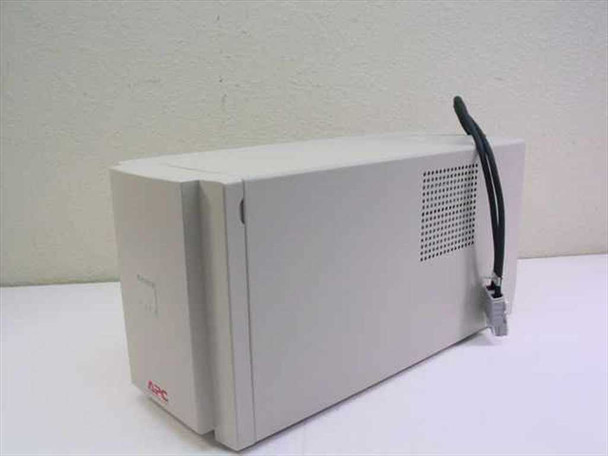

• Form factor: External tower enclosure

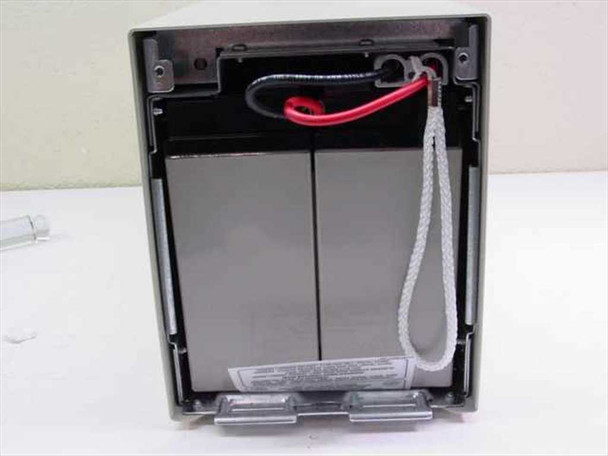

• Battery bays: Two battery positions with internal interconnect wiring (red/black leads and pull strap present)

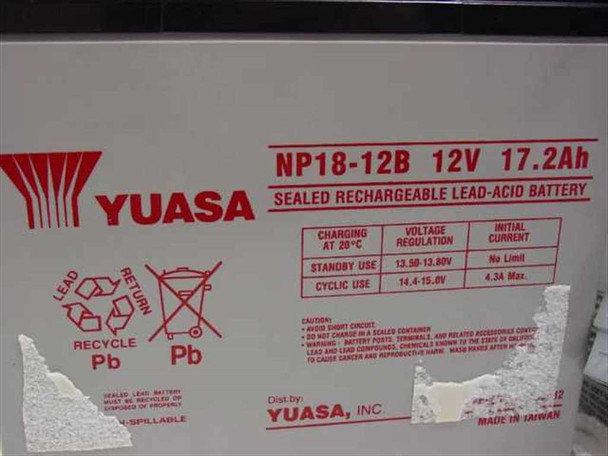

• Original removed batteries (not included): Yuasa NP18-12B, 12V 17.2Ah sealed lead-acid — shown in photos for reference only

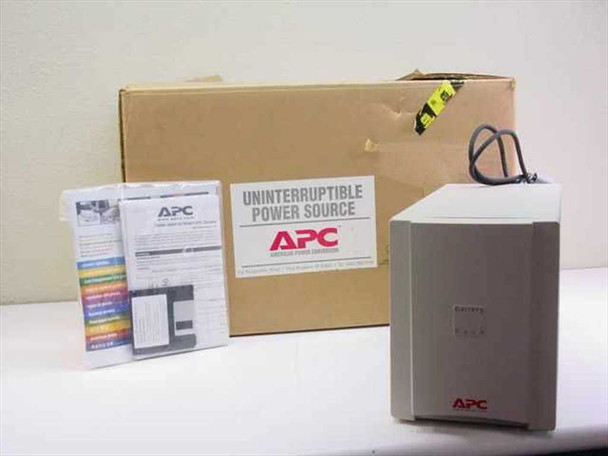

• Includes: Original APC box and product documentation
• Does NOT include batteries

Applications

APC Smart-UPS XL external battery packs were designed to extend UPS runtime well beyond what the internal battery alone provides — a common requirement in data centers, server rooms, network closets, and any environment where uptime is critical during extended power outages. The SU24XLBP connects to compatible Smart-UPS XL units via the grey 24VDC Anderson connector and adds a second battery string in parallel with the UPS's internal pack. This type of enclosure is still widely sought after for extending aging Smart-UPS XL systems, and the enclosure itself has a long service life — owners routinely replace the battery cells multiple times over the life of the chassis. Standard replacement batteries for this enclosure are 12V 17–18Ah sealed lead-acid cells (two required in series for 24VDC total), which are widely available from battery suppliers.
