APC MXA104 External PDU Matrix-UPS 208V 30A 4x L6-30R Receptacles 4ft Cord

APC MXA104 External PDU Matrix-UPS 208V 30A 4x L6-30R Receptacles 4ft Cord

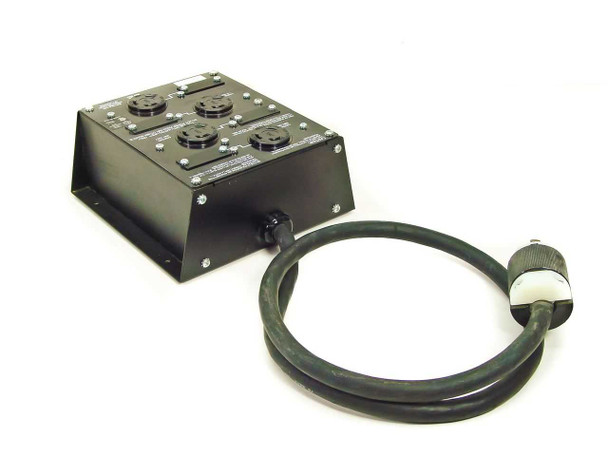

The APC MXA104 is an external power distribution unit (PDU) designed exclusively for use with APC Matrix-UPS systems. It connects to a Matrix-UPS output to provide four always-on L6-30R receptacles for distributing 208V power to computer room loads. It cannot be plugged into a standard wall outlet — it is a Matrix-UPS-dedicated accessory only.

Specifications & What's Included

• Model: APC MXA104
• Type: External Power Distribution Unit (PDU)
• Input Voltage: 208V AC
• Output Voltage: 208V AC
• Maximum Current Draw: 30A per phase
• Number of Outlets: 4 x NEMA L6-30R (always on)

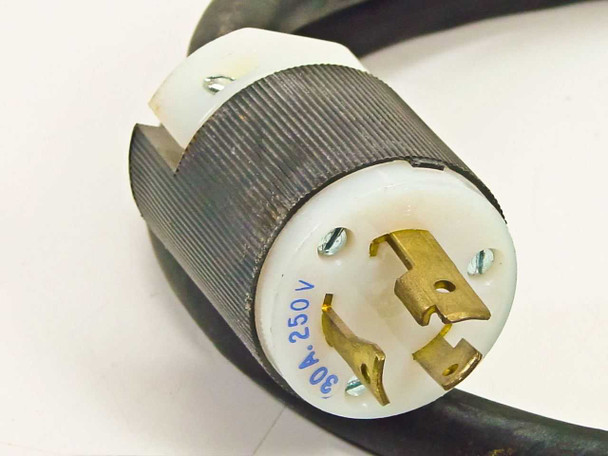

• Input Plug: NEMA L6-30P, 30A 250V twist-lock
• Cord Length: 4 ft
• Compatible With: APC Matrix-UPS systems only — not for use with wall outlets or other UPS models
• Suitable for computer room applications (per unit labeling)

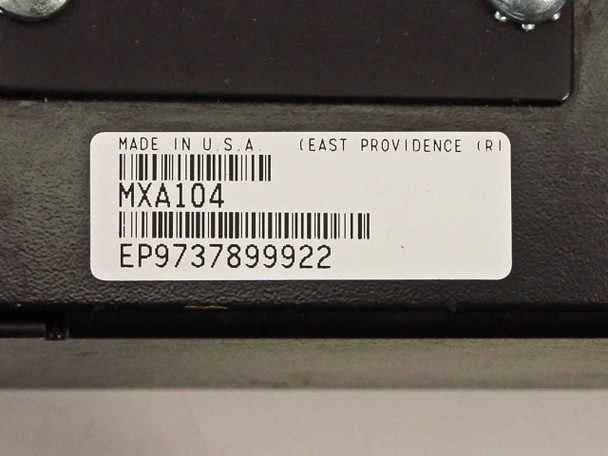

• Made in USA — East Providence, RI

Applications

The MXA104 was designed to extend the output capacity of APC Matrix-UPS systems in data center and computer room environments. Matrix-UPS installations commonly used multiple external PDUs like the MXA104 to distribute protected 208V power to servers, storage arrays, network switches, and other critical equipment requiring L6-30R connections. The always-on receptacles mean connected equipment receives power continuously as long as the Matrix-UPS is online, without switching delays. This type of external PDU remains useful today for facilities still running Matrix-UPS infrastructure or for any application needing a dedicated 208V 30A distribution box with L6-30R outlets fed from a compatible UPS source.
