Description
APC Back-UPS 250 Uninterruptible Power Supply 250VA 170W 120V 2-Outlet UPS
The APC Back-UPS 250 is a standby (offline) uninterruptible power supply designed to protect desktop computers and peripherals from power outages, voltage sags, and surges. When utility power fails or drops below acceptable levels, the Back-UPS 250 automatically switches to battery power within milliseconds, keeping connected equipment running. It accepts 120V AC input and delivers up to 250VA / 170W of protected output power through two NEMA 5-15R outlets.
Specifications & What's Included
- Manufacturer: APC (American Power Conversion)
- Model: Back-UPS 250
- VA Rating: 250 VA
- Maximum Output Power: 170W
- Input: 120V AC, 60Hz, 3A
- Output: 120V AC, 60Hz, 2A max
- Output Outlets: 2 × NEMA 5-15R

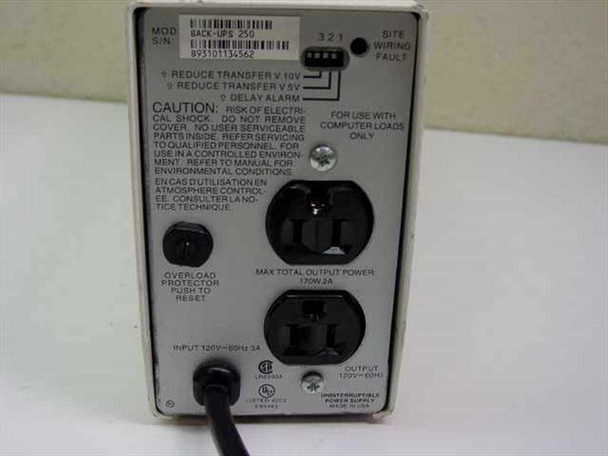

- Overload Protection: Push-to-reset overload protector button on rear panel
- Site Wiring Fault Indicator: Yes — LED indicator on rear panel
- Transfer Voltage Adjustment: DIP switches for Reduce Transfer V 10V / 5V and Delay Alarm settings
- Battery Requirement: Two (2) 6V 4.2Ah sealed lead-acid (SLA) batteries (e.g. CSB GP 642 or equivalent)
- Form Factor: Desktop
- UL Listed
- Includes: Unit and AC power cord
- Batteries NOT included
Applications
The APC Back-UPS 250 was designed in the early-to-mid 1990s for desktop computer protection — a period when brief power outages or voltage sags could corrupt data on spinning hard drives and cause costly downtime. Standby UPS units like this one remain useful today for small office and home setups, protecting a desktop PC, monitor, external drive, or networking device during power events. The Back-UPS line was APC's entry-level consumer and small-business offering, and many units from this era are still put back into service after a fresh set of batteries is installed. Compatible SLA replacement batteries (6V 4.2Ah, such as the CSB GP 642 or Yuasa NP4-6 equivalent) are widely available and inexpensive, making this an economical option for light-duty backup power needs.

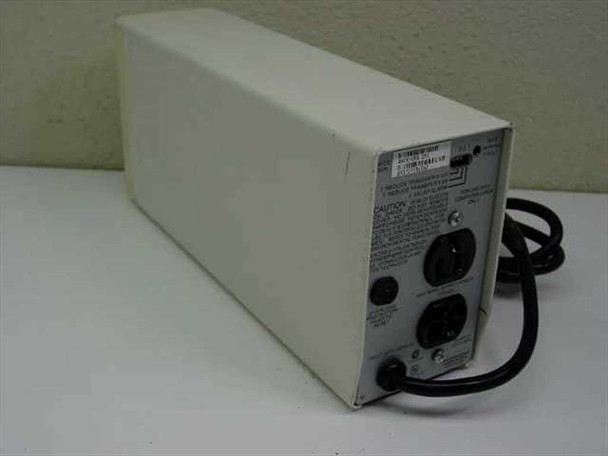

This APC Back-UPS 250 Uninterruptible Power Supply is in used condition and has not been powered up or tested at our facility. It was pulled from a working environment where it was previously in service. The cream plastic housing shows light yellowing and minor surface scuffs typical of age, but there is no cracking or significant cosmetic damage visible. The AC power cord is included. Batteries are NOT included — the unit requires two 6V 4.2Ah sealed lead-acid batteries (CSB GP 642 or equivalent). Please review all photos and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
APC (American Power Conversion) |
Model: |
Back-UPS 250 |
MPN: |
BACK-UPS 250 |
SKU: |
33699 |
Type: |
Standby / Offline UPS (Uninterruptible Power Supply) |
VA Rating: |
250 VA |
Maximum Output Power: |
170W |
Input Voltage: |
120V AC, 60Hz |
Output Voltage: |
120V AC, 60Hz |
Input Current: |
3A |
Output Current (Max): |
2A |
Number of Output Outlets: |
2 |
Outlet Type: |
NEMA 5-15R |
Battery Type Required: |
Two (2) 6V 4.2Ah sealed lead-acid (SLA) |
Compatible Battery: |
CSB GP 642 or equivalent 6V 4.2Ah SLA |
Overload Protection: |
Yes — push-to-reset overload protector |
Site Wiring Fault Indicator: |
Yes |
Form Factor: |
Desktop |
Power Requirements: |
120V AC, 60Hz, 3A |
Country/Region of Manufacture: |
United States |
Batteries Included: |
No — batteries not included |
Seller Notes: |
Unit only with AC power cord. Batteries not included. Requires two 6V 4.2Ah SLA batteries. |
Condition Notes: |
This APC Back-UPS 250 UPS has not been tested at our facility but was pulled from a working environment. Housing shows light yellowing and minor scuffs. AC cord included. Batteries NOT included — requires two 6V 4.2Ah SLA batteries. |
California Prop 65 Warning: |
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov |
