Description
Apache Stainless 90-5304 Stainless Pressure Vessel 5 Gal 165 PSI T304L NPT

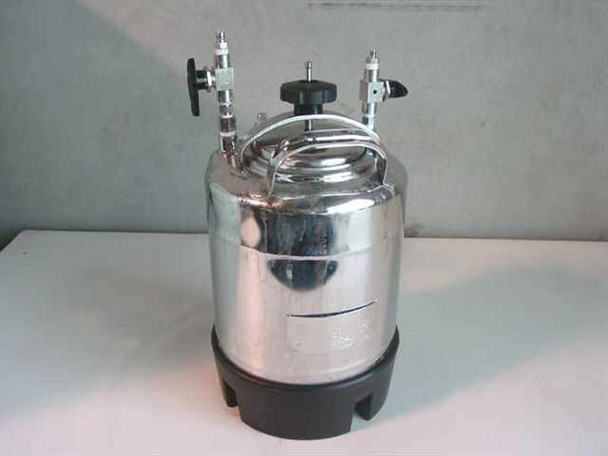

The Apache Stainless Equipment 90-5304 is a 5-gallon cylindrical pressure vessel constructed from T304L stainless steel. Designed to hold pressurized liquids or gases, it features NPT female pipe fittings on the top head for connecting gauges, valves, and process lines, a Teflon O-ring seal at the lid, and a black rubber skirt/foot ring base for stable benchtop or floor placement. The domed lid is secured with a bail clamp mechanism and includes knob-style valve handles visible on the top head fittings.
Specifications & What's Included
- Manufacturer: Apache Stainless Equipment
- Model: 90-5304
- Capacity: 5 Gallon
- Inside Diameter: 9 in.
- Shell Material: T304L Stainless Steel
- Maximum Allowable Working Pressure (MAWP): 165 PSI @ 100°F
- Minimum Design Metal Temperature (MDMT): -20°F @ 165 PSI
- Maximum Working Pressure: 165 PSI
- Top Head Fittings: NPT female pipe fittings
- Lid Seal: Teflon O-Ring
- Base: Rubber skirt / foot ring
- Lid Closure: Bail clamp with knob hardware
- Manufacture Year: 2000 (stamped on body)
- Includes: Vessel with lid, bail clamp, foot ring, and top-head fittings as shown
Applications
Stainless steel pressure vessels like the Apache 90-5304 are used in laboratory, pharmaceutical, food processing, and light industrial settings to store or transfer pressurized fluids, gases, or slurries under controlled conditions. The T304L grade stainless steel construction provides good corrosion resistance for use with a wide range of aqueous solutions, mild chemicals, and solvents. The NPT fittings on the top head allow easy connection to regulators, pressure gauges, dip tubes, and discharge lines, making vessels like this common in spray coating systems, pressurized filtration rigs, pilot plant processes, and general laboratory pressure transfer applications. The rubber foot ring allows the vessel to stand upright on a bench or floor without tipping, and the Teflon O-ring seal provides a chemically inert sealing surface compatible with many process fluids.
This Apache Stainless Equipment 90-5304 stainless pressure vessel has been inspected and appears to be in good used condition. The polished stainless body shows minor surface scuffing consistent with prior use, and the stamped data plate on the body is clear and legible. The lid, bail clamp hardware, top-head NPT fittings, and black rubber foot ring all appear intact and undamaged. The Teflon O-ring seal is present. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Apache Stainless Equipment |
Model: |
90-5304 |
MPN: |
90-5304 |
Type: |
Stainless Steel Pressure Vessel |
SKU: |
19332 |
Capacity: |
5 Gallon |
Material: |
T304L Stainless Steel |
Inside Diameter: |
9 in. |
MAWP: |
165 PSI @ 100°F |
MDMT: |
-20°F @ 165 PSI |
Maximum Working Pressure: |
165 PSI |
Fitting Type: |
NPT Female Pipe Fittings (Top Head) |
Seal / Gasket: |
Teflon O-Ring |
Base / Support: |
Rubber Skirt / Foot Ring |
Manufacture Year: |
2000 |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Vessel only — no additional fittings, hoses, or gauges beyond what is shown in photos. |
Condition Notes: |
This Apache Stainless 90-5304 5-gallon stainless pressure vessel is in good used condition. Body shows minor scuffing from prior use; lid, clamps, NPT fittings, foot ring, and Teflon O-ring all appear intact. Please contact us with any questions. |
