Description
Apache Stainless 90-2304 2-Gallon T304L Pressure Vessel 165 PSI 9in ID MAWP

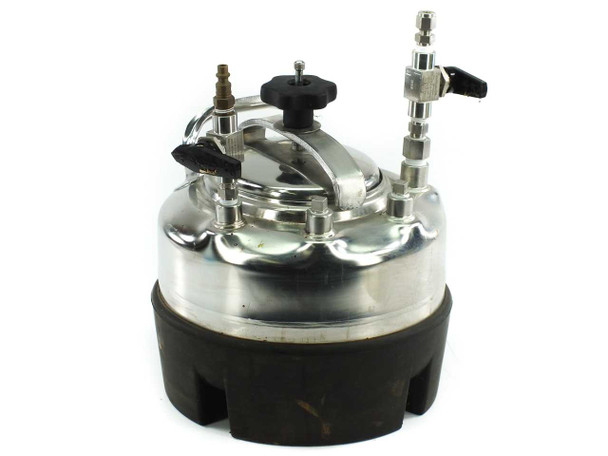

The Apache Stainless Equipment 90-2304 is a 2-gallon stainless steel pressure vessel rated to 165 PSI maximum allowable working pressure (MAWP). Built from T304L stainless steel, it features a clamp-style lid with carry handle, multiple top-mounted fittings for inlet and outlet connections, and a molded rubber skirt/foot ring for stable bench placement. The unit is certified by Apache Stainless Equipment of Beaver Dam, WI.
Specifications & What's Included
- Model: 90-2304
- Manufacturer: Apache Stainless Equipment, Beaver Dam, WI
- Capacity: 2 Gallon
- Material: T304L Stainless Steel
- Inside Diameter: 9 in.
- MAWP: 165 PSI at 100°F
- MAEWP: 15 PSI at 100°F
- MDMT: -20°F at 165 PSI
- Maximum Working Pressure: 165 PSI
- Base: Molded rubber skirt / foot ring

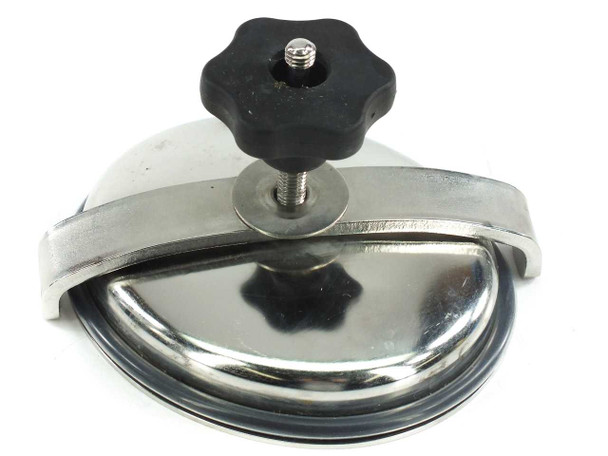

- Lid: Clamp-style with carry handle and center thumb knob
- Top Fittings: Multiple ports — inlet valve, outlet/discharge valve, pressure fitting (all present as photographed)

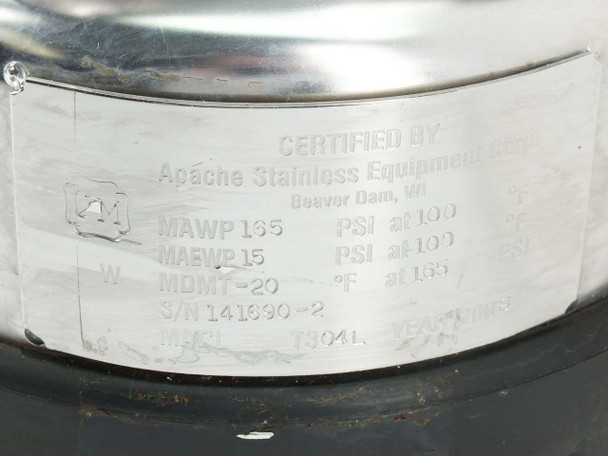

- Certification: Certified pressure vessel — Apache Stainless Equipment nameplate affixed to body
- Includes: Vessel body, clamp lid, and all visible top fittings
Applications
Stainless steel pressure vessels of this type are used in laboratory and light industrial settings for pressurized fluid dispensing, spray coating, adhesive or resin delivery, and chemical transfer processes. The T304L stainless construction makes the 90-2304 compatible with a broad range of solvents, acids, and process chemicals, and the low-carbon L-grade alloy improves resistance to intergranular corrosion after welding. Units like this are commonly found in semiconductor fabrication, coatings labs, university research settings, and small-scale production lines where a controlled, pressurized reservoir is needed to push fluid through dispensing lines or spray heads. The 9-inch interior diameter and 2-gallon capacity suit bench-scale batch operations, and the rubber foot ring provides stable, vibration-dampened placement on a work surface.
This Apache Stainless 90-2304 2-gallon T304L stainless pressure vessel has been inspected and is in good used condition. The stainless body is clean and shows normal surface wear consistent with prior use. The rubber foot ring has some scuffing and minor soiling visible on the base. All top fittings and the clamp lid are present. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Apache Stainless Equipment |
Model: |
90-2304 |
MPN: |
90-2304 |
SKU: |
19331 |
Type: |
Stainless Steel Pressure Vessel / Pressure Container |
Capacity: |
2 Gallon |
Material: |
T304L Stainless Steel |
MAWP (Max Allowable Working Pressure): |
165 PSI at 100°F |
MAEWP: |
15 PSI at 100°F |
MDMT (Min Design Metal Temp): |
-20°F at 165 PSI |
Inside Diameter: |
9 in. |
Pressure Rating: |
165 PSI |
Foot / Base: |
Rubber skirt / foot ring |
Lid / Closure: |
Clamp-style lid with handle and center knob |
Fittings: |
Multiple top fittings: inlet valve, outlet valve, pressure gauge port |
Certification: |
Certified by Apache Stainless Equipment, Beaver Dam, WI |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Includes vessel body, clamp lid, and all visible top fittings. No additional hardware or accessories. |
Condition Notes: |
This Apache Stainless 90-2304 2-gallon stainless pressure vessel is in good used condition. Body is clean with normal wear; rubber foot ring shows scuffing. All fittings and clamp lid present. Please view photos and contact us with any questions. |
