Description
Apacer AP-COCRI41 Internal Card Reader 82.20100.011 SD MMC MS SM CF 3.5in Bay

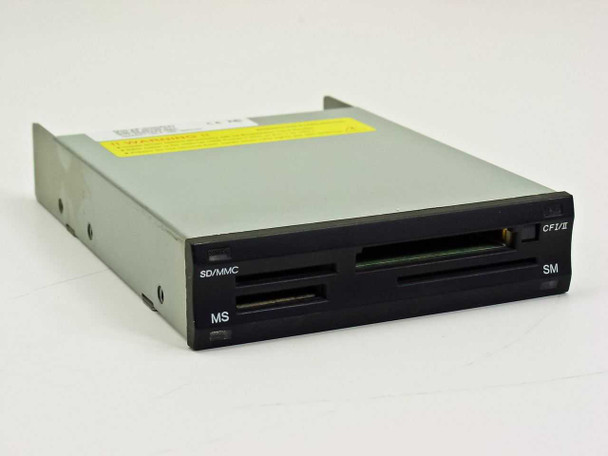

The Apacer AP-COCRI41 is a 3.5-inch internal bay multi-format card reader that installs in a standard desktop PC 3.5-inch drive bay. It supports four card formats simultaneously — SD/MMC, Memory Stick (MS), SmartMedia (SM), and CompactFlash Type I/II — and connects to the host system via an internal USB header on the motherboard. The unit is powered through an internal USB pin header cable (red cable, VCC/GND).
Specifications & What's Included
- Manufacturer: Apacer
- Model: AP-COCRI41
- Part Number (P/N): 82.20100.011
- Form Factor: 3.5-inch internal bay
- Supported Card Formats: SD/MMC, Memory Stick (MS), SmartMedia (SM), CompactFlash Type I/II (CF I/II)
- Interface: Internal USB header (motherboard pin header connection)
- Power: Internal USB power — red cable connects to motherboard VCC/GND pin header

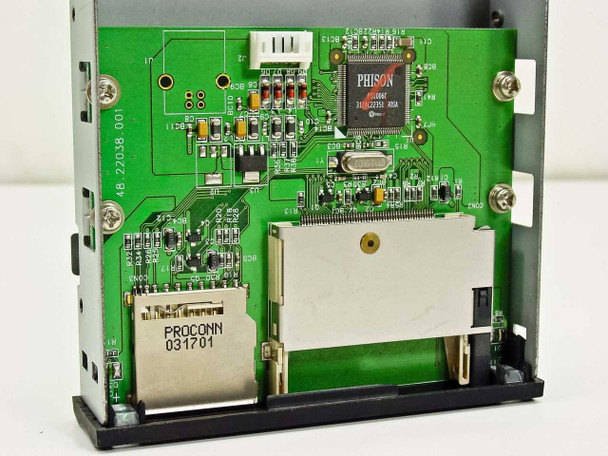

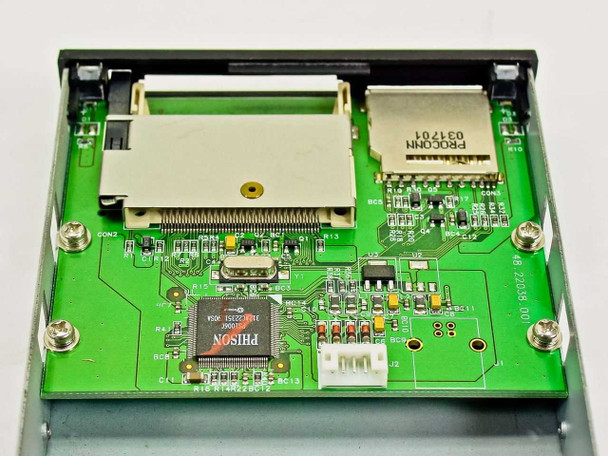

- Controller Chipset: Phison (visible on PCB)
- Card Connectors: PROCONN (visible on PCB)

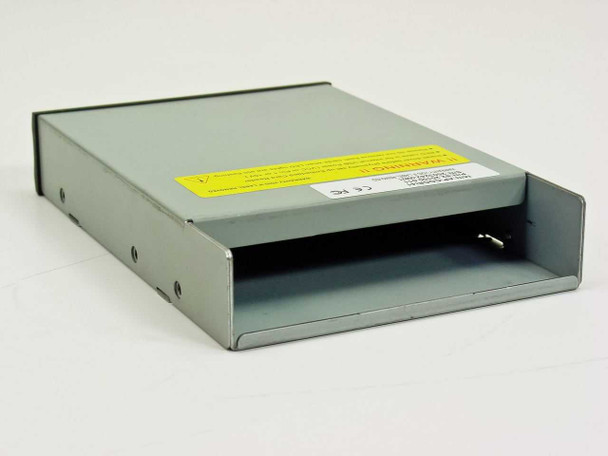

- Certifications: CE, FCC
- Includes: Card reader unit only — no cables, drivers, or software included
Applications
Internal multi-format card readers like the AP-COCRI41 were standard accessories for desktop PCs during the early-to-mid 2000s, when flash memory cards proliferated across digital cameras, PDAs, MP3 players, and handheld gaming devices. Rather than requiring a separate USB adapter, this type of reader installs permanently into an open 3.5-inch bay — the same bay used by floppy drives — giving users a clean, front-panel solution for transferring photos, data, and files from portable devices to the desktop. The AP-COCRI41 covers the four card formats that were dominant in that era: SD/MMC (widely used in cameras and phones), Memory Stick (Sony devices), SmartMedia (early Olympus and Fuji cameras), and CompactFlash (professional cameras and early PDAs). It remains useful today as a replacement or spare in older desktop systems that retain 3.5-inch bays, or for reading legacy media from older portable devices.
This Apacer AP-COCRI41 internal card reader (P/N 82.20100.011) was pulled from a working environment where it was in active use. It has been inspected and is in good used condition. The front faceplate and card slots are intact with no broken tabs or damaged slot openings. The metal chassis shows light handling marks consistent with normal use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Apacer |
Model: |
AP-COCRI41 |
MPN: |
82.20100.011 |
Type: |
Internal Multi-Format Card Reader |
SKU: |
28527 |
Form Factor: |
3.5-inch Internal Bay |
Compatible Card Types: |
SD, MMC, Memory Stick (MS), SmartMedia (SM), CF I/II |
Controller Chipset: |
Phison |
Interface: |
USB (Internal Header) |
Power: |
Internal USB (VCC via pin header — red cable) |
Certifications: |
CE, FCC |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Card reader only; no cables or software included |
Country/Region of Manufacture: |
Taiwan |
Condition Notes: |
Apacer AP-COCRI41 card reader (82.20100.011) pulled from a working environment, inspected, and in good used condition. Front slots and faceplate intact. Light handling wear on chassis. Please contact us with any questions. |
