Anthem AVM 50V A/V Preamp Processor 8 HDMI 7.1 Ch THX Dolby TrueHD dts-HD
The Anthem AVM 50V is a flagship multichannel audio/video preamp processor combining a surround sound processor, digital video processor, HDTV video switcher, and AM/FM tuner into a single rackmount unit. It supports Dolby TrueHD, dts-HD Master Audio, and full THX Ultra2 certification, and includes Anthem Room Correction (ARC) for acoustically optimizing speaker output to the listening environment. Balanced 2-channel XLR inputs and a full complement of true-balanced XLR main audio outputs make it suited for integration with high-end amplification.
Specifications & What's Included
- Model: Anthem AVM 50V
- Channels: 7.1
- Form Factor: Rackmount (4U)
- Country of Manufacture: Canada
- Video Inputs:
- HDMI inputs: 8
- Component video inputs: 4
- S-Video inputs: available (rear panel)
- Composite video inputs: available (rear panel)
- Video Outputs:
- HDMI outputs: 2
- Component video output: 1
- S-Video output: 1
- Composite video output: 1
- Audio Inputs:
- Coaxial digital audio inputs: 7
- Stereo SE (RCA) analog audio inputs: 7
- True-balanced XLR analog inputs: 10
- 6-channel SE input: 1
- Built-in AM/FM tuner
- Headphone output: front panel 3.5mm
- Audio Outputs:
- SE analog audio outputs: 10
- Balanced XLR main audio outputs (7.1 configuration)
- Balanced 2-channel XLR output
- Subwoofer outputs: 2
- Surround & Processing:
- Dolby TrueHD, Dolby Digital, Dolby Pro Logic IIx (Music, Movie, Matrix, Gaming)
- dts-HD Master Audio, DTS
- THX Ultra2 modes: Cinema, Music, Surround EX, Games, ReEQ On/Off
- AnthemLogic-Music and AnthemLogic-Cinema modes
- Anthem Room Correction (ARC)
- Tone Bypass; Analog-Direct on all inputs
- Video Processing:
- Adjustable cropping, aspect ratio control, gamma correction
- Analog-to-digital and digital-to-analog video conversion
- Onscreen display via S-Video, Component, and HDMI
- Control & Connectivity:
- RS-232 control port (rear panel)
- 12V trigger outputs
- IR emitter jacks
- FM and AM antenna inputs
- IEC AC power inlet

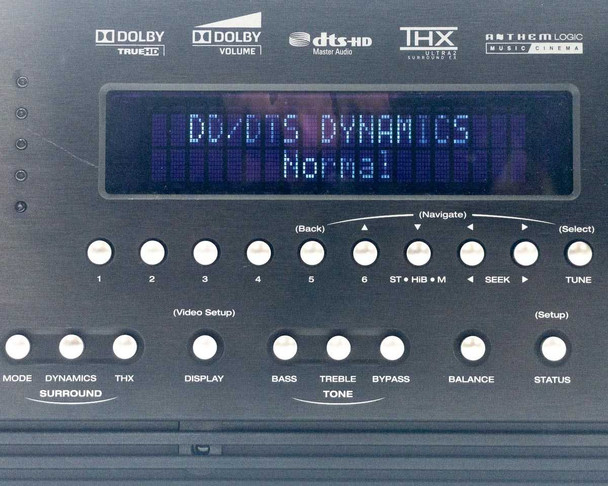

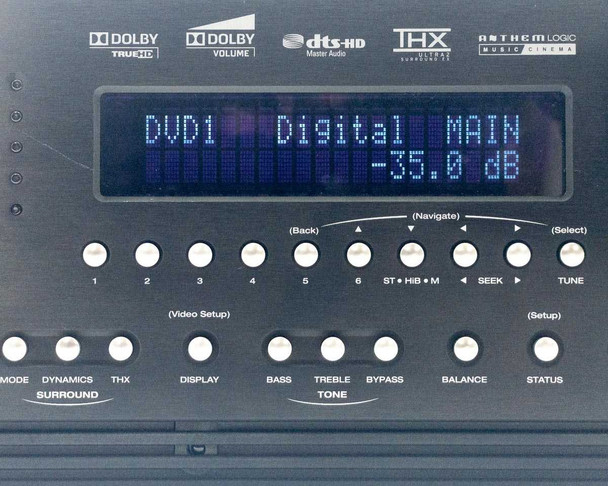

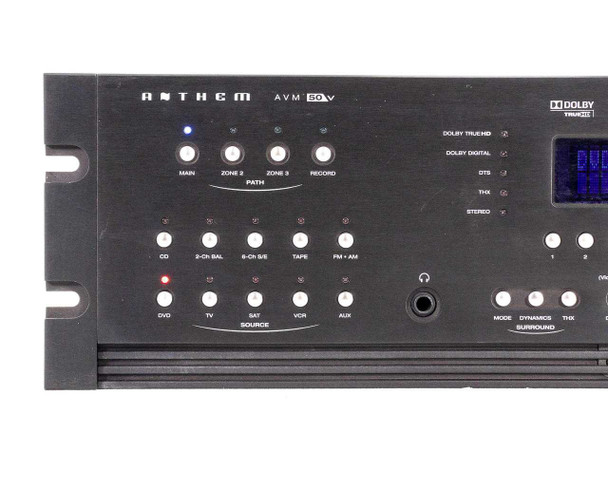

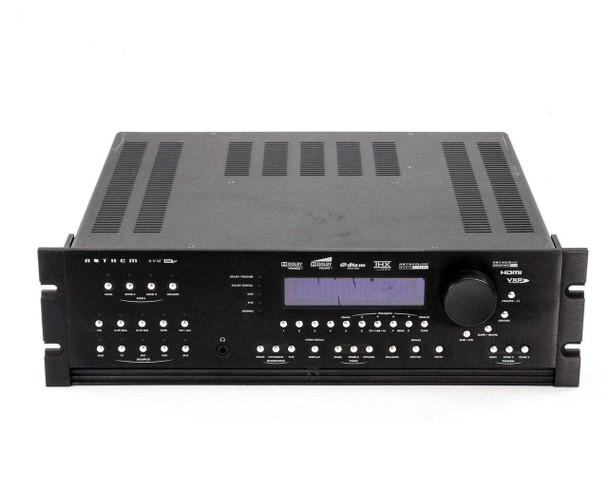

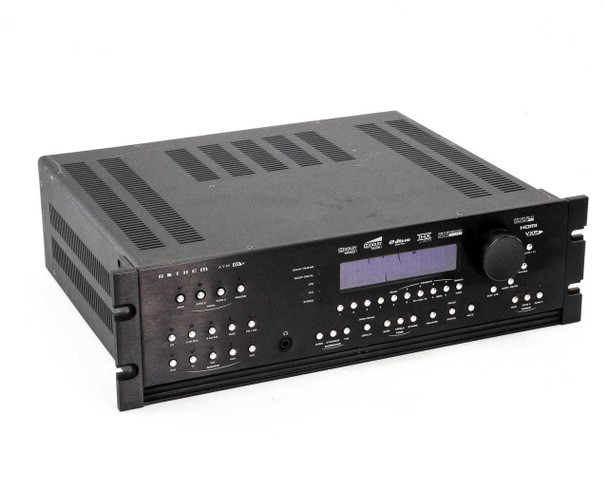

- Front panel: LCD display, source selector buttons, volume knob, zone controls (Main, Zone 2, Zone 3, Record)
- Unit only — no accessories included
Applications
The AVM 50V is designed for high-end dedicated home theater installations and custom AV integration projects where a standalone preamp/processor is paired with separate power amplification. As a preamp-only processor (no internal amplification), it is typically deployed in systems where audiophile-grade separation between source processing and amplification is a priority. The AVM 50V was positioned as Anthem's top-tier processor at the time of its release and is compatible with the full range of HDMI 1.3 source devices including Blu-ray players and gaming consoles. Its balanced XLR output array makes it a natural match for Anthem, Bryston, Parasound, or other balanced-input amplifier configurations. It continues to be sought after for legacy high-performance home theater builds, custom install replacements, and AV enthusiasts maintaining Anthem-based systems.
Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

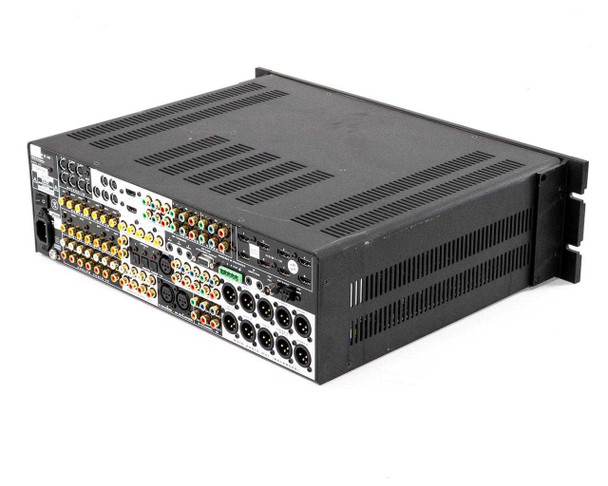

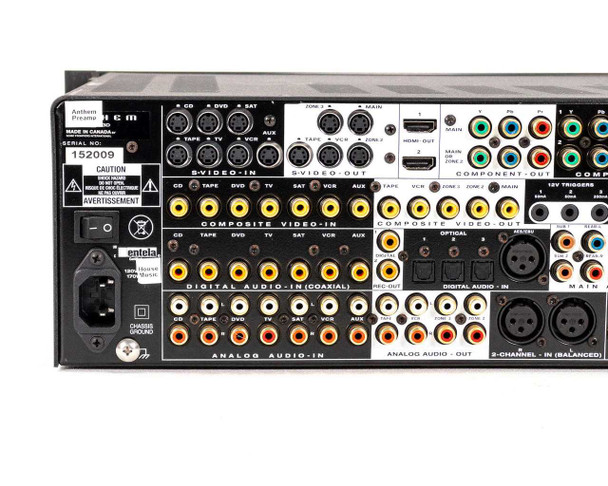

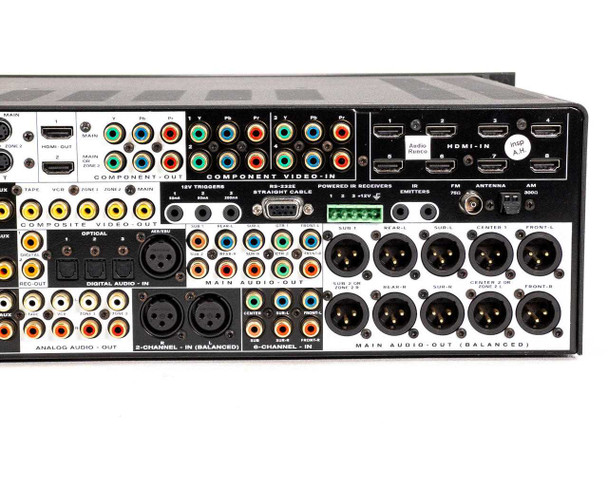

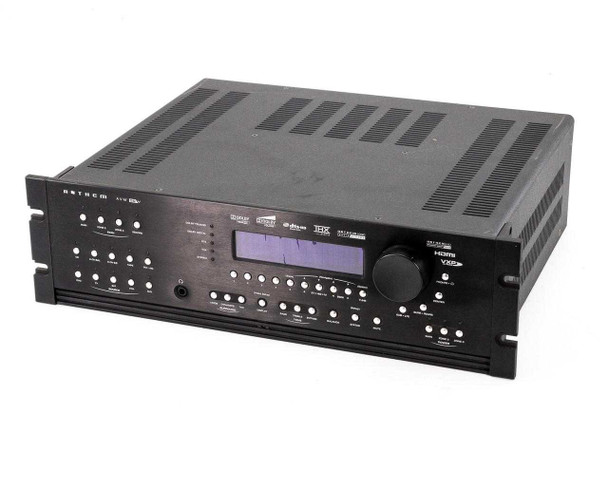

Anthem AVM 50V Multichannel A/V Preamp Processor in Used condition. This unit has been powered and tested at our facility and operates normally. The LCD display is active and readable, front-panel LEDs illuminate as expected, and mode switching is fully functional. HDMI inputs and outputs were tested with video and audio passing through correctly; analog RCA connections were also verified for audio output. The unit is in good cosmetic condition with normal wear from prior use—front panel, controls, and full rear connector array (HDMI, XLR balanced, component, coaxial digital, and analog RCA) all appear intact and functional.
Warranty Information
Additional Information
Brand: |
Anthem |
Model: |
AVM 50V |
MPN: |
AVM50V |
Type: |
Multichannel A/V Preamp Processor |
SKU: |
53000 |
Number of Channels: |
7.1 |
HDMI Inputs: |
8 |
HDMI Outputs: |
2 |
Surround Sound Formats: |
Dolby TrueHD, Dolby Digital, dts-HD Master Audio, THX |
THX Certification: |
THX Ultra2 |
Surround Modes: |
AnthemLogic Music/Cinema, Dolby Pro Logic IIx, THX |
Room Correction: |
Anthem Room Correction (ARC) |
Balanced Audio: |
Yes — XLR inputs and outputs |
Balanced Inputs (XLR): |
10 true-balanced XLR analog inputs |
Analog Audio Inputs: |
7 stereo SE analog audio inputs |
Coaxial Digital Audio Inputs: |
7 |
Component Video Inputs: |
4 |
S-Video Output: |
1 |
Composite Video Output: |
1 |
SE Analog Audio Outputs: |
10 |
Subwoofer Outputs: |
2 |
Built-In Tuner: |
AM/FM |
Video Processing: |
Adjustable cropping, aspect ratio, gamma correction |
Onscreen Display: |
S-Video, Component, HDMI |
Form Factor: |
Rackmount |
Rack Units: |
4U |
Country/Region of Manufacture: |
Canada |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Unit only; powered on and tested at our facility. |
Condition Notes: |
Anthem AVM 50V preamp processor, tested and working. Powers on, LCD display active, HDMI and analog I/O verified. Good cosmetic condition, normal wear. All connections intact. |
