Anatech Hummer VII Sputter Coater Gold Coating System w/ Leybold Trivac Pump

(No reviews yet) Write a Review
SKU:
41414
MPN:
Hummer VII
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
49.00 LBS
Shipping:
Calculated at Checkout

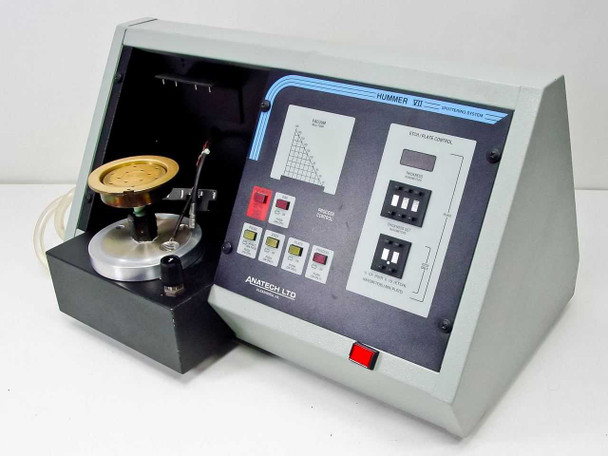

  • Anatech Hummer VII sputter coater front view showing sputtering chamber with gold target and control panel with process controls
  • Anatech Hummer VII sputter coater rear view showing exhaust vent, cooling fan, tubing outlet, and power entry
  • Anatech Hummer VII rating plate showing model, serial number 2803024, 115V 4A 60Hz electrical, 5 psi air/gas, water N/A
  • Anatech Hummer VII front control panel close-up showing Vacuum chart, Etch/Plate Control, Process Control buttons, and Anatech Ltd branding
  • Anatech Hummer VII sputtering chamber open showing gold sputter target assembly mounted on aluminum base pedestal
  • Anatech Hummer VII process control panel detail showing Gas, Pulse, Etch, Plate, and Process pushbutton indicators

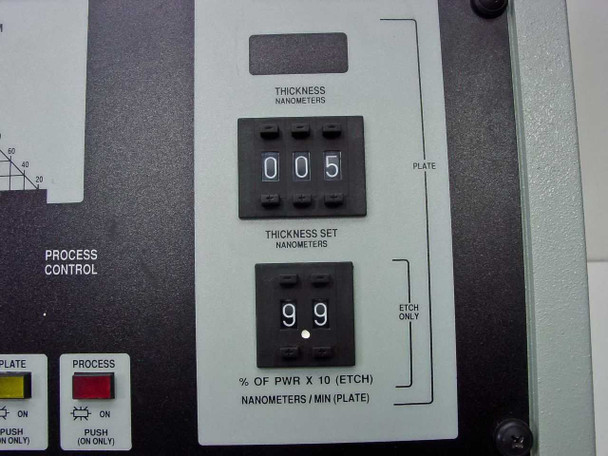

  • Anatech Hummer VII Etch/Plate Control panel showing Thickness Nanometers readout at 005 and Thickness Set at 9.9 Nanometers/Min

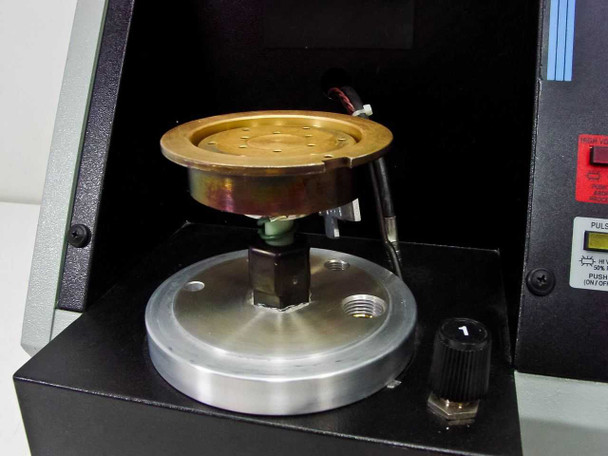

  • Anatech Hummer VII sputtering chamber close-up showing gold target dish, support pedestal, and adjustment knob
  • Anatech Hummer VII loose hardware and parts including mounting bracket, ceramic standoffs, sample platen disc, and assorted screws

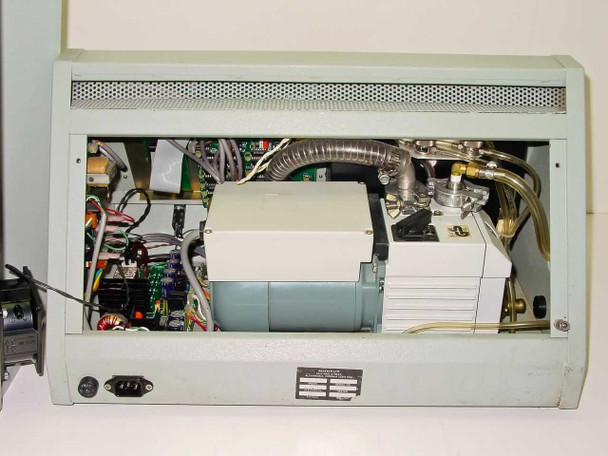

  • Anatech Hummer VII interior view with top cover removed showing internal electronics, vacuum pump, and tubing assembly

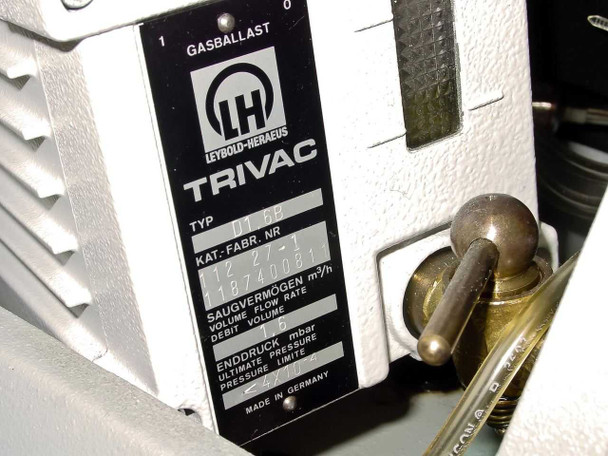

  • Leybold-Heraeus Trivac D1.6B vacuum pump label showing type, catalog/fabrication number, volume flow rate, and ultimate pressure — Made in Germany
$1,500.00
Was: $3,000.00
Current Stock: 1

Sold Out

Description

Anatech Hummer VII Sputter Coater Gold Coating System w/ Leybold Trivac Pump

Benchtop sputter coating system for applying nanometer-scale gold and gold/palladium films. Used for SEM and TEM specimen preparation in electron microscopy labs. Includes Leybold-Heraeus Trivac D1.6B vacuum pump and gold target assembly.

Specifications & What's Included

  • Power: 115V AC, 4A, 60Hz
  • Gas requirement: 5 psi
  • Thickness control: Nanometer-scale digital readout
  • Process controls: Gas, Pulse, Etch, Plate pushbuttons
  • Compatible with SEM/TEM sample preparation
  • Includes Leybold-Heraeus Trivac D1.6B vacuum pump (German manufacture)
  • Includes gold target assembly and loose hardware/parts

Applications

Sputter coaters are standard equipment in electron microscopy labs for preparing non-conductive samples. The system deposits conductive gold coatings on biological, geological, and material specimens prior to SEM/TEM imaging. Gold sputtering is also used in thin-film research and materials characterization. This benchtop model is typical for academic and industrial microscopy facilities requiring routine coating capability.

Condition: For Parts or Not Working
This Anatech Hummer VII Gold Sputter Coater is being sold as-is for parts or repair. The unit is not guaranteed functional and has not been tested at our facility. It comes with a Leybold-Heraeus Trivac D1.6B vacuum pump (visible internally), the gold sputter target assembly, and a collection of loose hardware and parts shown in the photos — including a mounting bracket, ceramic standoffs, a sample platen disc, and assorted screws. The exterior shows general wear consistent with lab use. The internal components appear intact with no obvious catastrophic damage visible in the photos, but the operational status of the coater and vacuum pump is unknown. This is a good candidate for parts, repair, or a lab technician looking to rebuild or cannibalize components. Please review our full photo set carefully and contact us with any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Anatech
Model:
Hummer VII
MPN:
Hummer VII
Type:
Sputter Coater / Gold Sputtering System
SKU:
41414
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Sold as-is; includes Leybold-Heraeus Trivac vacuum pump and loose hardware/parts
Country/Region of Manufacture:
United States
Form Factor:
Benchtop
Power Requirements:
115V AC, 4A, 60Hz
Voltage:
115V
Current Rating:
4A
Frequency:
60Hz
Air/Gas Requirement:
5 psi
Application:
SEM Sample Preparation, Thin Film Coating, Gold Sputtering
Coating Material:
Gold (Au); Gold/Palladium capable
Vacuum Pump Included:
Yes — Leybold-Heraeus Trivac (Type D1.6B)
Vacuum Pump Brand:
Leybold-Heraeus
Vacuum Pump Model:
Trivac D1.6B
Vacuum Pump Country of Manufacture:
Germany
Thickness Control:
Nanometer-scale digital readout; Thickness Set in nm/min
Process Controls:
Gas, Pulse, Etch, Plate, Process pushbutton controls
Etch/Plate Control:
% of Power x10 (Etch); Nanometers/Min (Plate)
Compatible With:
SEM, TEM specimen preparation; electron microscopy labs
Manufacturer Address:
Anatech Ltd., 5510 Vine St., Alexandria, VA 22310 USA
Condition Notes:
Anatech Hummer VII Sputter Coater sold as-is for parts or repair. Not tested; no functionality guaranteed. Includes Leybold-Heraeus Trivac vacuum pump, gold target assembly, and loose hardware/parts. Review photos before purchasing.
