Description
Anaheim Automation 23D204S Stepper Motor NEMA 23 4.3VDC 1.8A Insulation B
The Anaheim Automation 23D204S is a NEMA 23 frame two-phase stepper motor rated at 4.3VDC and 1.8A, with a standard 1.8° step angle. Built in Anaheim, California and carrying Insulation Class B certification, this is a compact and versatile stepper motor suited to a wide range of motion control applications. It features a cylindrical body with a square NEMA 23 front mounting flange and exits with six flying lead wires for flexible driver wiring configurations (bipolar or unipolar).
Specifications & What's Included
- Model: 23D204S
- Manufacturer: Anaheim Automation (Anaheim, California, USA)
- Frame Size: NEMA 23
- Voltage: 4.3VDC
- Current: 1.8A per phase
- Step Angle: 1.8° (200 steps/revolution)
- Insulation Class: B
- Number of Leads: 6 flying lead wires (multi-color)
- Date Code: 9315 (manufactured 1993)
- Country of Manufacture: USA
- Included: Motor with lead wires only — no driver, cables, or mounting hardware
Applications
NEMA 23 stepper motors are a standard building block in motion control systems across industrial automation, CNC machining, 3D printing, robotics, laboratory positioning stages, and pick-and-place equipment. The NEMA 23 frame is one of the most widely used form factors in the industry, compatible with a broad range of stepper motor drivers and controllers from manufacturers such as Anaheim Automation, Gecko Drive, Leadshine, and others. The 1.8° step angle (200 steps/revolution) provides a good balance of resolution and torque without microstepping, and the six-lead configuration gives the installer flexibility to wire the motor in bipolar series, bipolar parallel, or unipolar configurations depending on the driver and torque/speed requirements. Anaheim Automation has supplied stepper motors and motion control components to OEM machinery builders, research labs, and hobbyist CNC builders since the 1970s, and the 23D-series motors were a staple product line through the 1980s and 1990s.

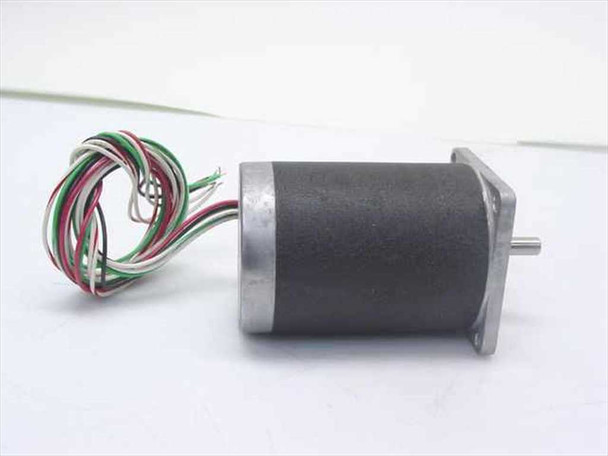

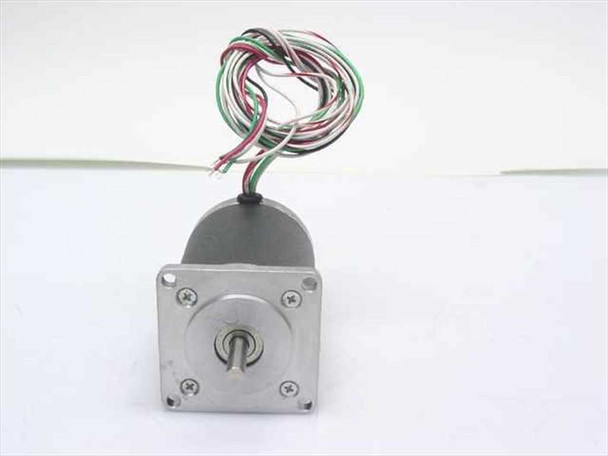

This Anaheim Automation 23D204S NEMA 23 stepper motor is new old stock — unused and in new condition. The motor body is clean with no signs of use, wear, or damage. The multi-color lead wires are intact and undamaged. The label is fully legible and confirms model 23D204S, 4.3VDC, 1.8A, and Insulation Class B. Date code 9315 indicates manufacture in the 15th week of 1993. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Anaheim Automation |
Model: |
23D204S |
MPN: |
23D204S |
Type: |
Stepper Motor |
SKU: |
31140 |
Voltage: |
4.3VDC |
Current Rating: |
1.8A |
Insulation Class: |
B |
Frame Size: |
NEMA 23 |
Step Angle: |
1.8° |
Number of Leads: |
6 |
Lead/Wire Type: |
Flying leads (multi-color) |
Country/Region of Manufacture: |
United States |
Date Code: |
9315 |
Form Factor: |
NEMA 23 flange mount |
Seller Notes: |
Motor only with lead wires — no driver, no mounting hardware included. |
Compatible With: |
CNC machines, 3D printers, robotics, indexing stages, automation systems |
Condition Notes: |
This Anaheim Automation 23D204S NEMA 23 stepper motor is new old stock — unused, clean, and in new condition. Lead wires are intact. Label confirms 4.3VDC, 1.8A, Insulation Class B, date code 9315. |
