CTI-Cryogenics D3592-252-P20 Cryo Pump Compressor Flex Lines 10 ft Send Return

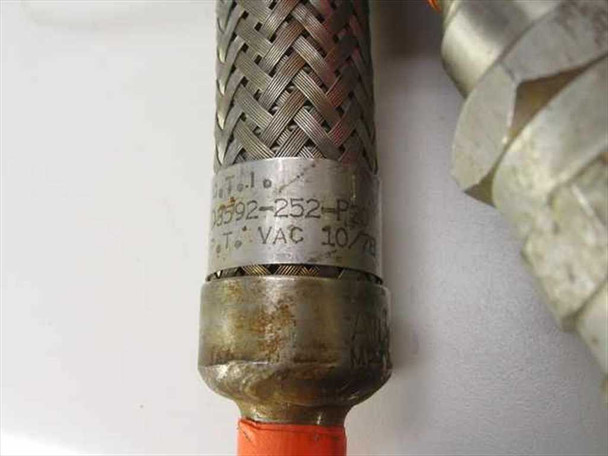

This is a 10-foot matched pair of CTI-Cryogenics D3592-252-P20 stainless steel braided flexible transfer lines — the send and return hoses that connect a CTI cryogenic vacuum pump cold head to its external helium compressor. The hoses carry high-pressure helium gas between the two components and are a standard consumable/replacement item in CTI cryo pump installations. The part number D3592-252-P20 is stamped directly on the fitting collar, visible in the label photo.
Specifications & What's Included
- Manufacturer: CTI-Cryogenics (product line: Anaconda)
- Part Number: D3592-252-P20
- Configuration: Matched pair — one send line and one return line

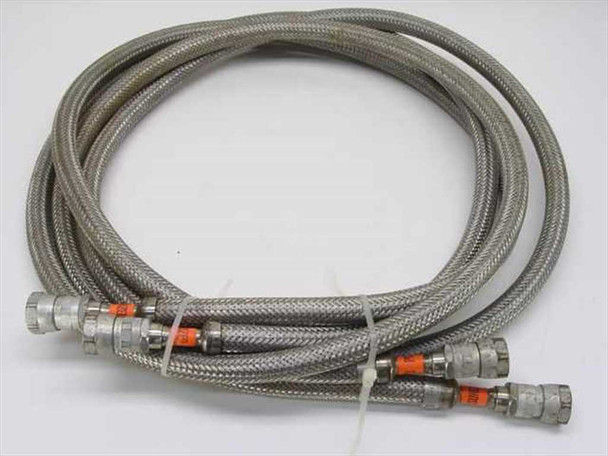

- Hose length: approximately 10 feet (per original listing and visible coil)
- Hose jacket: stainless steel braided flexible construction
- End fittings: metal quick-disconnect couplings with orange safety/identification collars
- Date code on label: VAC 10/78 (October 1978)
- Quantity: 2 hoses (send + return) — no other accessories included
Applications
CTI-Cryogenics (now part of Brooks Automation / Sumitomo) cryogenic vacuum pumps use an external helium compressor — such as the CTI 8200, 9600, or similar units — connected to the cold head via a matched pair of high-pressure flexible lines exactly like these. The send and return lines carry compressed helium to and from the cold head's Gifford-McMahon refrigerator cycle, maintaining the cryopump at temperatures low enough (typically 10–20 K at the first stage, below 20 K at the second stage) to condense and trap gas molecules. These lines are found in semiconductor fabrication equipment (ion implanters, sputtering systems, evaporators, MBE chambers), particle physics instruments, research cryostats, and any vacuum system using a CTI cryo pump. The 10-foot length is one of the most common standard lengths, giving enough reach for typical equipment rack and tool configurations. Replacement or spare flex lines are regularly needed in labs and fab facilities where aging lines develop leaks at the fittings or the braiding shows wear.
This CTI-Cryogenics D3592-252-P20 cryo pump compressor flex line set is a 10-foot matched pair (send and return) in used condition. The stainless steel braided hoses show normal aging and surface oxidation on the metal fittings, as visible in our photos — particularly at the collar on at least one end fitting. The braided jacketing and quick-disconnect fittings appear intact with no visible kinking or damage to the hose bodies. These lines were pulled from a cryogenic vacuum pump system and have not been tested or pressurized at our facility. Please review all photos and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
CTI-Cryogenics |
Model: |
D3592-252-P20 |
MPN: |
D3592-252-P20 |
Type: |
Cryogenic Compressor Flex Lines |
SKU: |
23017 |
Seller Notes: |
Matched pair — send and return lines included (2 hoses total), no other accessories |
Country/Region of Manufacture: |
United States |
Hose Length: |
10 ft (approx. 3 m) |
Configuration: |
Matched Pair — Send and Return |
Hose Construction: |
Stainless steel braided flexible hose |
End Fittings: |
Metal quick-disconnect fittings with orange safety collars |
Compatible With: |
CTI-Cryogenics cryo pump and compressor systems |
Application: |
Cryogenic vacuum pump — compressor helium transfer lines |
Product Line: |
Anaconda |
Condition Notes: |
This CTI-Cryogenics D3592-252-P20 cryo compressor flex line pair (send and return, 10 ft) shows surface oxidation on the fittings and normal aging wear. Pulled from a cryo pump system; not pressurized or tested here. |
