Amray 124-002 Dual Ion Pump Power Supply 2x 5kV 3 Outputs 117VAC Rack Mount

(No reviews yet) Write a Review
SKU:
18424
MPN:
124-002
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
135.00 LBS
Shipping:
Calculated at Checkout
  • Amray 124-002 Dual Ion Pump Power Supply — front three-quarter view showing two stacked modules in white rack case with carry handles
  • Amray 124-002 Ion Pump Power Supply upper module front panel — DANGER 5kV label, J4 DB-9 control port, J5 HV output connector, J2 pressure and J3 current terminals, J1 117VAC power terminal, fuse, calibration trimmers
  • Amray 124-002 Ion Pump Power Supply lower module front panel — close-up showing dual blue HV connectors, DANGER HIGH VOLTAGE -5KV warning label, green terminal blocks, and fuse holder
  • Amray 124-002 Dual Ion Pump Power Supply — rear view of both modules showing back panel venting and open rack frame
  • Amray 124-002 Dual Ion Pump Power Supply — both modules removed from case and displayed side by side showing front panel layout

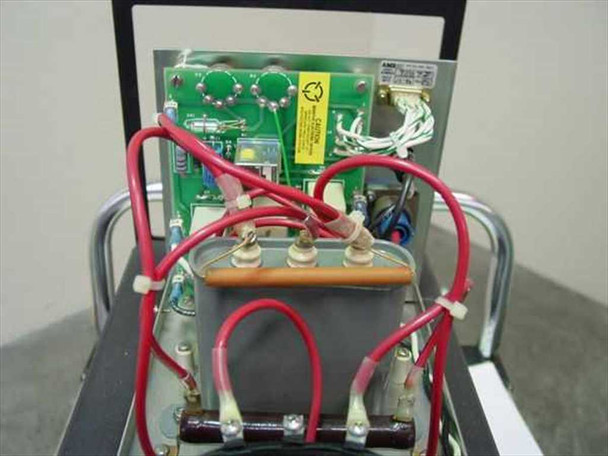

  • Amray 124-002 Ion Pump Power Supply — internal view of one module showing green PCB, red high-voltage wiring, and transformer assembly

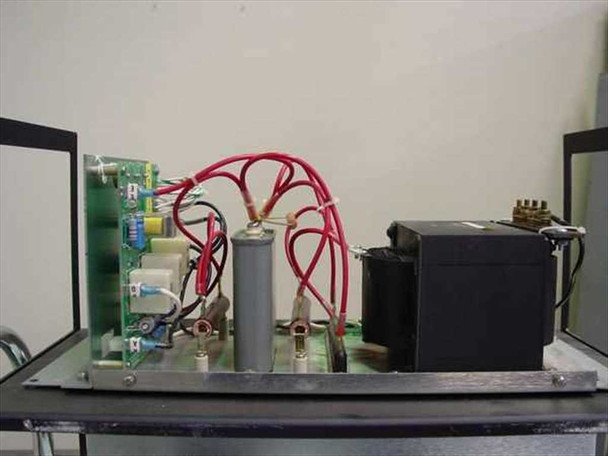

  • Amray 124-002 Ion Pump Power Supply — internal side view showing PCB, cylindrical HV capacitor, transformer, and red interconnect wiring
  • Amray 124-002 label closeup — shows PN 124-002, Assembly Number 91107D, Date MFD 10-90, Rev E2, with DB-9 control connector and wiring harness visible
$250.00
Was: $500.00
Current Stock: 1

Sold Out

Description

Amray 124-002 Dual Ion Pump Power Supply 2x 5kV 3 Outputs 117VAC Rack Mount

This is a dual ion pump power supply unit housing two 5kV negative high voltage modules in a single rack-mount enclosure. It supplies and controls ion pumps used in vacuum systems for electron microscopy equipment.

Specifications & What's Included

  • Model: Amray 124-002 (Assembly 91107D, Rev E2)
  • Output: Two 5kV modules with 3 total outputs for ion pump control
  • Input: 117 VAC, 10A 5B 250V fuse per module
  • Control Interface: DB-9 connector (J4) with current scale calibration and overcurrent trip adjustments
  • Additional connectors: Power input (J1), pressure (J2), current (J3), HV output (J5)
  • Manufactured: October 1990, United States

Applications

Ion pump power supplies operate turbo-molecular pump stations in scanning electron microscopes (SEM) and transmission electron microscopes (TEM). These units maintain ultra-high vacuum conditions necessary for electron beam operation. The Amray 124-002 was standard support equipment in electron microscopy labs throughout the 1990s and 2000s. Control via DB-9 interface allowed integration with microscope control systems.

Condition: Used
This Amray 124-002 Dual Ion Pump Power Supply has been inspected and appears to be in good condition. It was pulled from a working electron microscope environment where it was in active use. Both modules are present in the rack case. The exterior shows normal wear consistent with lab use; the panels and labels are intact and legible. Internal components including the PCB, transformer, and high-voltage wiring are visible in our photos and appear undamaged. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Amray
Model:
124-002
MPN:
124-002
Assembly Number:
91107D
Hardware Revision:
Rev E2
Date of Manufacture:
October 1990
Type:
Ion Pump Power Supply
SKU:
18424
Number of Outputs:
3
Output Voltage:
-5kV per ion pump unit (x2)
Input Voltage:
117 VAC
Fuse Rating:
10A 5B 250V (per module)
Output Type:
Negative High Voltage (Ion Pump)
Configuration:
Dual unit — two 5kV modules in single rack case
Form Factor:
Rack Mount
Connectors / Interfaces:
J1 Power 117VAC, J2 Pressure, J3 Current, J4 Control (DB9), J5 HV Output, J6 Not Used
Control Interface:
DB-9 (J4 Control)
Adjustments:
Current Scale Calibrate, Overcurrent Trip Point (per module)
Application:
Electron Microscope / SEM Ion Pump Control
Condition:
Used – Pulled from Working Environment
Seller Notes:
Two 5kV ion pump supply modules housed in single rack case; 3 outputs total
Country/Region of Manufacture:
United States
Condition Notes:
Amray 124-002 Dual Ion Pump Power Supply inspected and in good condition. Pulled from a working electron microscope environment. Both modules present in rack case. Normal lab wear. Please view photos and contact us with any questions.
