Ampro Corp 69581 Three-Lens LCD Video Projector w/ Rack Bracket RGB BNC

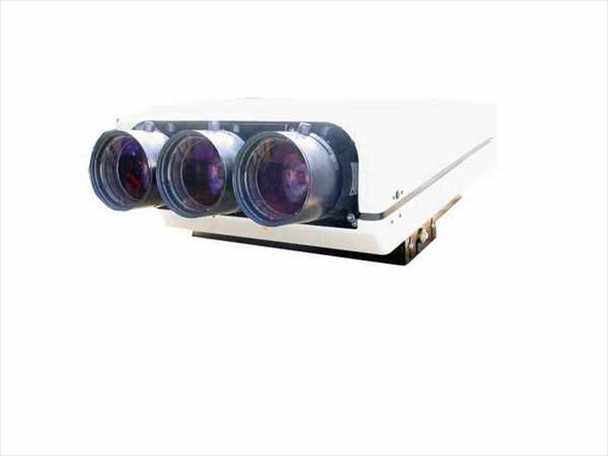

The Ampro Corporation 69581 is a three-lens rackmount LCD video projector designed for large-venue and high-brightness projection applications. It uses three separate LCD projection lenses — one per color channel (red, green, blue) — to combine a full-color image, a configuration typical of professional and simulation-grade LCD projectors of its era. The unit includes a rack mounting bracket and is manufactured in the USA.
Specifications & What's Included
- Model: Ampro Corporation 69581
- Projection type: Three-lens LCD (separate R/G/B optical paths)
- Mounting: Rackmount — rack bracket included
- Power: 100V–120V AC; IEC inlet; 250V fuses required
- Power switch: Rear-panel rocker switch
- Cooling: Rear-mounted fan
- Video inputs — Dual RGB BNC sets: Red, Green, Blue (×2 independent RGB inputs)
- Video inputs — S-VHS (4-pin mini-DIN)
- Video inputs — Composite Video BNC with 75-ohm / termination switch
- Control connectors: HOST (DB15), SLAVE (DB15) — supports linked/slave projector configurations
- Country of manufacture: USA (Ampro Corporation, Melbourne, FL)
- Complies with DHHS Radiation Performance Standards, 21 CFR Subchapter J
- Included: Rack mounting bracket
- Not included: Manual, cables, peripherals
Applications
Three-lens LCD projectors like the Ampro 69581 were developed for professional large-venue, simulation, training, and command-and-control display applications where high brightness and accurate color separation were required. The separate-lens RGB design allowed each color channel to be individually focused and converged, delivering sharper and brighter images than single-panel LCD designs of the same period — a common approach in high-end projection systems of the late 1980s through mid-1990s. The dual RGB BNC input sets and HOST/SLAVE connectivity made these projectors well suited for multi-projector video wall configurations, flight simulators, military training systems, and large-screen boardroom or auditorium installations. The rack-mount form factor allowed integration into AV equipment racks alongside source equipment and signal processors. Today these units are sought by collectors of vintage professional AV equipment, simulation system restorers, and technicians working on period-correct large-venue display systems.
This Ampro Corporation 69581 Three-Lens LCD Video Projector is being sold as-is with no warranty. The unit does not come with a manual, cables, or peripherals of any kind; the rack mounting bracket is included. No testing has been performed, and functionality cannot be guaranteed. Please review all photos carefully and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
AmPro |
Model: |
69581 |
MPN: |
69581 |
SKU: |
16036 |
Type: |
Three-Lens LCD Video Projector |
Number of Lenses: |
3 |
Projection Technology: |
LCD |
Input Connectors: |
Dual RGB BNC (Red/Green/Blue x2), S-VHS, Composite Video |
Control Connectors: |
HOST (DB15), SLAVE (DB15) |
Power Requirements: |
100V–120V AC, 250V fuses |
Mounting: |
Rackmount with rack bracket |
Form Factor: |
Rack Mount |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Includes rack mounting bracket. No manual or peripherals included. |
Condition Notes: |
Ampro Corp 69581 Three-Lens LCD Video Projector sold as-is, no warranty. Rack bracket included; no manual or peripherals. Untested — functionality not guaranteed. Please view photos and contact us with questions. |
