Description
AMP NetConnect 406331-1 Cat 5e 48-Port Patch Panel Enhanced System 2U
The AMP NetConnect 406331-1 is a 48-port Category 5e patch panel from AMP's NetConnect Enhanced System line. It provides a central cross-connect point for structured cabling installations, terminating horizontal runs from wall jacks to network switches or routers. The panel uses 110-style punch-down terminations on the rear and standard RJ-45 ports on the front, and is rated for Cat 5e (100 MHz) performance with universal T568A/T568B wiring compatibility. UL Listed.
Specifications & What's Included
- Manufacturer: AMP (NetConnect Enhanced System)
- Part Number: 406331-1
- Date Code: DC: 9846
- Cable Standard: Category 5e (100 MHz)

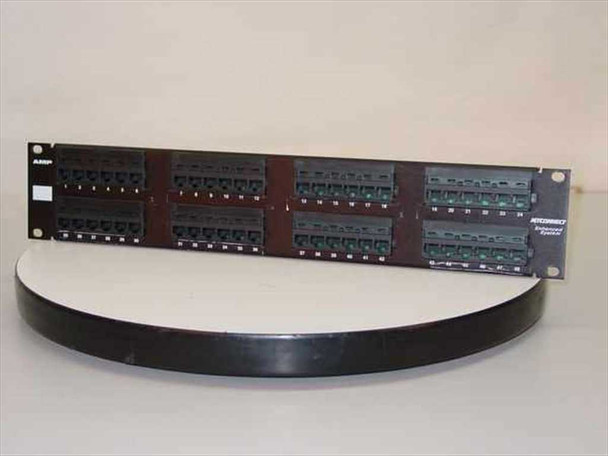

- Number of Ports: 48 x RJ-45

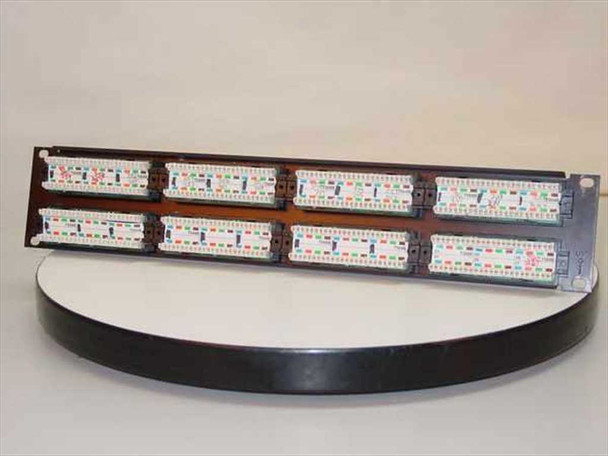

- Rear Termination: 110-style punch-down blocks with color-coded wiring guides
- Wiring: Universal (T568A / T568B compatible)
- Form Factor: Rackmount — 2U, 19-inch EIA/TIA standard
- Certifications: UL Listed (file 68H1), Communication Circuit Accessory
- Included: Patch panel only — no cables or mounting hardware
Applications
Cat 5e patch panels are a core component of structured cabling systems in commercial buildings, data centers, server rooms, and campus LAN environments. The AMP NetConnect 406331-1 serves as the termination and cross-connect point for horizontal cable runs — typically 24 AWG solid UTP cable routed from telecommunications outlets (wall jacks) back to the wiring closet. Administrators use patch cables on the front RJ-45 ports to connect individual runs to network switches, making it easy to reconfigure, move, or add connections without disturbing the permanent cabling infrastructure. AMP's NetConnect Enhanced System line was a widely deployed enterprise-grade cabling system from the mid-to-late 1990s, built to support 100BASE-TX Fast Ethernet and backward compatible with 10BASE-T. These panels remain fully functional and compatible with Gigabit Ethernet at Cat 5e performance, and are commonly used in legacy structured cabling installations and budget-conscious network buildouts today.

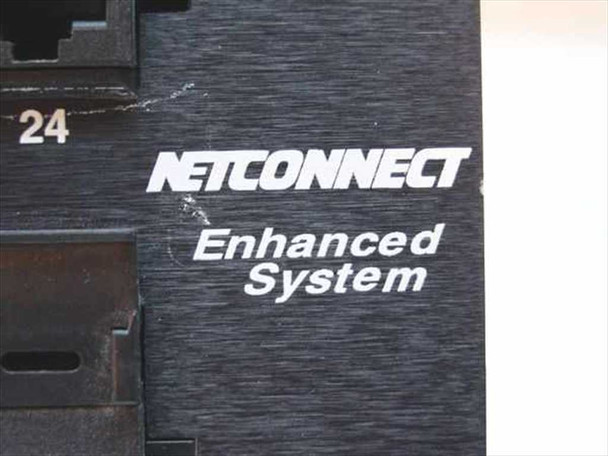

This AMP NetConnect 406331-1 Cat 5e 48-Port Patch Panel has been inspected and is in good used condition. The front panel shows minor surface scratching near the NetConnect branding (visible in the photos), and the punch-down blocks on the rear appear clean and undamaged with no broken contacts observed. It was pulled from a working network environment where it was previously in use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
AMP |
Model: |
406331-1 |
MPN: |
406331-1 |
Product Line: |
NetConnect Enhanced System |
Type: |
Cat 5e Patch Panel |
Number of Ports: |
48 |
Cable Standard: |
Cat 5e (Category 5e) |
Wiring Configuration: |
Universal Wiring |
Form Factor: |
Rackmount |
Rack Units: |
2U |
Connector Type: |
RJ-45 |
Date Code: |
DC: 9846 |
Certifications: |
UL Listed (68H1) |
Compatible With: |
Standard 19-inch EIA/TIA racks |
Application: |
Structured cabling, LAN infrastructure, data centers |
Country/Region of Manufacture: |
United States |
SKU: |
18683 |
Seller Notes: |
Patch panel only — no cables or mounting hardware included. |
Condition Notes: |
This AMP NetConnect 406331-1 Cat 5e 48-Port Patch Panel is in good used condition. Minor surface scratching on front panel; punch-down blocks on rear appear clean with no broken contacts. Pulled from a working network environment. |
