MACOM AMP 3052-1201-10 Bulkhead Female N-Type Connector 4-Hole Flange Solder

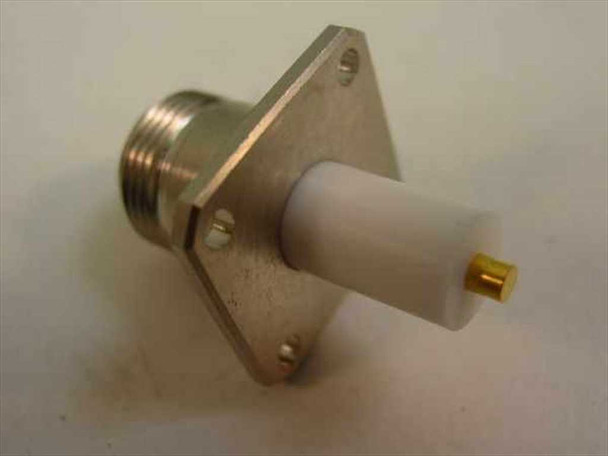

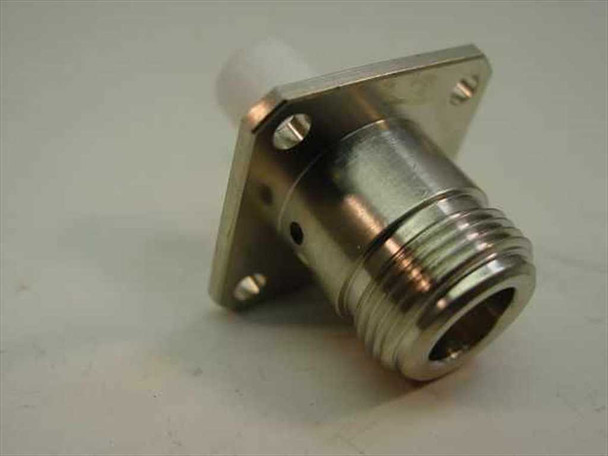

The MACOM AMP 3052-1201-10 is a panel-mount bulkhead female N-type RF coaxial connector with a 4-hole square flange mounting configuration and solder-pot center contact termination. Manufactured by MACOM (then operating as an AMP company division), this connector provides a robust, low-loss interface for mounting through panels, chassis walls, or bulkheads in RF and microwave transmission systems.
Specifications & What's Included
- Part Number: 3052-1201-10
- Manufacturer: MACOM (an AMP Company)
- FSCM: 61697
- Connector Type: N-Type Female (mating interface)
- Mount Style: Bulkhead / 4-Hole Square Flange Panel Mount
- Termination: Solder-Pot (center contact)
- Body/Flange Material: Nickel-plated stainless steel
- Dielectric: White PTFE
- Center Contact: Gold-plated solder-pot pin
- Mounting Holes: 4 corner holes on square flange
- Packaging: Original MACOM factory packaging, new and unused
Applications
N-type bulkhead female connectors are a standard building block in RF and microwave systems operating from DC through approximately 11 GHz. The bulkhead/flange-mount configuration is used wherever a coaxial feedthrough is needed in a chassis wall, instrument panel, or enclosure — allowing an external cable to connect to internal circuitry or transmission lines. The solder-pot termination style accepts a stripped coaxial cable center conductor soldered directly into the pot, making it well-suited for semi-rigid, rigid, or flexible coax installations in communications equipment, antenna feed systems, test and measurement setups, radar systems, and broadcast RF infrastructure. N-type connectors are a long-established standard in the 50-ohm RF world, and this panel-mount variant is commonly found in base station equipment, signal distribution hardware, and laboratory test fixtures.
This MACOM AMP 3052-1201-10 Bulkhead Female N-Type Connector is new and unused. It comes in its original MACOM packaging with the part number label intact. The connector shows no wear or handling marks — the nickel-plated flange, PTFE dielectric, and gold-plated solder-pot center contact are all in clean, uninstalled condition. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
MACOM |
Model: |
3052-1201-10 |
MPN: |
3052-1201-10 |
SKU: |
20217 |
Type: |
Bulkhead Female N-Type RF Coaxial Connector |
Connector Type: |
N-Type Female |
Mount Type: |
Bulkhead / 4-Hole Flange Panel Mount |
Termination Style: |
Solder-Pot |
Gender: |
Female |
Number of Mounting Holes: |
4 |
Body Material: |
Nickel-Plated Stainless Steel |
Dielectric Material: |
PTFE (White) |
Center Contact Material: |
Gold-Plated |
Seller Notes: |
Connector only — no cable or accessories included. |
Country/Region of Manufacture: |
United States |
FSCM: |
61697 |
Manufacturer: |
MACOM (an AMP Company) |
Condition Notes: |
This MACOM AMP 3052-1201-10 Bulkhead Female N-Type Connector is new and unused, in original packaging. Nickel-plated flange, PTFE dielectric, and gold solder-pot center contact are all clean and uninstalled. |
