Pittman GM8712-31 GM 8000 LO-COG Brush DC Gearmotor 19.1VDC 60.5:1 Ratio

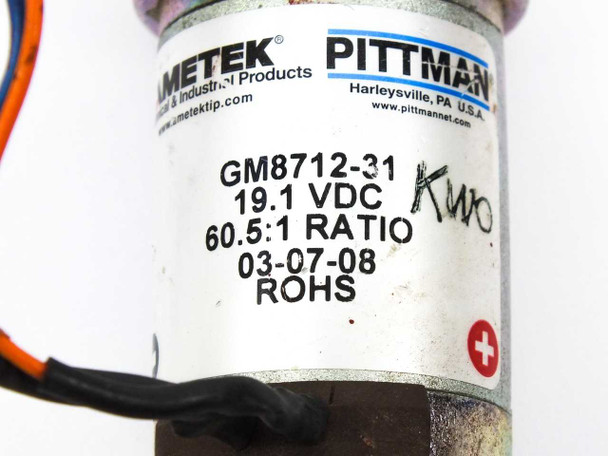

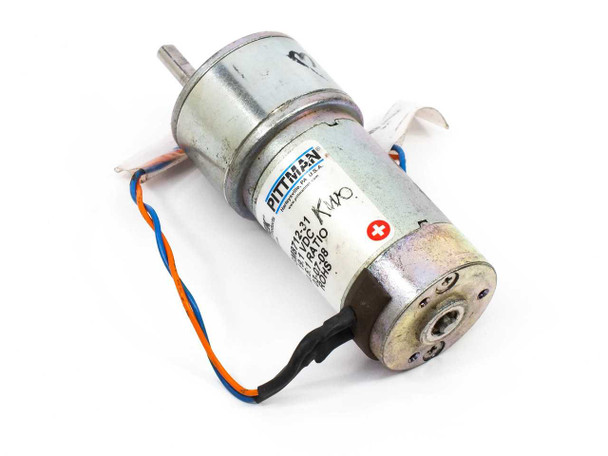

The Pittman GM8712-31 is a compact brush-commutated DC gearmotor from Ametek's Pittman GM 8000 Series, featuring the brand's proprietary LO-COG design that minimizes cogging torque for smooth, low-noise rotation at low speeds. At 19.1 VDC with a 60.5:1 integral gear reduction, it delivers up to 0.325 Nm of continuous torque at a maximum output speed of 720 RPM. The motor terminates in a 2-pin connector with blue and orange lead wires.
Specifications & What's Included
- Model: GM8712-31
- Series: Pittman GM 8000 (Ametek)
- Motor Type: LO-COG Brush Commutated DC Gearmotor
- Rated Voltage: 19.1 VDC
- Gear Ratio: 60.5:1
- Maximum Output Speed: 720 RPM
- Continuous Torque: 0.325 Nm
- Overall Dimensions: 3.75 x 1.5 x 1.5 in
- Shaft Diameter: 0.20 in
- Shaft Length: 0.6875 in

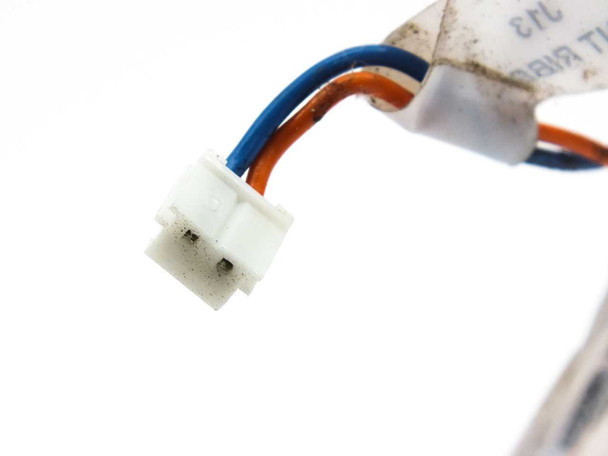

- Output Connector: 2-pin JST-style white connector with blue and orange lead wires
- Compliance: RoHS
- Date Code: 03-07-08
- Manufactured in Harleysville, PA, USA
Applications
Pittman LO-COG gearmotors from the GM 8000 Series are widely used in precision motion control applications where smooth, low-cogging rotation is critical. The "J13 Print Ribbon" tag attached to this unit's lead wires indicates it was originally used in a printer or document-handling mechanism — a common application for this motor series, which appeared in a range of office automation, medical, and industrial equipment from the 2000s onward. General applications include document feeders, label and ticket printers, lab instruments, robotic joints, camera and optical positioning stages, and other low-speed, moderate-torque automation tasks. The 60.5:1 gear reduction makes this motor well suited for applications requiring controlled, precise shaft movement rather than high speed.

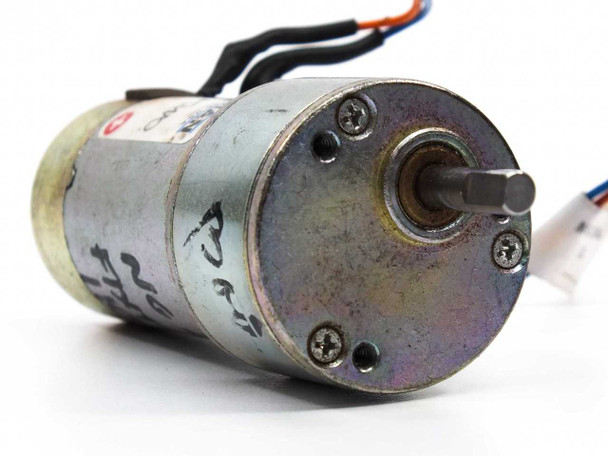

This Pittman GM8712-31 GM 8000 Series LO-COG brush-commutated DC gearmotor is in used condition, pulled from a working environment where it was previously in service. It has not been powered or tested at our facility. The motor body shows typical used-equipment wear including some surface discoloration and handling marks; handwritten markings are visible on the housing. The lead wires and 2-pin connector appear intact. A paper label tag ("J13 Print Ribbon") is attached to the lead wires, indicating its prior application. Please review our photos for a full view of the cosmetic condition and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Pittman (Ametek) |
Model: |
GM8712-31 |
MPN: |
GM8712-31 |
Type: |
Brush Commutated DC Gearmotor |
Series: |
GM 8000 |
SKU: |
49192 |
Rated Voltage: |
19.1 VDC |
Gear Ratio: |
60.5:1 |
Max Speed (RPM): |
720 RPM |
Continuous Torque: |
0.325 Nm |
Motor Technology: |
LO-COG Brush Commutated |
Shaft Diameter: |
0.20 in |
Shaft Length: |
0.6875 in |
Overall Dimensions: |
3.75 x 1.5 x 1.5 in |
Connector Type: |
2-pin JST-style white connector |
Compliance: |
RoHS |
Manufacture Date Code: |
03-07-08 |
Country/Region of Manufacture: |
United States |
Form Factor: |
Inline Gearmotor, Cylindrical |
Seller Notes: |
Motor with attached lead wires and 2-pin connector. No mounting hardware included. |
Condition Notes: |
This Pittman GM8712-31 LO-COG DC gearmotor is in used condition, pulled from a working environment. Not tested at our facility. Motor shows typical wear and handling marks. Lead wires and 2-pin connector appear intact. |
