American Technology

American Technology Labs 5620 Two Channel CSU/DSU Pacific Bell DTE

(No reviews yet) Write a Review
SKU:
13123
MPN:
5620
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout

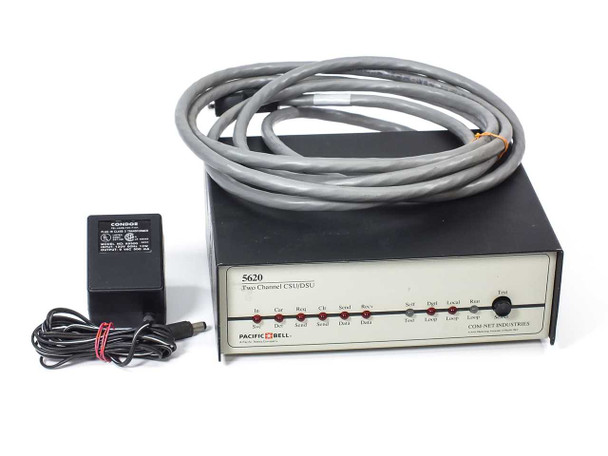

  • American Technology Labs 5620 Two Channel CSU/DSU front panel view with Condor power supply and gray interface cable
  • American Technology Labs 5620 CSU/DSU rear panel showing two DB-25 DTE ports, power input, and Line RJ port with power supply

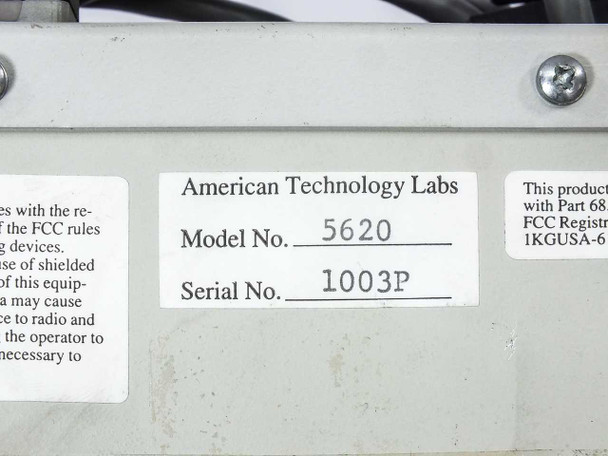

  • American Technology Labs 5620 bottom label showing Model No. 5620, Serial No. 1003P, and FCC registration information
  • American Technology Labs 5620 Two Channel CSU/DSU front panel close-up showing Pacific Bell branding, LED indicators, and Test/Select button
  • American Technology Labs 5620 CSU/DSU rear panel showing Channel 1 and Channel 2 DB-25 connectors, Power button, and Line port
  • American Technology Labs 5620 CSU/DSU front view with included gray DB-25 interface cable
  • American Technology Labs 5620 Two Channel CSU/DSU front panel and included Condor Class 2 power supply close-up
$50.00
Was: $100.00
Current Stock: 1

Sold Out

Description

American Technology Labs 5620 Two Channel CSU/DSU Pacific Bell DTE

Two-channel Channel Service Unit/Data Service Unit for Pacific Bell DTE applications. This desktop unit provides line conditioning and signal conversion for dual T1 or fractional T1 circuits, with DB-25 connectors on each channel.

Specifications & What's Included

  • Model: 5620 (American Technology Labs)
  • Two channels with DB-25 (25-pin D-sub) DTE connectors
  • RJ-11 modular rear line port
  • Power: 120V AC, 60Hz via included Condor Class 2 transformer
  • Includes Condor power supply and gray DB-25 interface cable
  • Desktop form factor

Applications

CSU/DSU units were standard equipment in telecom installations for interfacing with carrier T1 lines. The 5620 supported Pacific Bell and other carriers' DTE configurations, used in corporate networks, branch office connectivity, and legacy data communications setups. Compatible with systems requiring dual-channel T1 termination and line conditioning.

Condition: Used
This American Technology Labs 5620 Two Channel CSU/DSU has been inspected and appears to be in good condition. The unit shows light cosmetic wear typical of previously used telecom equipment — minor scuffing on the metal chassis is visible, but the front panel, LED indicators, and controls look intact and undamaged. The rear DB-25 DTE connectors and Line port appear clean. Comes with a Condor plug-in Class 2 transformer (power supply) and a gray DB-25 interface cable as shown in the photos. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
American Technology Labs
Model:
5620
MPN:
5620
Type:
Two Channel CSU/DSU
SKU:
13123
Condition:
Used – Inspected
Number of Channels:
2
Interface Type:
DTE (Data Terminal Equipment)
Connector Type - DTE Ch1:
DB-25 (25-pin D-sub)
Connector Type - DTE Ch2:
DB-25 (25-pin D-sub)
Line Connector:
RJ-11 / modular (rear Line port)
Form Factor:
Desktop
Power Requirements:
120V AC, 60Hz (via Condor Class 2 transformer)
Power Supply Included:
Yes – Condor plug-in Class 2 transformer
Associated Carrier / Branding:
Pacific Bell / Com-Net Industries
Seller Notes:
Includes Condor power supply and gray interface cable with DB-25 connectors.
Country/Region of Manufacture:
United States
Condition Notes:
American Technology Labs 5620 Two Channel CSU/DSU. Inspected and in good used condition with light cosmetic wear on chassis. Includes Condor power supply and DB-25 interface cable. Please contact us with any questions.
