American Sterilizer Portaclave B604095-010 Portable Autoclave 208V 3Ph 400Hz

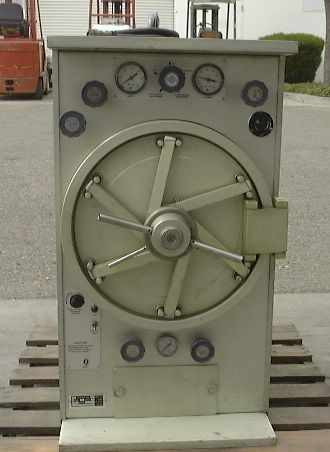

The American Sterilizer Portaclave B604095-010 is a portable pressure autoclave designed for sterilization using either electric heat or an external steam supply. Built by American Sterilizer Company of Erie, PA — a long-established name in sterilization equipment — this Model IV unit features a front-loading cylindrical chamber secured by a large wheel-latch door. Multiple pressure and temperature gauges are mounted on the top panel for monitoring the sterilization cycle. An important operational note: this unit runs on 400 Hz power rather than standard 60 Hz, which significantly limits compatible power sources and installation environments.
Specifications & What's Included
- Manufacturer: American Sterilizer Company, Erie, PA, USA
- Catalog No.: PORTACLAVE B604095-010
- Model: IV
- Heat source: A/C electric heat or external steam supply
- Voltage: 208V
- Maximum amperage: 26A
- Phase: 3-phase
- Frequency: 400 Hz (non-standard — see power note below)
- Maximum power: 7.5 kW
- Chamber dimensions: 15.75" diameter x 24" deep
- Exterior dimensions: 21"W x 32"D x 36"H
- Front-loading cylindrical chamber with perforated interior walls
- Large circular wheel-latch door with gasket seal
- Multiple pressure and temperature gauges on top panel

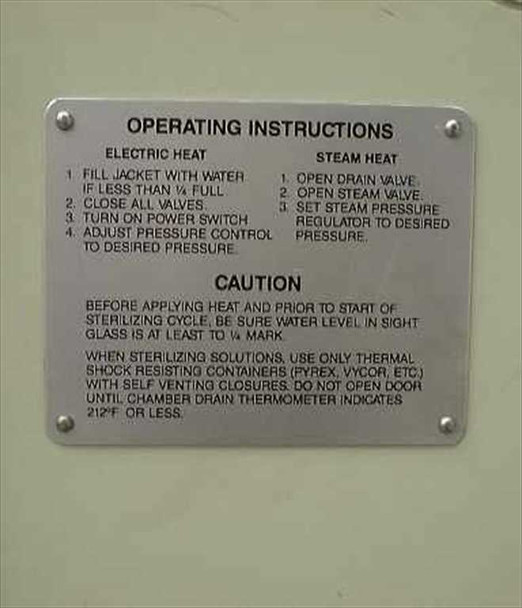

- Operating instructions placard mounted on unit (electric heat and steam heat modes)
- Included: 6 shelf brackets, water feed hose, exhaust hose
- Not included: manual, additional peripherals
- ⚠️ Power note: 400 Hz frequency requirement is non-standard. This unit cannot be operated on standard 60 Hz facility power without a frequency converter. Verify your power source compatibility before purchasing.
Applications
Autoclaves of this type are used to sterilize equipment, instruments, glassware, and solutions by applying pressurized steam or moist heat — a method that kills bacteria, spores, and other microorganisms far more reliably than dry heat or chemical disinfection alone. The Portaclave design from American Sterilizer Company was developed as a self-contained, movable sterilization unit, useful in settings where a fixed, plumbed-in autoclave is impractical or where sterilization capability needs to move between locations. The dual-mode operation (electric heat or external steam) gives it flexibility in environments that have either an available steam line or only electrical power. The 400 Hz power requirement is characteristic of equipment originally designed for military, aerospace, or certain shipboard applications, where 400 Hz power systems are standard. As a result, this unit is commonly sought for those specialized environments, as well as for facilities that already operate 400 Hz motor-generator sets or frequency converters. It is also used in laboratories and industrial settings where portable, pressure-vessel sterilization is needed and compatible power is available.
This American Sterilizer Portaclave B604095-010 portable autoclave was pulled from a working environment and appears to be in good used condition. The exterior paint shows the typical aging and minor surface wear you'd expect on equipment of this type and era. The door seal, gauges, and wheel-latch mechanism are all present and appear intact as shown in our photos. Six shelf brackets, a water feed hose, and an exhaust hose are included. No manual or additional peripherals are included. Please note: this unit requires a 400 Hz power source, which limits where it can be used — review your facility's power specifications before purchasing. Please view our photo set and contact us if you have any questions.
Thanks for your interest. Recycled Goods Inc., Ventura, CA.
FDA Regulation and Certification: The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not purchase this item unless you are an authorized purchaser. If the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping.
Upon receipt, it is the BUYER'S responsibility to have this instrument checked and certified for use by a qualified Technician prior to placing it into use or service.
Warranty Information
Additional Information
Brand: |
American Sterilizer |
Model: |
Portaclave B604095-010 |
MPN: |
B604095-010 |
Type: |
Portable Autoclave / Pressure Sterilizer |
SKU: |
11277 |
Catalog Number: |
PORTACLAVE B604095-010 |
Model Number: |
IV |
Voltage: |
208V |
Phase: |
3-Phase |
Frequency: |
400 Hz |
Max Amps: |
26A |
Max Kilowatts: |
7.5 kW |
Heat Source: |
Electric (A/C) or Steam |
Chamber Dimensions: |
15.75" diameter x 24" deep |
Exterior Dimensions: |
21"W x 32"D x 36"H |
Country/Region of Manufacture: |
United States |
Manufactured By: |
American Sterilizer Company, Erie, PA, USA |
Power Note: |
400 Hz power requirement limits usage to compatible power sources |
Included Accessories: |
6 shelf brackets, water feed hose, exhaust hose |
Manual Included: |
No |
Seller Notes: |
Includes 6 shelf brackets, water feed hose, and exhaust hose. No manual included. |
Condition Notes: |
This American Sterilizer Portaclave B604095-010 autoclave was pulled from a working environment and is in good used condition. Includes 6 shelf brackets, water feed hose, and exhaust hose. No manual. Note: requires 400 Hz power source. |
California Prop 65 Warning: |
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov |
