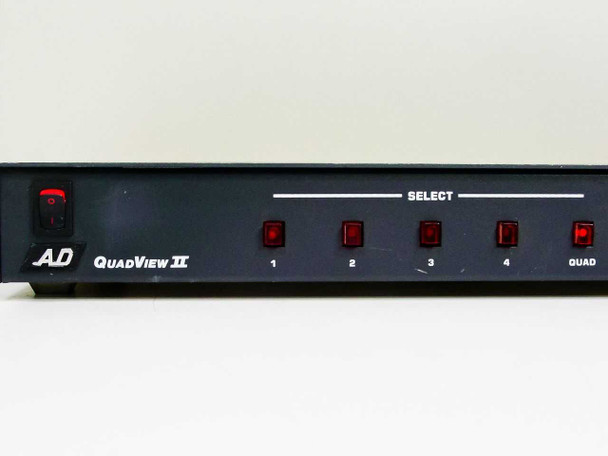

American Dynamics AD1473 QuadView II 4-Channel Video Quad Multiplexer 120V
The American Dynamics AD1473 QuadView II is a 4-channel video quad multiplexer designed for security and surveillance applications. It digitally captures video from up to four standard video sources, reduces each to quarter-screen size, and combines them into a single composite quad display on one output. A second output provides full-screen call-up of any individual input for closer viewing. Front-panel pushbuttons allow selection of individual channels or the full quad view, with Freeze, Run, and Alarm function controls.
Specifications & What's Included
- Model: American Dynamics AD1473 QuadView II
- Type: 4-Channel Video Quad Multiplexer
- Video Inputs: 4 x BNC, 75 Ohm
- Video Outputs: 2 x BNC — one Quad display output, one Call (full-screen) output
- Front Panel — SELECT buttons: Channel 1, 2, 3, 4, Quad
- Front Panel — FUNCTION buttons: Freeze, Run, Alarm
- Rear Panel: alarm inputs/outputs and remote control inputs via terminal strip
- Power: 120V AC, 60Hz, 5W
- Form Factor: 1U rackmount chassis
- Date Code: 93 6 (June 1993)
- FCC: Complies with Class B computing device limits, Part 15
- Includes: AC power cord (attached)
Applications
The AD1473 QuadView II was designed for closed-circuit television (CCTV) security and surveillance installations, where operators needed to monitor multiple camera feeds simultaneously on a single monitor. Quad multiplexers like this one were a standard component of analog CCTV systems from the late 1980s through the early 2000s, found in retail, commercial, industrial, and institutional security control rooms. The dual-output design allowed a single monitor to show the combined quad view while a second monitor or VCR could record individual full-screen camera feeds on call. American Dynamics was a well-established name in the commercial security video market during this era. This type of equipment has largely been superseded by digital video recorders (DVRs) and IP-based camera systems, but units like this remain in use in legacy analog CCTV installations that have not yet been upgraded.
This American Dynamics AD1473 QuadView II 4-Channel Video Multiplexer is being sold as-is for parts or repair. The unit does power on, but it is not guaranteed functional and has not been fully tested. It is being offered in its current state with no warranty of working condition. Please review our photos carefully and contact us with any questions before purchasing. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
American Dynamics |
Model: |
AD1473 |
MPN: |
AD1473 |
Type: |
4-Channel Video Quad Multiplexer |
SKU: |
37009 |
Condition: |
As-Is / For Parts or Not Working |
Number of Channels: |
4 |
Video Inputs: |
4 x BNC (75 Ohm) |
Video Outputs: |
2 x BNC — Quad output and Call/full-screen output |
Input Impedance: |
75 Ohm |
Power Requirements: |
120V AC, 60Hz, 5W |
Alarm I/O: |
Alarm inputs and outputs — terminal strip on rear |
Remote Control: |
Remote control input — rear terminal strip |
Front Panel Controls: |
Select (1, 2, 3, 4, Quad); Function (Freeze, Run, Alarm) |
Form Factor: |
Rackmount, 1U |
Country/Region of Manufacture: |
United States |
Date Code: |
93 6 (June 1993) |
FCC Compliance: |
Class B computing device, Part 15 |
Seller Notes: |
Unit only — no accessories visible. Sold as-is for parts or repair. |
Condition Notes: |
American Dynamics AD1473 QuadView II video multiplexer sold as-is for parts or repair. Unit powers on but is not tested or guaranteed functional. Please view photos and contact us with questions. |
