Description
ALR 2196003-00-200 PS/2 Keyboard Advanced Logic Research 101-Key IBM PC 1997

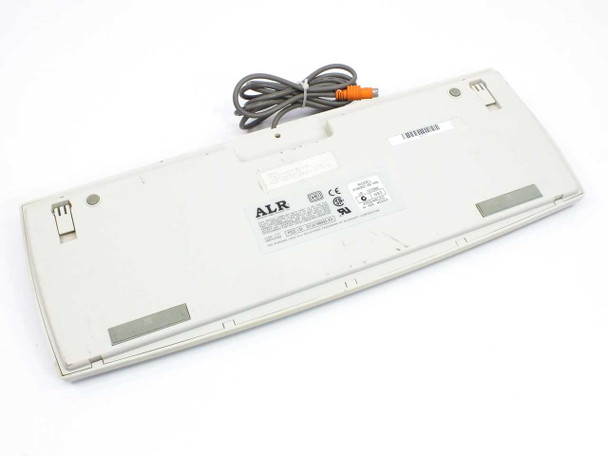

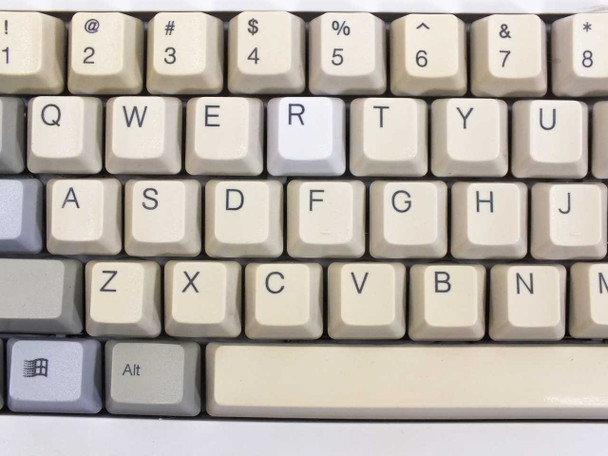

The ALR 2196003-00-200 is a 101-key PS/2 keyboard made by Advanced Logic Research, Inc. and manufactured by Maxi Switch in Mexico. It connects via a 6-pin mini-DIN PS/2 interface — instantly recognizable by its orange connector — and is compatible with IBM PC-compatible desktops equipped with a PS/2 keyboard port. The keyboard features a full 101-key QWERTY layout with separate numeric keypad, cursor cluster, and function key row.
Specifications & What's Included
- Brand: ALR (Advanced Logic Research, Inc.)
- Part Number: 2196003-00-200
- Model: 2196003-XX-XXX

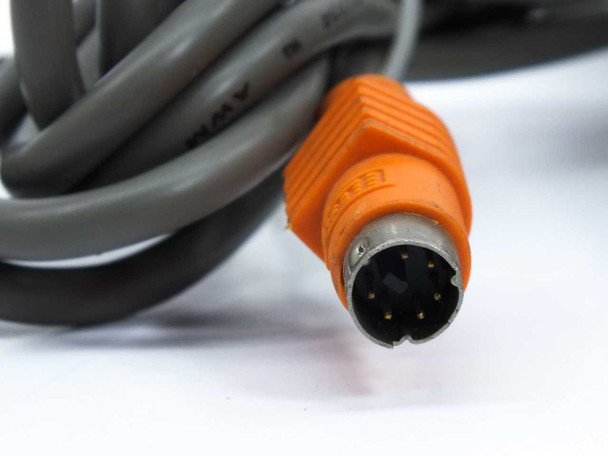

- Interface: PS/2 (6-pin mini-DIN, orange connector)
- Number of Keys: 101 (full-size QWERTY layout)
- Switch Manufacturer: Maxi Switch
- Power: 5 VDC, 280mA Max

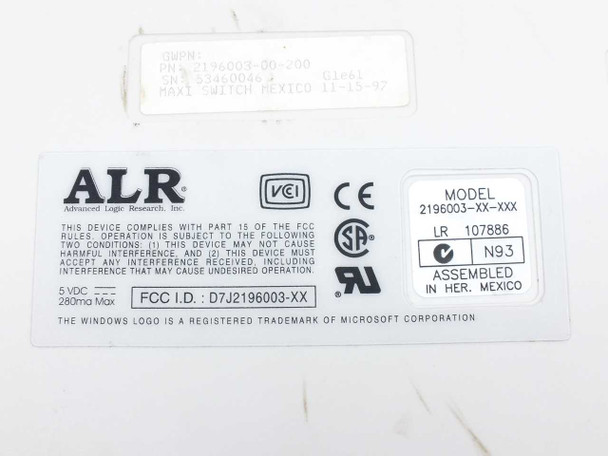

- FCC ID: D7J2196003-XX
- Certifications: FCC, CE, VCI, UL, SR
- Country of Manufacture: Mexico (assembled)
- Manufacture Date: November 15, 1997
- Includes: Keyboard with attached PS/2 cable only

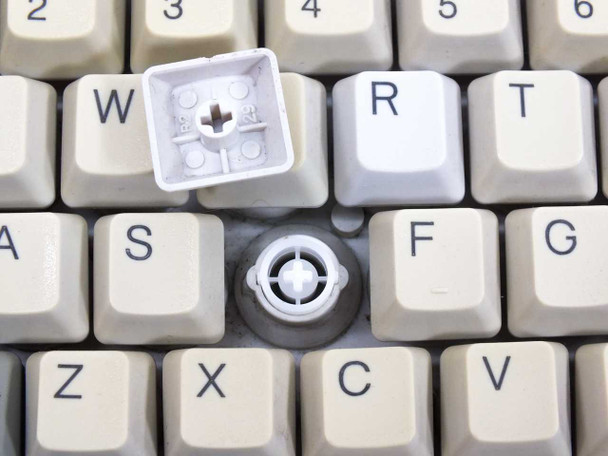

- Note: E keycap removed in photos to show switch mechanism — keycap and switch are both present
Applications
ALR (Advanced Logic Research) was a California-based PC manufacturer active from the mid-1980s through the late 1990s, producing workstations and servers for business and engineering use. This keyboard dates from 1997 and was designed for use with ALR's PS/2-port desktop and tower systems of that era, though it is compatible with any IBM PC-compatible machine that accepts a standard PS/2 keyboard. PS/2 keyboards like this one were the dominant standard for desktop PCs from the early 1990s through the mid-2000s, when USB gradually took over. The PS/2 interface remains usable today on older workstations and servers that retain a PS/2 port, and many modern motherboards still include one. This keyboard is a typical example of the late-1990s 101-key desktop keyboard form factor — the layout that became the standard for Windows-era PCs, adding the Windows key alongside the traditional typewriter and numeric sections.
This ALR Advanced Logic Research 2196003-00-200 PS/2 Keyboard has been inspected and is in good used condition consistent with its late-1990s vintage. The beige housing shows the light yellowing typical of plastics from this era, and the keycaps display normal wear. One keycap (the E key) is removed in our photos to show the switch mechanism underneath — the keycap and key switch are both present and accounted for. The orange PS/2 connector and cable are intact. The keyboard was pulled from a working PC environment where it was previously in use. It has not been bench-tested at our facility. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
ALR (Advanced Logic Research) |
Model: |
2196003-00-200 |
MPN: |
2196003-00-200 |
Type: |
PS/2 Keyboard |
SKU: |
27980 |
Interface: |
PS/2 (6-pin mini-DIN) |
Connector Type: |
PS/2 Mini-DIN 6-pin (orange) |
Number of Keys: |
101 |
Keyboard Layout: |
QWERTY US |
Switch Manufacturer: |
Maxi Switch |
Power Requirements: |
5 VDC, 280mA Max |
Compatible With: |
IBM PC compatible systems with PS/2 port |
Country/Region of Manufacture: |
Mexico |
FCC ID: |
D7J2196003-XX |
Manufacture Date: |
November 15, 1997 |
Color: |
Beige / Gray |
Seller Notes: |
Keyboard only with attached PS/2 cable. One keycap (E) removed in photos — key switch and cap are present. |
Condition Notes: |
This ALR 2196003-00-200 PS/2 Keyboard is in good used condition with light yellowing and normal wear. The E keycap is removed in photos but is present. Orange PS/2 cable intact. Pulled from a working environment; not tested at our facility. |
