Alps DFC642B09A 1.2MB 5.25 Inch Internal Floppy Disk Drive Half Height

Alps DFC642B09A 1.2MB 5.25 Inch Internal Floppy Disk Drive Half Height

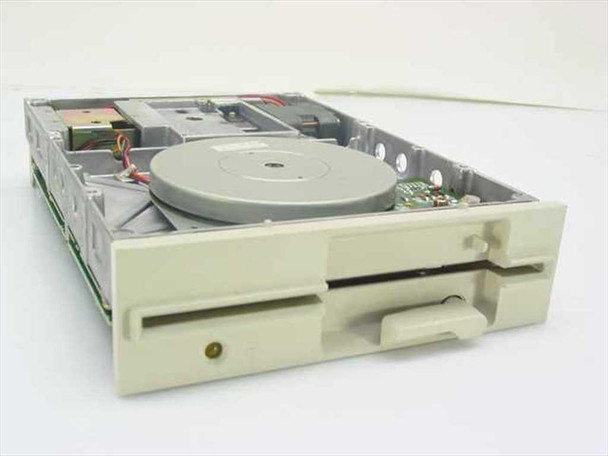

The Alps DFC642B09A is a half-height 5.25" internal floppy disk drive capable of reading and writing 1.2MB high-density (HD) floppy disks, as well as 360KB double-density (DD) disks. It connects via a standard 34-pin floppy ribbon cable and draws power from a 4-pin Molex connector, making it a direct-fit replacement for most IBM-compatible desktop PCs of the era.

Specifications & What's Included

• Model: Alps DFC642B09A
• Capacity: 1.2MB (high-density) / 360KB (double-density)
• Disk Size: 5.25 inch
• Height: Half height
• Interface: 34-pin floppy ribbon cable
• Power: 4-pin Molex connector
• Certifications: UL, CSA (visible on bottom label)
• Drive only — no cable or bracket included

Applications

The 5.25" 1.2MB floppy drive was the standard high-density drive format for IBM PC AT and compatible systems throughout the mid-1980s to early 1990s. These drives were used in 286, 386, and early 486-class PCs for software distribution, data transfer, and system boot functions — at a time when the 5.25" format was giving way to the smaller 3.5" standard. Today they remain in demand for vintage PC restoration, retro computing builds, legacy industrial and embedded systems that still rely on floppy-based software loading, and data recovery from old 5.25" disks. Alps was a well-regarded Japanese OEM manufacturer whose drives appeared in many name-brand systems of the era, including IBM, Compaq, and compatible clones.
