Description
Alloy Products Corp 5 Gallon Stainless Pressure Container 140 PSI T304

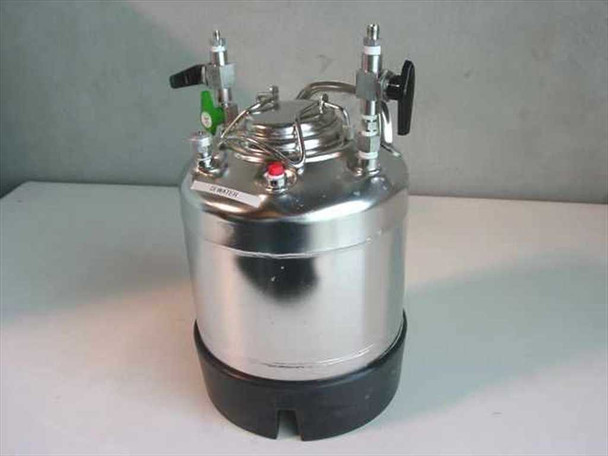

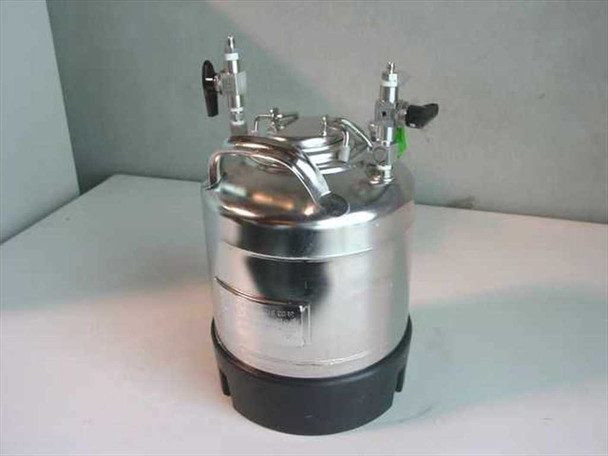

This is a 5-gallon stainless steel pressure container manufactured by Alloy Products Corp, rated for a maximum working pressure of 140 PSI at 100°F. Built from T304 stainless steel, the vessel features NPT female pipe fittings on the top head for inlet, outlet, and pressure connections, a Teflon O-ring lid seal, and a rubber skirt or foot ring base for stable bench use. The polished stainless body is clean and structurally sound as shown in the photos.
Specifications & What's Included
- Manufacturer: Alloy Products Corp
- Capacity: 5 Gallon
- Material: T304 Stainless Steel
- Inside Diameter: approximately 9 inches
- Maximum Working Pressure: 140 PSI @ 100°F
- Connections: NPT female pipe fittings on top head
- Seal: Teflon O-Ring
- Base: Rubber skirt / foot ring
- Serial Number: 92377 (visible on nameplate)
- Includes: container with top-head fittings and valve hardware, rubber foot ring
Applications
Alloy Products Corp stainless steel pressure containers like this one are standard equipment in laboratory, industrial, and process environments where liquids or gases must be stored or dispensed under controlled pressure. Common uses include pressurized fluid dispensing systems, solvent or chemical transfer, spray systems, pilot-plant chemical processing, and pressurized sampling or mixing applications. The T304 stainless steel construction makes these vessels well-suited for use with a wide range of aqueous solutions, solvents, and mild chemicals. The NPT fittings on the top head allow easy connection to standard tubing, regulators, gauges, and pneumatic lines. Vessels of this type are also frequently used in semiconductor fabrication, pharmaceutical manufacturing, food processing pilot lines, and general laboratory research — anywhere a compact, corrosion-resistant pressurized container is needed. The rubber foot ring provides bench stability and protects work surfaces during use.
This Alloy Products Corp 5-gallon T304 stainless steel pressure container was pulled from a cellular equipment manufacturing facility and appears to be in good used condition. The polished stainless body is clean with minimal wear, and the top-head NPT fittings, valve hardware, and rubber foot ring all appear intact as shown in the photos. This item has not been pressure-tested at our facility. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Alloy Products Corp |
Model: |
5 Gallon Pressure Container |
MPN: |
92377 |
SKU: |
19330 |
Type: |
Stainless Steel Pressure Vessel |
Capacity: |
5 Gallon |
Maximum Working Pressure: |
140 PSI @ 100°F |
Material: |
T304 Stainless Steel |
Inside Diameter: |
9 inches (approx.) |
Inlet/Outlet Connection: |
NPT Female Pipe Fittings (top head) |
Seal Type: |
Teflon O-Ring |
Base/Foot: |
Rubber Skirt / Foot Ring |
Country/Region of Manufacture: |
United States |
Form Factor: |
Benchtop / Portable |
Seller Notes: |
Container only — includes top-head fittings and rubber foot ring as shown. |
Condition Notes: |
This Alloy Products Corp 5-gallon T304 stainless pressure container was pulled from a cellular equipment manufacturer and is in good used condition. Top-head NPT fittings, valve hardware, and rubber foot ring appear intact. |
