Description

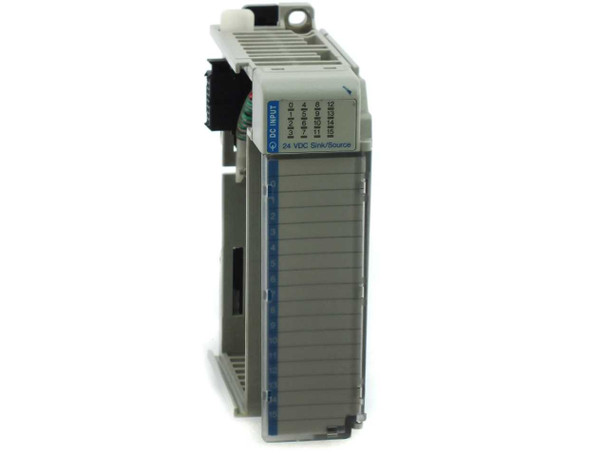

Allen-Bradley 1769-IQ16 Compact I/O 16-Point DC Sink/Source Input Module 24VDC
The Allen-Bradley 1769-IQ16 is a 16-point digital DC input module in the Compact I/O family from Rockwell Automation. It accepts 24V DC sink or source field wiring and occupies a single slot on the 1769 bus. Series A, Revision 2, Firmware Rev 3.1.
Specifications & What's Included
- Catalog Number: 1769-IQ16
- Series A, Rev 2 — Firmware Rev 3.1
- Input points: 16 (8 points per group)
- Voltage category: 24V DC, sink/source
- Operating voltage range: 10–30V DC @ 30°C (86°F) / 10–26.4V DC @ 60°C (140°F)
- On-state voltage min: 10V DC
- On-state current min: 2 mA
- Off-state voltage max: 5V DC
- Off-state current max: 1.5 mA
- Input delay (on/off): 8 ms
- Inrush current max: 250 mA
- Input impedance: 3 kΩ (nominal)
- Bus current draw @ 5.1V: 115 mA; @ 24V: 0 A
- Heat dissipation max: 3.55 W
- Isolation: 1200V AC for 1s or 1697V DC for 1s (input point to bus and group to group); 75V DC working voltage (IEC Class 2 reinforced insulation)
- Slot width: 1
- Dimensions (H × W × D): 118 × 35 × 87 mm (4.65 × 1.38 × 3.43 in.)
- Height with mounting tabs: 138 mm (5.43 in.)
- Hazardous location: Class I Div 2 Group A, B, C, D
- Certifications: UL Listed, CE, EQPT CL2 N223
- Country of manufacture: Malaysia
- Includes: module only — no cables or mounting hardware
Applications
The 1769 Compact I/O family is used with Allen-Bradley CompactLogix programmable automation controllers (PACs) as well as MicroLogix 1500 and certain SLC 500 systems. Digital input modules like the 1769-IQ16 read the on/off state of field devices — pushbuttons, limit switches, proximity sensors, photoelectric sensors, and relay contacts — and pass that data to the controller over the 1769 backplane bus. The sink/source input design accepts both sinking (NPN) and sourcing (PNP) field wiring, which simplifies integration with a wide range of sensor types commonly used in machine control, conveyor systems, packaging lines, and general discrete manufacturing automation. The 1769 platform became widely adopted in the 2000s and 2010s as a mid-size, DIN-rail-friendly alternative to the larger ControlLogix rack system, and 1769 I/O modules remain in active use in facilities that have standardized on CompactLogix.
This Allen-Bradley 1769-IQ16 Compact I/O 16-point DC input module has been visually inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in service, but has not been powered up or tested at our facility. The module body is clean with normal handling wear; the terminal block and bus connector appear intact. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Allen-Bradley |
Model: |
1769-IQ16 |
MPN: |
1769-IQ16 |
Secondary Model: |
459020-2171 |
SKU: |
51961 |
Type: |
Digital DC Input Module |
Series: |
Compact I/O |
Catalog Number: |
1769-IQ16 |
Hardware Revision: |
Series A, Rev 2 |
Firmware Revision: |
F/W Rev 3.1 |
Number of Input Points: |
16 (8 points per group) |
Voltage Category: |
24V DC Sink/Source |
Input Delay On: |
8 ms |
Input Delay Off: |
8 ms |
On-State Voltage Min: |
10V DC |
On-State Current Min: |
2 mA |
Off-State Voltage Max: |
5V DC |
Off-State Current Max: |
1.5 mA |
Inrush Current Max: |
250 mA |
Input Impedance: |
3 kΩ (nominal) |
Bus Current Draw @ 5.1V: |
115 mA |
Bus Current Draw @ 24V: |
0 A |
Heat Dissipation Max: |
3.55 W |
Isolation Voltage: |
1200V AC / 1697V DC; 75V DC working (IEC Class 2) |
Slot Width: |
1 |
Form Factor: |
Module / Card |
Dimensions (H x W x D): |
118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.) |
Height with Mounting Tabs: |
138 mm (5.43 in.) |
Hazardous Location Rating: |
Class I Div 2 Group A, B, C, D |
Product Code: |
67 |
Certifications: |
UL Listed, CE, EQPT CL2 N223 |
Country/Region of Manufacture: |
Malaysia |
Compatible With: |
CompactLogix, MicroLogix 1500, SLC 500 (1769 bus) |
Seller Notes: |
Module only — no cables or mounting hardware included. |
Condition Notes: |
This Allen-Bradley 1769-IQ16 Compact I/O input module has been visually inspected and appears to be in good condition. Pulled from a working environment; not tested at our facility. Please view photos and contact us with questions. |
