Allen Bradley 1494F-D60 Disconnect Switch 1494V-FS60 Fuse Block 40A 600V

Allen Bradley 1494F-D60 Disconnect Switch 1494V-FS60 Fuse Block 40A 600V

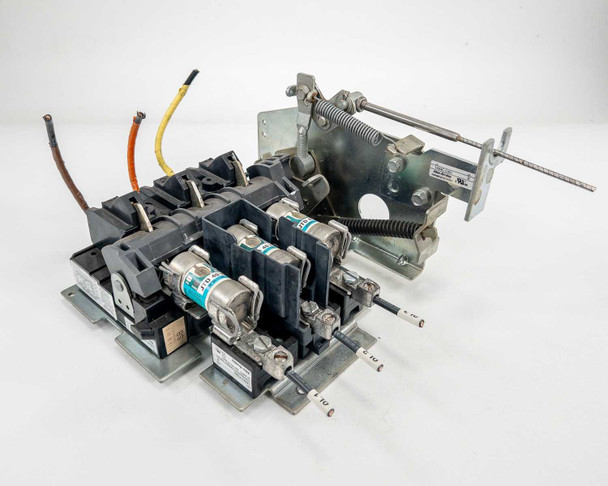

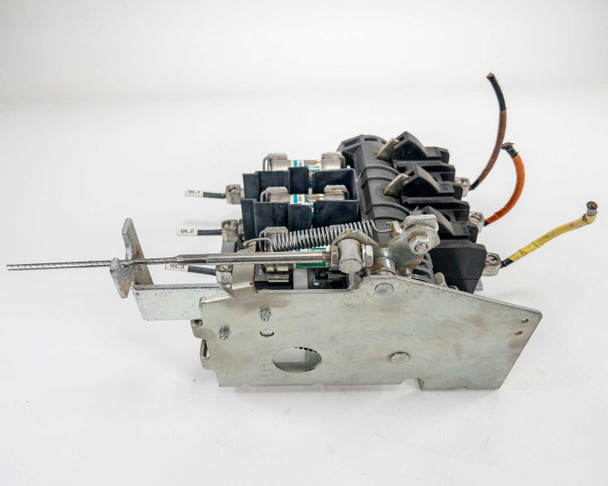

This is an Allen-Bradley 1494F-D60 cable-operated fusible disconnect switch assembly, complete with the 1494V-FS60 fuse block, 1494C-CM1 cable assembly, and three JTD 40 ID time-delay fuses. The 1494F series is a door-mounted, cable-actuated disconnect switch designed for motor branch circuit protection in industrial control enclosures and PLC cabinets — allowing the operator to safely de-energize the circuit from outside the panel door.

Specifications & What's Included

• Disconnect Switch: Allen-Bradley 1494F-D60, Series D (discontinued)
• Fuse Block: Allen-Bradley 1494V-FS60, Series D — 60A continuous, 600V max (discontinued)
• Cable Assembly: Allen-Bradley 1494C-CM1, Series B — door-mount cable actuator mechanism
• Fuses Included: 3x JTD 40 ID Class J Time-Delay Fuses, 40A
• Continuous Current Rating: 40 Amps
• Maximum Current Rating: 60 Amps
• Voltage Rating: 600V AC Maximum
• Number of Poles: 3
• Operation Type: Cable-operated (remote door-handle actuation)
• Certifications: UL Listed, CE marked
• Country of Manufacture: Mexico (per label)
• Wire Connector: Torque w/lug kit 1494R-N1 (per label)
• Wire Requirement: Copper wire only, rated for 75°C

Applications

The Allen-Bradley 1494F series cable-operated disconnect switches are used in industrial motor control centers (MCCs), PLC control panels, and machine tool enclosures where the disconnect handle must be mounted on the enclosure door and mechanically linked via cable to the switch mechanism inside. This configuration allows the circuit to be opened and locked out from outside the panel without opening the door — a standard requirement for OSHA lockout/tagout (LOTO) compliance in industrial facilities. These assemblies are commonly found in manufacturing automation systems, conveyor drives, pump panels, and other motor branch circuits up to 600V. The 1494F-D60 paired with a Class J fuse block is a well-established combination in Rockwell Automation / Allen-Bradley control cabinet designs, and replacement units are in steady demand for maintaining legacy panels. Both the 1494F-D60 disconnect and the 1494V-FS60 fuse block are discontinued products, making used assemblies like this one a practical source for maintenance and repair applications.
