Description
Alcatel 1004AC Rotary Vane Vacuum Pump 1/2 HP 115V Franklin Motor 1725 RPM

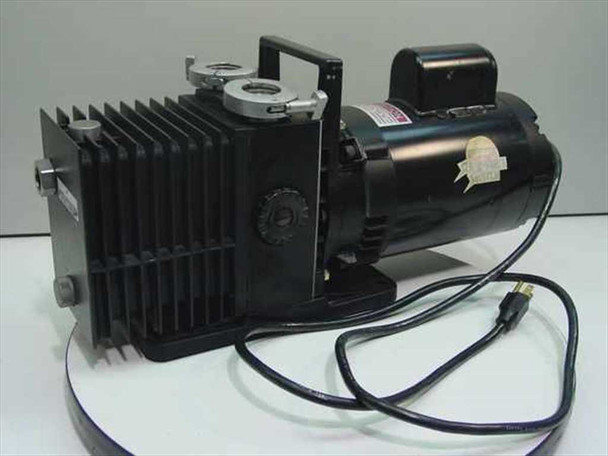

The Alcatel 1004AC is a single-stage rotary vane vacuum pump driven by a 1/2 HP Franklin Electric motor. Rotary vane pumps of this type draw air through an inlet port via eccentrically mounted vanes rotating inside a close-tolerance cylinder, compressing and expelling gas to generate vacuum. The 1004AC is a compact, benchtop-sized unit with a finned aluminum pump body for passive cooling and dual top-mounted inlet/outlet fittings. The unit shown includes an attached vacuum gauge on the inlet side.
Specifications & What's Included
- Manufacturer: Alcatel
- Model: 1004AC
- Pump Type: Rotary Vane Vacuum Pump
- Motor Brand: Franklin Electric
- Motor Model: 1101006401
- Horsepower: 1/2 HP
- Voltage: 115/208-230V (wired for 115V as shipped)
- Frequency: 60/50 Hz
- Phase: Single Phase (PH 1)
- Full Load Amps: 7.0A (115V) / 3.5A (208-230V)
- RPM: 1725 (60 Hz) / 1425 (50 Hz)
- Motor Frame: 56C
- Duty Cycle: Continuous
- Enclosure: DP (Drip-Proof)
- Insulation Class: Class B
- Thermal Protection: Type U Thermally Protected, Automatic Reset
- Max Ambient Temperature: 40°C
- Form Factor: Benchtop
- Includes: Pump unit with vacuum gauge attached to inlet port
Applications
Alcatel rotary vane vacuum pumps like the 1004AC are widely used in laboratory and light industrial settings where a reliable rough-vacuum source is needed. Common applications include vacuum filtration, degassing of liquids, freeze-drying support, vacuum ovens, thin-film deposition (as a roughing or backing pump), leak detection, and general laboratory vacuum lines. The compact 1/2 HP single-phase design makes it well suited for benchtop use in research labs, university settings, and small production environments where 115V single-phase power is the available supply. The 1004AC model dates from the era when Alcatel (later acquired by Adixen, now part of Pfeiffer Vacuum) was a leading French manufacturer of vacuum equipment for scientific and industrial markets, and units like this remain practical and serviceable today wherever a moderate rough-vacuum level is sufficient.
This Alcatel 1004AC rotary vane vacuum pump is in good used condition. The pump body and finned housing are clean and intact, the Franklin Electric motor shows normal light wear, and the vacuum gauge attached to the inlet port is included as shown. The unit has been inspected and appears ready for service. It is available for preview at our facility in Ventura, California. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Alcatel |
Model: |
1004AC |
MPN: |
1004AC |
Secondary Model: |
1101006401 |
Type: |
Rotary Vane Vacuum Pump |
SKU: |
20376 |
Motor Brand: |
Franklin Electric |
Motor Model: |
1101006401 |
Horsepower: |
1/2 HP |
Voltage: |
115/208-230V |
Power Requirements: |
115V, 60/50Hz, Single Phase |
Phase: |
Single Phase |
Frequency: |
60/50 Hz |
Full Load Amps: |
7.0A (115V) / 3.5A (208-230V) |
RPM: |
1725 (60Hz) / 1425 (50Hz) |
Frame: |
56C |
Duty Cycle: |
Continuous |
Enclosure: |
DP (Drip-Proof) |
Insulation Class: |
Class B |
Thermal Protection: |
Type U Thermally Protected, Automatic Reset |
Max Ambient Temperature: |
40°C |
Form Factor: |
Benchtop |
Seller Notes: |
Pump unit with vacuum gauge attached. No additional accessories included. |
Country/Region of Manufacture: |
France |
Condition Notes: |
This Alcatel 1004AC rotary vane vacuum pump is in good used condition. The pump body and Franklin motor show normal wear. Vacuum gauge included as shown. Available to preview in Ventura, CA. |
