Ajax 3T90272 16.25kVA 3-Phase Transformer 208V Delta Multi-Secondary Asco Box

(No reviews yet) Write a Review
SKU:
51557
MPN:
3T90272
Condition:
Used
Availability:
Usually ships within 1-2 business days; freight shipping required due to size and weight.
Weight:
190.00 LBS
Shipping:
Calculated at Checkout
  • Ajax 3T90272 16.25kVA three-phase transformer in ASCO junction box enclosure – top and front view on pallet

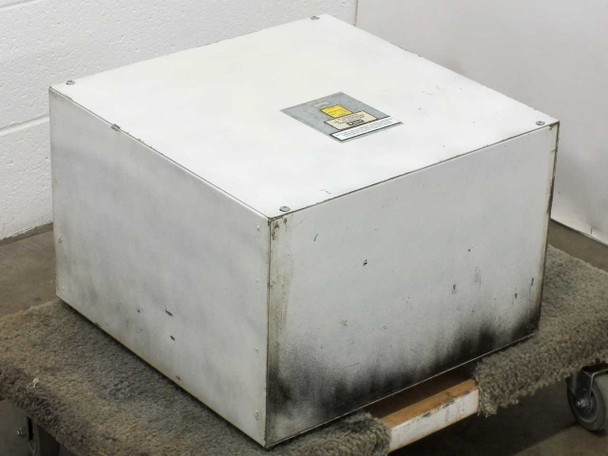

  • Ajax 3T90272 transformer in ASCO junction box – angled front-left view showing soiling and conduit knockouts

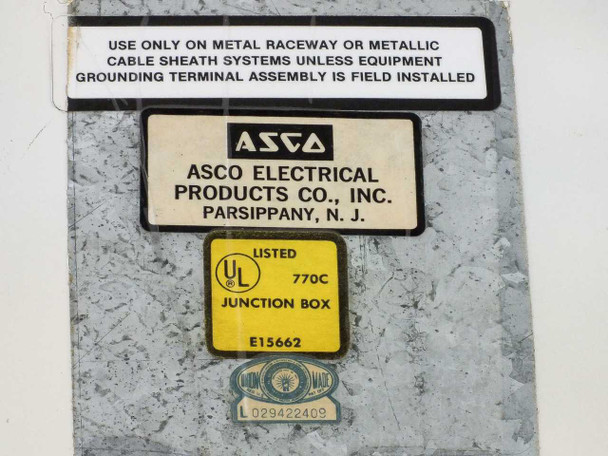

  • ASCO Electrical Products Co. junction box nameplate showing UL Listed 770C rating and E15662 file number
  • Ajax 3T90272 transformer core and coil assembly inside open enclosure showing multiple secondary lead wires
  • Ajax Transformer Co. nameplate showing 16.250 KVA, 3 phase, 60 Hz, 208 Delta primary, multiple secondary, P/N 3T90272
  • Transformer terminal block closeup showing H1, H2, H3 primary and X1, X2 secondary tap connections with color-coded leads
  • Ajax 3T90272 transformer interior view showing terminal block wiring, multiple lead wires, and nameplate
$650.00
Was: $1,300.00
Current Stock: 2

Sold Out

Description

Ajax 3T90272 16.25kVA 3-Phase Transformer 208V Delta Multi-Secondary Asco Box

Three-phase dry-type transformer rated 16.25 kVA with 208V delta primary and multiple secondary voltage outputs. Housed in a UL-listed ASCO electrical junction box with accessible terminal configurations.

Specifications & What's Included

  • Brand: Ajax Transformer Co., Model 3T90272
  • Power Rating: 16.25 kVA, 60 Hz
  • Primary: 208V Delta (H1, H2, H3 terminals)
  • Secondary: Multiple voltage taps (X1, X2 configuration)
  • Enclosure: ASCO junction box, UL Listed 770C (E15662)
  • Dimensions: 19" × 19" × 13"
  • Manufactured in Hackensack, NJ

Applications

Step-down transformers of this type are used in industrial control systems, machinery power distribution, and telecom installations where 208V three-phase input must be converted to lower secondary voltages. The multi-secondary configuration allows flexible voltage outputs for different circuit requirements within a single installation. Dry-type construction permits indoor mounting in equipment rooms and control centers.

Condition: Used
This Ajax Transformer Co. 3T90272 16.25kVA three-phase transformer has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in service. The exterior of the ASCO junction box enclosure shows moderate soiling and scuffing consistent with industrial use — visible in the photos. The transformer core, coil assembly, and terminal wiring appear intact and complete inside the enclosure. All primary (H1, H2, H3) and secondary (X1, X2) terminal connections are visible and appear undamaged. Due to its size and weight, this unit requires freight shipping. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Ajax Transformer Co.
Model:
3T90272
MPN:
3T90272
Type:
Dry-Type Three-Phase Transformer
SKU:
51557
Power Rating:
16.25 kVA
Phase:
Three Phase
Primary Voltage:
208V Delta
Secondary Voltage:
Multiple (variable output)
Frequency:
60 Hz
Winding Configuration:
Delta Primary
Enclosure:
ASCO Electrical Products Junction Box
UL Listing:
UL Listed 770C Junction Box (E15662)
Series/Shop Order No.:
S/O No. 90272
Serial Number (Internal):
9014
Dimensions:
19" x 19" x 13"
Terminal Configuration:
H1, H2, H3 primary; X1, X2 secondary taps visible
Country/Region of Manufacture:
USA (Hackensack, NJ)
Condition:
Used – Pulled from Working Environment
Seller Notes:
Transformer housed in ASCO UL-listed junction box; multiple secondary leads. Freight shipping required.
Condition Notes:
Ajax 3T90272 16.25kVA 3-phase transformer in good used condition. Inspected and pulled from a working environment. ASCO junction box shows industrial soiling/scuffing. Core, coil, and terminals appear intact. Freight shipping required.
View AllClose
