Airtech SS-MAC MAC-10FR Clean Room Fan Filter Unit 1 CMM 100VAC 25W 50/60Hz
The Airtech SS-MAC MAC-10FR is a compact fan filter unit (FFU) manufactured by Airtech Japan, Ltd., designed to provide filtered, low-turbulence airflow in clean room and controlled-environment applications. It draws air through a bottom intake fitted with a filter media and exhausts filtered air through the top grille, maintaining positive pressure and particulate control at the point of use.
Specifications & What's Included
- Manufacturer: Airtech Japan, Ltd.
- Model: MAC-10FR
- Series: SS-MAC
- Airflow: 1 CMM (35.3 CFM)
- Noise Level: 56 dBA
- Power: AC 100V, 50/60 Hz
- Current: 0.4A (50 Hz) / 0.5A (60 Hz)
- Power Consumption: 25 Watts
- Dimensions: 9.75 x 9.75 x 5.75 in (W x D x H)

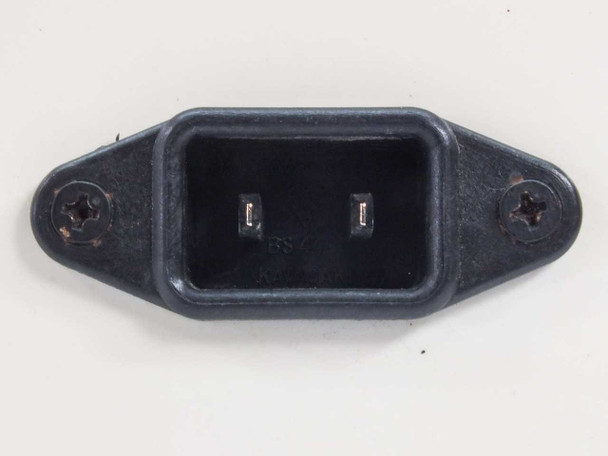

- Power Inlet: IEC C14 on unit body — intact

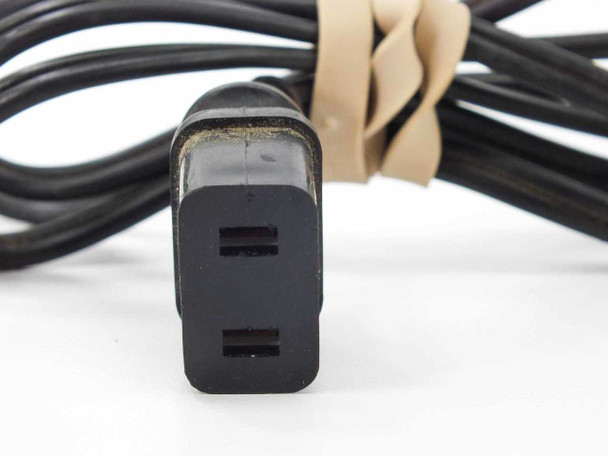

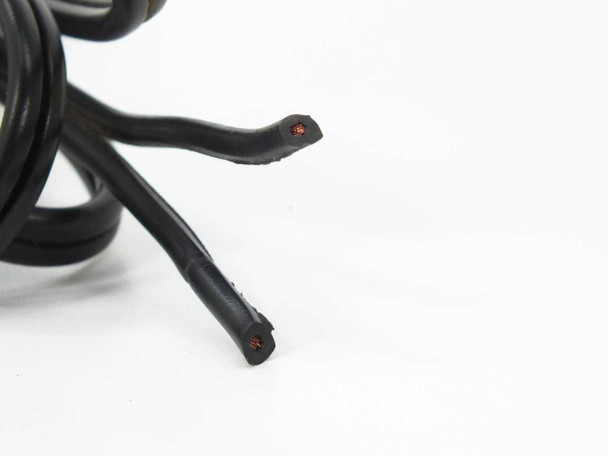

- Power Cord: Included; ends are bare wire (originally hard-wired into equipment — no wall plug attached)

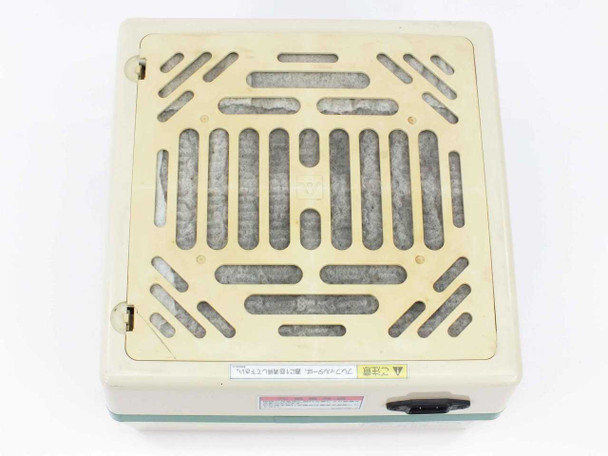

- Filter media present and visible through top exhaust grille
- Country of Manufacture: Japan
Applications
Fan filter units like the SS-MAC MAC-10FR are used in semiconductor fabrication, electronics assembly, pharmaceutical production, and other environments where airborne particulate contamination must be controlled. Compact FFUs of this type are typically positioned over work surfaces, benchtops, or process stations to deliver a continuous curtain of HEPA-filtered air, protecting sensitive components or materials from dust and contaminants. The SS-MAC series was designed for point-of-use clean air delivery in smaller clean rooms or mini-environments where a full ceiling grid of FFUs is not required. Units like this are still in active use in legacy semiconductor labs, university research environments, and electronics repair facilities where bench-level particulate control is needed without a full cleanroom build-out.

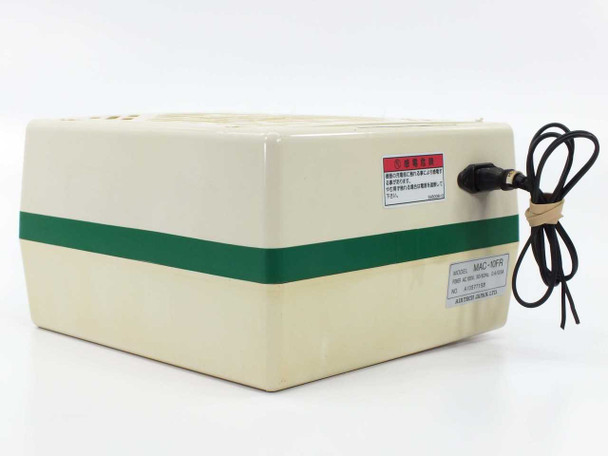

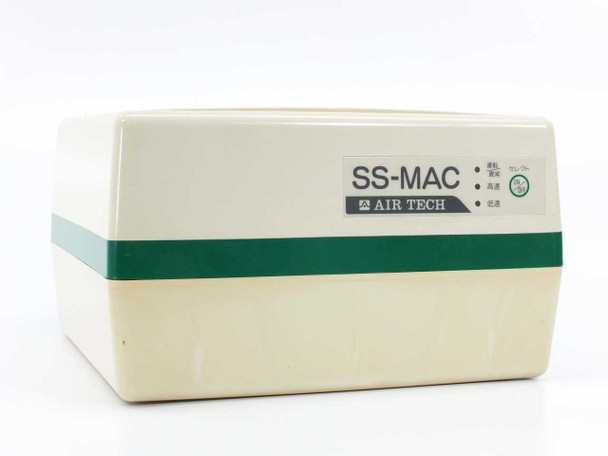

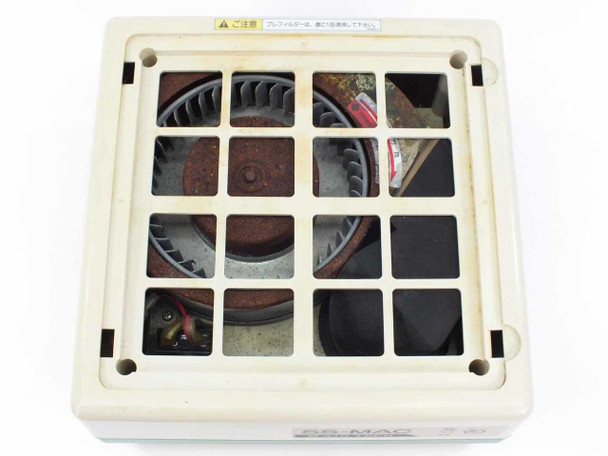

This Airtech SS-MAC MAC-10FR clean room fan filter unit has been inspected and is in good used condition overall. The outer housing is intact with no cracks or major damage, and the green accent stripe is in good shape. The top exhaust grille and HEPA filter are present. The bottom intake side shows the fan and blower wheel assembly, which has noticeable surface rust on the blades and internal housing — visible in our photos. The power cord was originally hard-wired into a machine; the cord ends are bare wire (no wall plug attached), so if standard wall socket power is needed, the cord will need to be terminated with an appropriate connector. The IEC C14 inlet on the unit itself is intact. Please review our photo set carefully and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Airtech Japan |
Model: |
MAC-10FR |
MPN: |
MAC-10FR |
Type: |
Clean Room Fan Filter Unit (FFU) |
SKU: |
47788 |
Seller Notes: |
Unit only; power cord ends are bare wire — rewiring to a wall connector required |
Country/Region of Manufacture: |
Japan |

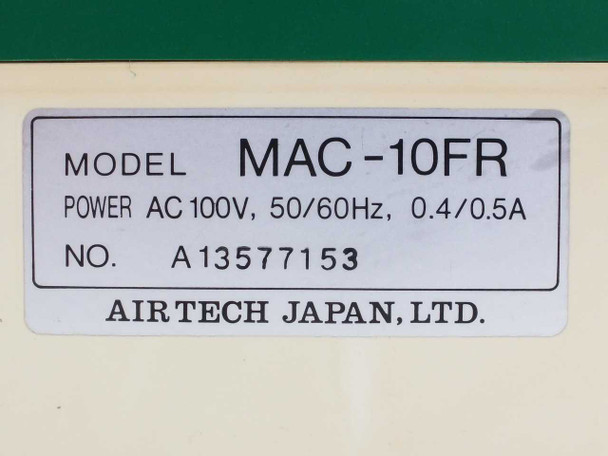

Power Requirements: |
AC 100V, 50/60Hz, 0.4/0.5A, 25W |
Voltage: |
100V AC |
Current Rating: |
0.4A (50Hz) / 0.5A (60Hz) |
Power Rating: |
25 Watts |
Frequency: |
50/60 Hz |
Airflow: |
1 CMM (35.3 CFM) |
Noise Level: |
56 dBA |
Fan Dimensions: |
9.75 x 9.75 x 5.75 in |
Form Factor: |
Freestanding / Tabletop |
Application: |
Clean Room, Semiconductor, Electronics Manufacturing |
Condition: |
Used – Inspected |
Series: |
SS-MAC |
Condition Notes: |
Airtech SS-MAC MAC-10FR fan filter unit, inspected, good used condition. Fan blades show surface rust (see photos). Power cord ends are bare wire — originally hard-wired; rewiring required for wall socket use. IEC C14 inlet intact. |
