Airpax

Airpax PP11-61F 5A 250V Push-Pull Circuit Breaker 50/60Hz Single Pole Panel

(No reviews yet) Write a Review
SKU:
41941
MPN:
PP11-61F
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
  • Airpax PP11-61F 5A 250V push-pull circuit breaker — front-left view showing label with model PP11-61F, 5.00A-OC-V, V 250, HZ 50/60, and push-pull pin actuator
  • Airpax PP11-61F circuit breaker — right-side view showing second label with AC250V, Ue 4.75A, Ith 500A, Icn NETZ markings and UL listing mark
  • Airpax PP11-61F circuit breaker — close-up of front label reading PP11-61F, 5.00A-OC-V, V 250, HZ 50/60, Cambridge Maryland branding
  • Airpax PP11-61F circuit breaker — rear-angle view showing push-pull pin with '5' amp rating printed on black button cap
  • Airpax PP11-61F circuit breaker — bottom-rear view showing blade/tab terminals and side label with AC250V, 500A, NETZ markings
$15.50
Was: $40.00
Current Stock: 1

Sold Out

Description

Airpax PP11-61F 5A 250V Push-Pull Circuit Breaker 50/60Hz Single Pole Panel Mount

Single-pole thermal circuit breaker with push-pull actuator for 250V AC applications. Rated at 5A with overcurrent trip characteristic and 500A short-circuit capacity.

Specifications & What's Included

  • Brand: Airpax | Model: PP11-61F
  • Voltage: 250V AC | Current: 5A (5.00A)
  • Frequency: 50/60 Hz
  • Trip Type: OC-V (Overcurrent)
  • Poles: 1 (Single Pole)
  • Mounting: Panel Mount
  • Short-Circuit Rating: 500A
  • Manufactured: Mexico
  • Unit only—no accessories included

Applications

Push-pull circuit breakers of this type are used in industrial control panels, telecommunications equipment, and general electrical distribution systems requiring manual reset protection. The 5A rating suits branch circuits and equipment protection in industrial and commercial installations. Single-pole configuration handles individual circuit protection in multi-phase systems.

Condition: Used
This used Airpax PP11-61F 5A 250V Push-Pull Circuit Breaker has been inspected and is in good condition. It was pulled from a working environment where it was previously in active use. The unit presents well cosmetically — the housing is intact, the push-pull pin actuator moves freely, and the blade terminals are clean and undamaged. Label markings are fully legible on both faces of the unit. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Airpax
Model:
PP11-61F
MPN:
PP11-61F-5.00A-OC-V
Type:
Push-Pull Thermal Circuit Breaker
SKU:
41941
Voltage Rating:
250V AC
Current Rating:
5A (5.00A)
Frequency:
50/60 Hz
Trip Characteristic:
OC-V (Overcurrent)
Number of Poles:
1 (Single Pole)
Actuator Type:
Push-Pull Pin
Mounting Type:
Panel Mount
Ue (Rated Operational Voltage):
AC 250V
Ith (Conventional Free Air Thermal Current):
4.75A
Icn (Rated Short-Circuit Current):
500A
Country/Region of Manufacture:
Mexico
Seller Notes:
Unit only — no accessories included.
Condition:
Used – Pulled from Working Environment
Condition Notes:
Used Airpax PP11-61F 5A 250V push-pull circuit breaker. Inspected and in good condition. Pulled from a working environment. Housing intact, terminals clean, labels legible. Please contact us with any questions.
View AllClose

Related Products

Related Products

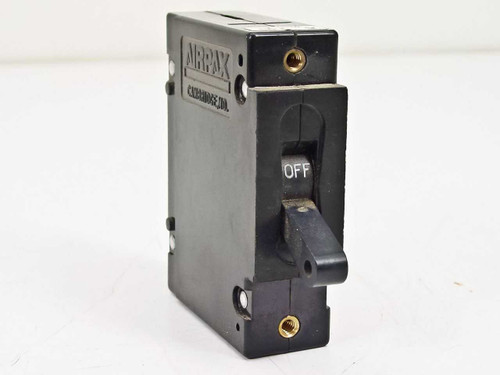

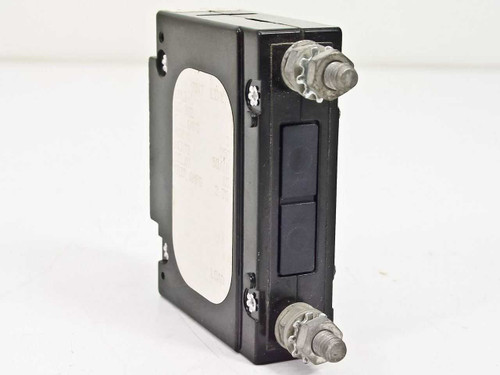

Airpax Single Phase 250V 3A AC Circuit Breaker – front view showing toggle handle in OFF position and panel mount tabs Airpax Single Phase 250V 3A AC Circuit Breaker – rear view showing terminal studs and reset button
Add to Cart
Quick view

Airpax Single Phase AC Circuit Breaker 250V 3A 50/60Hz Panel Mount Magnetic

Airpax

$15.00
Was: $30.00
Airpax Single Phase AC Circuit Breaker 250V 3A 50/60Hz Panel Mount Magnetic Single-pole magnetic circuit breaker rated for 250V AC at 3A. Designed for direct panel mounting and operates at both 50Hz...
41932
SKU:
41932
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Brand:
Airpax
MPN:
CKRB3B05EJ0A
Type:
AC Circuit Breaker
SKU:
41932
Voltage Rating:
250V AC
Current Rating:
3A
Phase:
Single Phase
Frequency:
50/60Hz
Mounting Type:
Panel Mount
Breaker Type:
Magnetic
Number of Poles:
1
Country/Region of Manufacture:
United States
Condition:
Used – Inspected
Seller Notes:
Unit only, no additional accessories included.
Condition Notes:
Airpax Single Phase 250V 3A AC Circuit Breaker. Inspected, good used condition. Toggle handle moves freely; housing shows light surface wear. Terminal studs and mounting tabs intact.

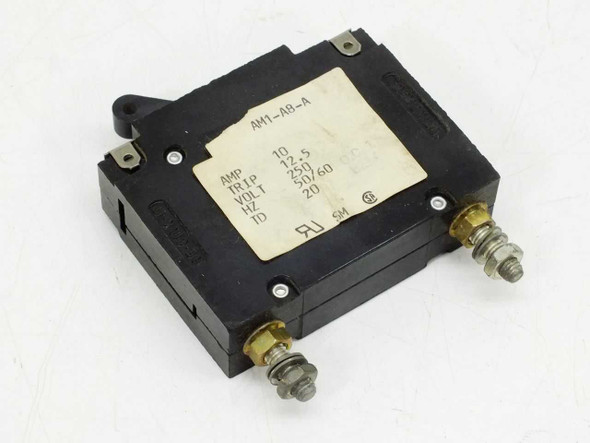

Heinemann AM1-A8-A 10A 250V circuit breaker – top view showing rating label with AMP 10, TRIP 12.5, VOLT 250, HZ 50/60, TD 20 Heinemann AM1-A8-A circuit breaker – bottom/rear view showing terminal studs and UL/CSA markings on label
Add to Cart
Quick view

Heinemann AM1-A8-A Circuit Breaker 10A 250V 50/60Hz 12.5A Trip Single Pole

Heinemann

$11.70
Was: $40.00
Heinemann AM1-A8-A Circuit Breaker 10A 250V 50/60Hz 12.5A Trip Single Pole The Heinemann AM1-A8-A is a single-pole panel-mount circuit breaker rated at 10 amps and 250 volts AC. It uses a...
46189
SKU:
46189
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Brand:
Heinemann Electric
Model:
AM1-A8-A
MPN:
AM1-A8-A
Type:
Circuit Breaker
SKU:
46189
Amperage Rating:
10A
Trip Current:
12.5A
Voltage Rating:
250V
Frequency:
50/60Hz
Number of Poles:
1
Trip Delay (TD):
20
Certifications:
UL, CSA
Mounting Type:
Panel Mount
Condition:
Used – Pulled from Working Environment
Country/Region of Manufacture:
United States
Seller Notes:
Unit only; pulled from working environment, inspected and in good condition.
Condition Notes:
Heinemann AM1-A8-A 10A 250V circuit breaker. Inspected and in good used condition. Pulled from a working environment where it was in active service. Shows normal wear; toggle and terminals intact.

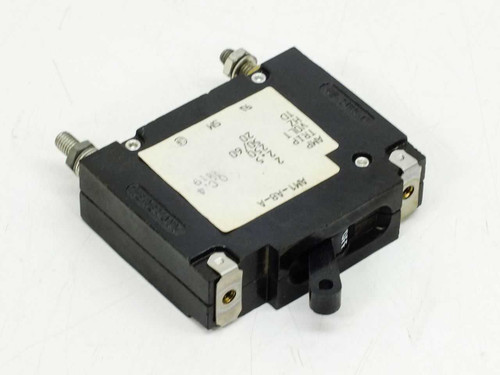

Heinemann AM1-A8-A 2A 250V circuit breaker – top/front angle view showing label with AMP, TRIP, VOLT, HZ, and TD ratings Heinemann AM1-A8-A circuit breaker – side/rear angle view showing screw terminals and toggle actuator in OFF position
