AirLink+ ASW108/A4 8-Port 10/100 Mbps Ethernet Switch Unmanaged w/ Power Supply

AirLink+ ASW108/A4 8-Port 10/100 Mbps Ethernet Switch Unmanaged w/ Power Supply

The AirLink+ ASW108/A4 is a compact, unmanaged 8-port Fast Ethernet switch designed for home and small office network connectivity. It supports both 10BASE-T and 100BASE-TX on all eight RJ-45 ports, allowing mixed-speed devices to share a network segment. With no configuration required, it plugs in and operates automatically — connecting PCs, printers, NAS devices, and other Ethernet equipment. This unit comes with its original LEI Class 2 external power supply.

Specifications & What's Included

• Model: AirLink+ ASW108/A4
• Number of Ports: 8 x RJ-45
• Port Speed: 10/100 Mbps (10BASE-T / 100BASE-TX)
• Management: Unmanaged (plug-and-play, no configuration)
• Form Factor: Desktop
• Power Input: 7.5VDC / 1A via external adapter
• Standards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX)
• Front Panel Indicators: Power LED; Link/ACT LED per port (ports 1–8)
• FCC Compliance: Part 15, for home or office use

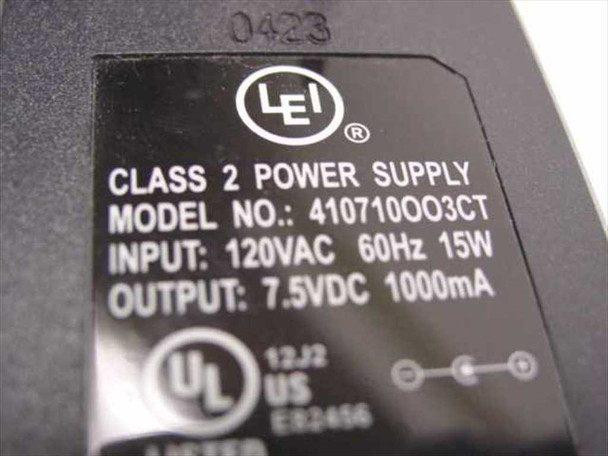

• Included: LEI Class 2 Power Supply, Model 410710OO3CT (Input: 120VAC 60Hz 15W; Output: 7.5VDC 1000mA)

Applications

Unmanaged 10/100 Mbps desktop switches like the ASW108/A4 were widely used in the early-to-mid 2000s for small home and office networks, a period when Fast Ethernet (100BASE-TX) was the mainstream wired standard before Gigabit Ethernet became affordable for the desktop. These switches remain useful today wherever a low-cost wired connection point is needed — connecting legacy computers, IP cameras, printers, or other 10/100-capable devices to a network without requiring any setup. The eight-port form factor makes it practical for small workgroups, home labs, or as an expansion switch off a main router.
