Air Dimensions DIA-VAC 01310TQ Diaphragm Vacuum Pump 115V 1/3 HP 1725 RPM 48Y
The Air Dimensions DIA-VAC 01310TQ is an oil-free diaphragm vacuum pump powered by a GE 1/3 HP single-phase induction motor. Diaphragm-type pumps like the DIA-VAC use a reciprocating flexible diaphragm to move air without oil lubrication, making them well suited for applications that require clean, oil-free vacuum or pressure. This unit is mounted on a flat metal base plate and wired with a standard power cord terminating in a yellow plug.
Specifications & What's Included

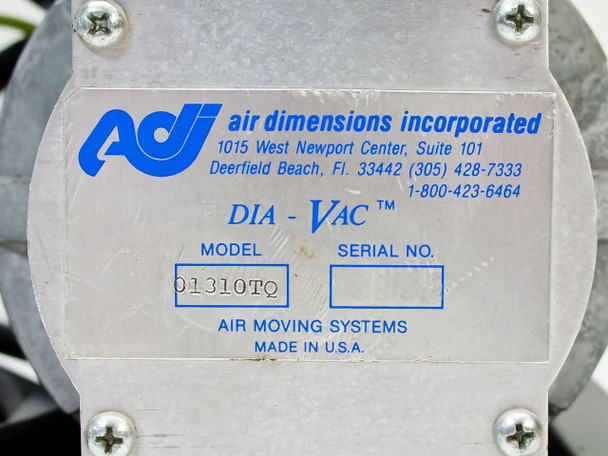

- Manufacturer: Air Dimensions Incorporated (ADI)
- Product line: DIA-VAC™
- Model: 01310TQ
- Pump type: Diaphragm (oil-free)
- Supply voltage: 115V AC, single phase, 60 Hz
- Motor power: 1/3 HP
- Full-load current: 4.50 A
- Motor speed: 1725 RPM

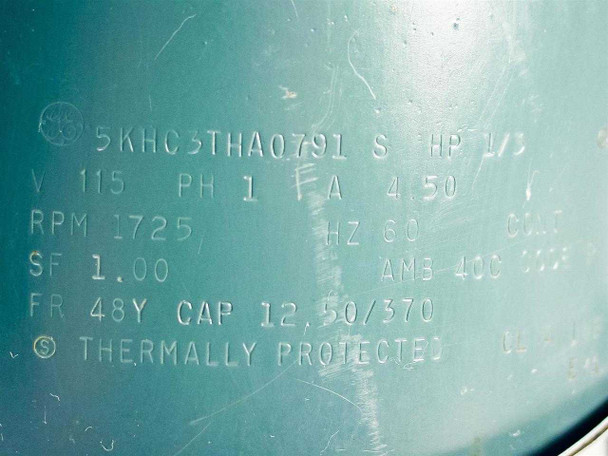

- Motor model: GE 5KHC3THA0791
- Motor frame: NEMA 48Y
- Service factor: 1.00
- Thermal protection: Yes (thermally protected motor)

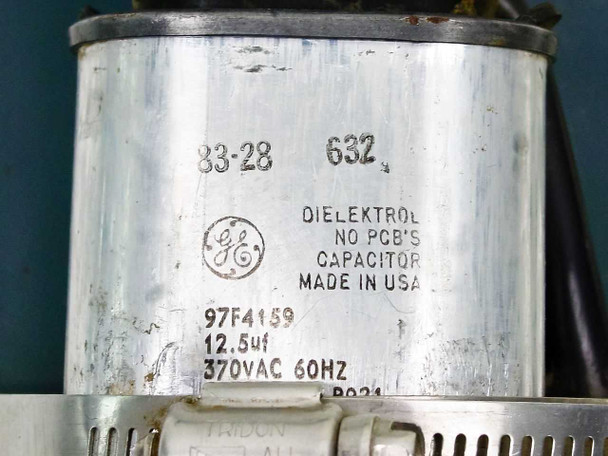

- Run capacitor: GE DIELEKTROL 97F4159, 12.5 µF, 370VAC, 60 Hz, No PCBs
- Pump head: Finned aluminum diaphragm head with two top-mounted port fittings (inlet and outlet, arrow-marked)
- Mounting: Flat metal base plate with bolt-down feet
- Country of manufacture: USA
- Includes: Unit with power cord and yellow plug; no additional accessories
Applications
The ADI DIA-VAC series is a line of compact, oil-free diaphragm vacuum pumps and compressors used across laboratory, scientific, and light industrial settings. Because they require no oil and produce no oil mist or contamination in the pumped gas stream, they are commonly used in gas sampling, chromatography, filtration, aspiration, small-scale degassing, and environmental monitoring equipment. The DIA-VAC line has been a staple in research labs and OEM instrumentation since the 1970s and 1980s — this unit, with its GE frame 48Y motor and 1983-dated run capacitor, dates from that early production era. DIA-VAC pumps are valued for low maintenance requirements and quiet operation relative to piston-type compressors. They are also used in medical instrument panels, printing equipment, and other applications where oil-free air movement is required.
This Air Dimensions DIA-VAC 01310TQ diaphragm vacuum pump has been pulled from a working environment where it was previously in service. The unit has been visually inspected and photographed — what you see is the actual item. The pump head shows corrosion on several mounting screws and some grime on the finned aluminum head surface. The motor body and base plate are in generally sound cosmetic condition with normal wear for used industrial equipment. The power cord and yellow plug are intact. Please review our full photo set carefully and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Air Dimensions Inc. |
Model: |
01310TQ |
MPN: |
01310TQ |
Product Line: |
DIA-VAC |
Type: |
Diaphragm Vacuum Pump |
SKU: |
37116 |
Country/Region of Manufacture: |
United States |
Voltage: |
115V AC |
Power: |
1/3 HP |
Phase: |
Single Phase |
Frequency: |
60 Hz |
Current: |
4.50 A |
Motor Speed: |
1725 RPM |
Motor Frame: |
48Y |
Motor Model: |
GE 5KHC3THA0791 |
Service Factor: |
1.00 |
Thermal Protection: |
Yes |
Capacitor: |
GE 97F4159, 12.5 µF, 370VAC, 60Hz |
Pump Head Type: |
Diaphragm |
Port Fittings: |
Two fittings (inlet and outlet), top-mounted |
Mounting: |
Flat metal base plate |
Seller Notes: |
Includes power cord with yellow plug. No additional accessories. |
Condition Notes: |
This Air Dimensions DIA-VAC 01310TQ vacuum pump was pulled from a working environment. The pump head screws show corrosion and the head has some grime; motor and base plate show normal used wear. Power cord and plug are intact. |
