Description
Agilent ESA E4401-90237 Spectrum Analyzer Reference Guide Fw A.07 Apr 2001

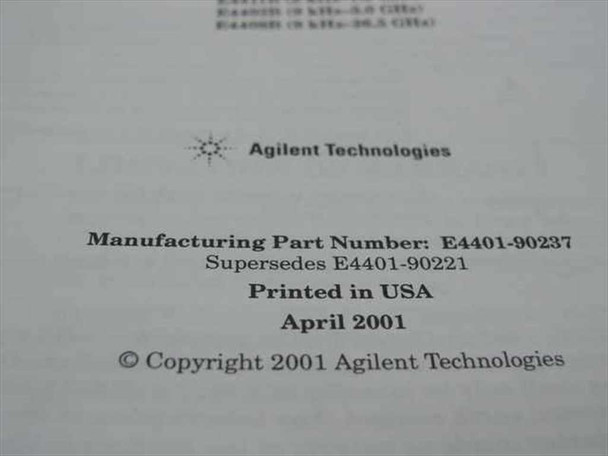

This is a printed spiral-bound reference guide published by Agilent Technologies for the ESA series of spectrum analyzers. It documents firmware revision A.07.xx and covers operation, specifications, and technical reference information for RF and microwave measurements across the ESA-E and ESA-L product families. The publication number is E4401-90237, dated April 2001, and it supersedes the earlier edition E4401-90221.
Specifications & What's Included
- Publication Number: E4401-90237
- Supersedes: E4401-90221
- Publication Date: April 2001

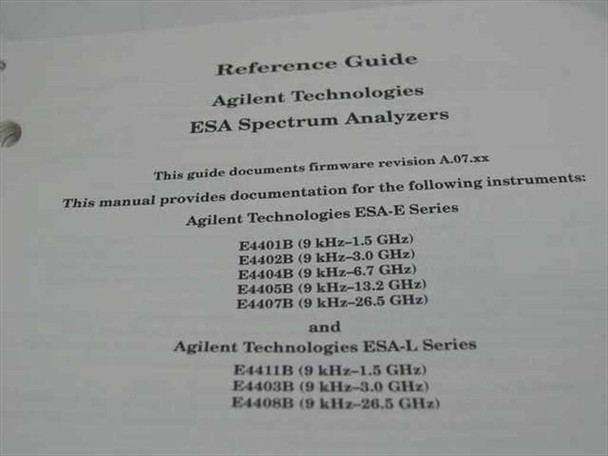

- Firmware Revision Documented: A.07.xx
- Format: Spiral-bound printed manual
- Language: English
- Printed in USA
- Compatible with ESA-E Series: E4401B (9 kHz–1.5 GHz), E4402B (9 kHz–3.0 GHz), E4404B (9 kHz–6.7 GHz), E4405B (9 kHz–13.2 GHz), E4407B (9 kHz–26.5 GHz)
- Compatible with ESA-L Series: E4411B (9 kHz–1.5 GHz), E4403B (9 kHz–3.0 GHz), E4408B (9 kHz–26.5 GHz)
- Frequency Range Covered: 9 kHz to 26.5 GHz
- All pages present and legible
- Spiral binding intact
Applications
The Agilent ESA series is a line of portable and benchtop spectrum analyzers introduced in the late 1990s and early 2000s, widely used for RF and microwave signal analysis in telecommunications, aerospace and defense, and laboratory environments. The ESA-E series covers a broad frequency range up to 26.5 GHz, while the ESA-L series offers a more cost-effective option for lower-frequency work. This reference guide is the primary technical document for engineers and technicians performing signal measurements, troubleshooting, calibration, and equipment integration with these analyzers. It documents the A.07.xx firmware generation, which is a key compatibility detail when matching documentation to a specific unit — the firmware version determines which guide applies. Engineers maintaining older ESA units in service or setting up benches with second-hand analyzers rely on this type of reference guide for front-panel operation, menu navigation, specifications, and measurement procedures. The guide remains relevant wherever ESA-series analyzers are still in use.
This Agilent ESA E4401-90237 Spectrum Analyzer Reference Guide is in good used condition. The cover shows normal shelf wear consistent with prior use, and the spiral binding is fully intact. All pages are present and legible throughout. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Agilent Technologies |
Model: |
ESA Spectrum Analyzer |
MPN: |
E4401-90237 |
SKU: |
28036 |
Document Type: |
Reference Guide |
Publication Number: |
E4401-90237 |
Supersedes: |
E4401-90221 |
Firmware Revision Covered: |
A.07.xx |
Print Date: |
April 2001 |
Compatible With 1: |
E4401B, E4402B, E4404B, E4405B, E4407B |
Compatible With 2: |
E4411B, E4403B, E4408B |
Frequency Range: |
9 kHz to 26.5 GHz |
Series: |
ESA-E Series, ESA-L Series |
Country of Manufacture: |
USA |
Form Factor: |
Printed Spiral-Bound Manual |
Seller Notes: |
All pages present and legible, spiral binding intact, normal shelf wear |
Condition Notes: |
This Agilent ESA E4401-90237 Spectrum Analyzer Reference Guide is in good used condition with normal shelf wear on the cover. All pages are present and legible. Spiral binding is intact. |
Publication Date: |
April 2001 |
Firmware Version: |
A.07 |
Format: |
Spiral-Bound Printed Manual |
Type: |
Reference Guide |
Language: |
English |
Country/Region of Manufacture: |
USA |
