Automation Gages AG Linear Positioning Slide 102mm Travel 264mm Precision Stage
This is a manual linear positioning slide made by Automation Gages Inc. of Rochester, New York — a manufacturer known for precision motion control and gauging components for industrial and laboratory use. The slide provides smooth, bidirectional linear travel of 102mm total (±51mm from center), carried on a flat metal carriage plate riding a rail bearing assembly integrated into the anodized aluminum base body. The overall body length is 264mm. The top carriage surface features tapped mounting holes for fixture or workpiece attachment.
Specifications & What's Included
- Manufacturer: Automation Gages Inc., Rochester, New York 14621
- Type: Linear Positioning Slide (manual)
- Total travel range: 102mm (±51mm from center, bidirectional)
- Overall body length: 264mm
- Base construction: anodized aluminum
- Carriage: flat steel carriage plate with tapped mounting holes
- Bearing rail assembly visible on side of body
- Slide only — no actuator, drive screw, or mounting hardware included
Applications
Linear positioning slides like this Automation Gages unit are used wherever precise, repeatable one-axis linear motion is needed in a controlled setting. Common applications include optical bench setups, metrology and inspection fixtures, semiconductor and PCB assembly tooling, laser alignment stages, and general industrial automation where a carriage must be positioned along a fixed axis. Automation Gages Inc. built slides and gauging components primarily for precision manufacturing and quality control environments, and this style of manual slide is still actively used in toolrooms, machine shops, and laboratory workstations. It can serve as a standalone manual positioning stage or as a base component in a multi-axis XY or XYZ stage assembly when combined with additional slides. The tapped carriage plate makes it straightforward to attach fixtures, sensors, optics mounts, or other tooling.

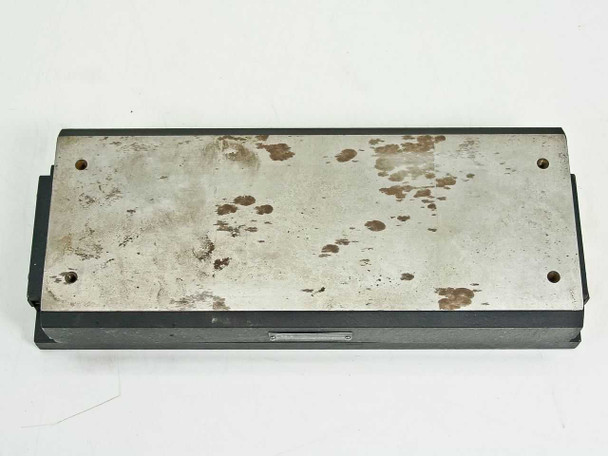

This Automation Gages AG Linear Positioning Slide has been inspected and pulled from a working environment where it was previously in use. The carriage top plate shows notable surface rust and oxidation spotting across much of its face — clearly visible in the photos. The anodized aluminum base body is intact with no cracks or structural damage. It has not been powered up or bench-tested at our facility (this is a manual mechanical slide). Please review our full photo set closely — particularly the carriage surface condition — and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Automation Gages Inc. |
Model: |
Linear Positioning Slide |
MPN: |
Linear Positioning Slide |
Type: |
Linear Positioning Slide |
SKU: |
42549 |
Country/Region of Manufacture: |
United States |
Travel Range: |
102mm total (±51mm from center) |
Overall Length: |
264mm |
Travel Direction: |
Bidirectional (both ways from center) |
Form Factor: |
Benchtop / Machine-Mount Stage |
Mounting: |
Flat base with threaded mounting holes |
Carriage Surface: |
Flat metal carriage plate with tapped holes |
Body Material: |
Anodized aluminum base, steel carriage plate |
Manufacturer Location: |
Rochester, New York 14621 |
Seller Notes: |
Slide only — no actuator, drive screw, or mounting hardware included. |
Condition Notes: |
This Automation Gages AG Linear Positioning Slide was pulled from a working environment. The carriage top shows significant surface rust/oxidation spotting (see photos). The aluminum base body is structurally intact. Not powered; sold as-inspected. |
