Description
Affinity FWE-005C-CD38CA Water Cooled Chiller 208-230V 1Ph R-22 17674

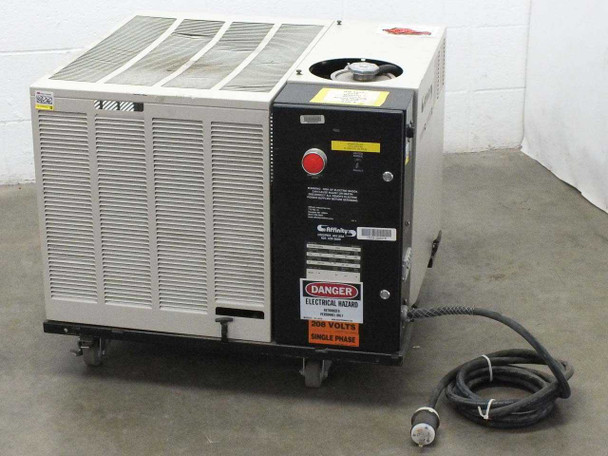

The Affinity FWE-005C-CD38CA is a water cooled recirculating chiller designed for industrial and laboratory process cooling applications. It uses R-22 refrigerant and runs on single-phase 208-230V AC power, making it suitable for facilities where three-phase power is not available. The unit is mounted on casters for repositioning within a facility.
Specifications & What's Included
- Manufacturer: Affinity (Ossipee, NH USA)
- Model: FWE-005C-CD38CA
- Part Number: 17674
- Cooling Type: Water Cooled Recirculating
- Voltage: 208-230V AC
- Phase: Single Phase (1Ph)
- Frequency: 60 Hz
- Total Amps: 18.2 A
- Min Circuit Ampacity: 21.3 A
- Max Fuse: 30 A
- Refrigerant Type: R-22
- Refrigerant Charge: 3.0 lbs
- Design Pressure – High Side: 440 psig
- Design Pressure – Low Side: 162 psig
- Compressor RLA: 4.0 A; LRA: 23.8 A
- Pump FLA: 5.6 A
- Heater Amps: 8.6 A
- Dimensions: 26Condition: Used

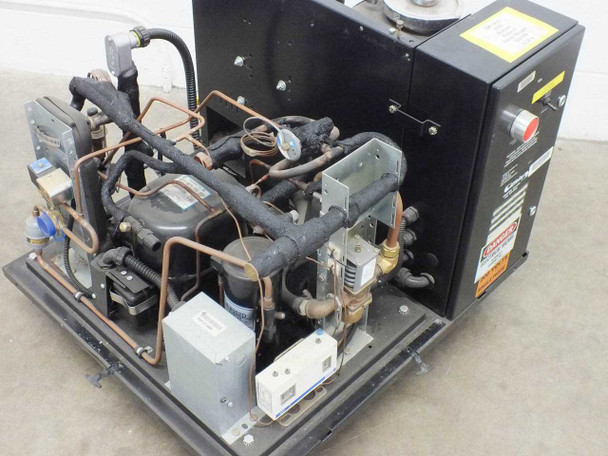

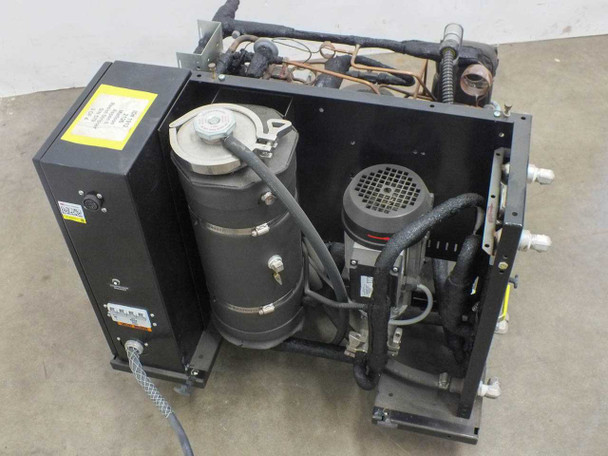

This Affinity FWE-005C-CD38CA Water Cooled Industrial Chiller has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in use. The exterior shows normal wear consistent with industrial service, and the internal refrigeration components, copper plumbing, compressor, and pump are all present and intact as shown in the photos. This unit requires freight shipping — please contact us for a shipping quote or to arrange local pickup or a facility viewing. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Affinity |
Model: |
FWE-005C-CD38CA |
MPN: |
17674 |
Secondary Model: |
FWE-005C-CD38CB |
SKU: |
52208 |
Type: |
Water Cooled Recirculating Chiller |
Voltage: |
208-230V AC |
Phase: |
Single Phase (1Ph) |
Frequency: |
60 Hz |
Total Amps: |
18.2 A |
Min Circuit Ampacity: |
21.3 A |
Max Fuse: |
30 A |
Refrigerant Type: |
R-22 |
Refrigerant Charge: |
3.0 lbs |
Compressor RLA: |
4.0 A |
Compressor LRA: |
23.8 A |
Pump FLA: |
5.6 A |
Pump HP: |
750 (listed on nameplate) |
Heater Amps: |
8.6 A |
Design Pressure High Side: |
440 psig |
Design Pressure Low Side: |
162 psig |
Manufacture Date: |
September 1999 (date code 9909) |
Dimensions: |
26" W x 30" D x 30" H |
Cooling Type: |
Water Cooled |
Application: |
Industrial / Laboratory Process Cooling |
Seller Notes: |
Unit only — freight shipping required; contact us for a quote or local pickup. |
Country/Region of Manufacture: |
United States |
Form Factor: |
Floor-Standing, Caster-Mounted |
Condition Notes: |
This Affinity FWE-005C-CD38CA Water Cooled Chiller has been inspected and appears to be in good used condition. Pulled from a working environment where it was previously in use. Freight shipping required. |
