AEC Application Engineering TDWF7M09S4 True Temp 9kW Water TCU 460V 3-Phase

(No reviews yet) Write a Review
SKU:
50485
MPN:
TDWF7M09S4
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
159.00 LBS
Shipping:
Calculated at Checkout

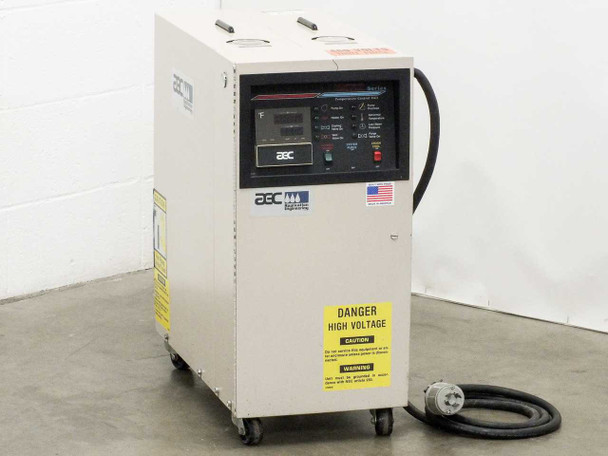

  • AEC Application Engineering TDWF7M09S4 True Temp temperature control unit – front three-quarter view showing control panel and high voltage warning label

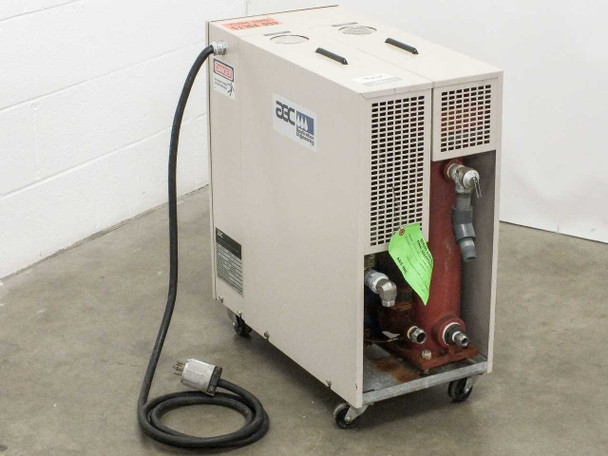

  • AEC TDWF7M09S4 True Temp TCU – right side view showing fluid connections, piping manifold, and power cord with twist-lock plug

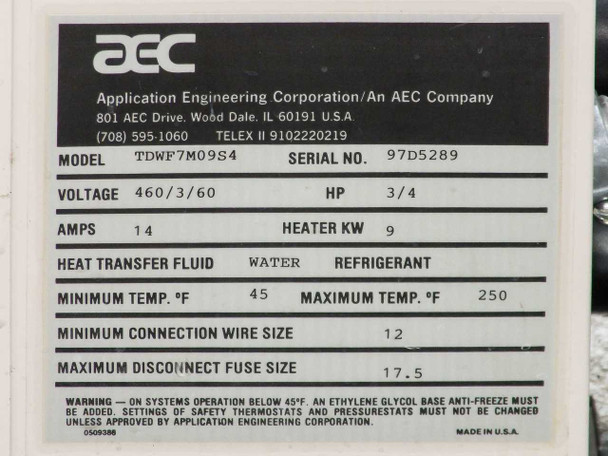

  • AEC TDWF7M09S4 nameplate label showing model number, serial number, voltage 460/3/60, 14 amps, 3/4 HP, 9 kW heater, water heat transfer fluid, 45–250°F range
  • AEC True Temp Series front control panel showing digital temperature display, indicator lights for pump, heater, cooling valve, vent valve, and crash cool button

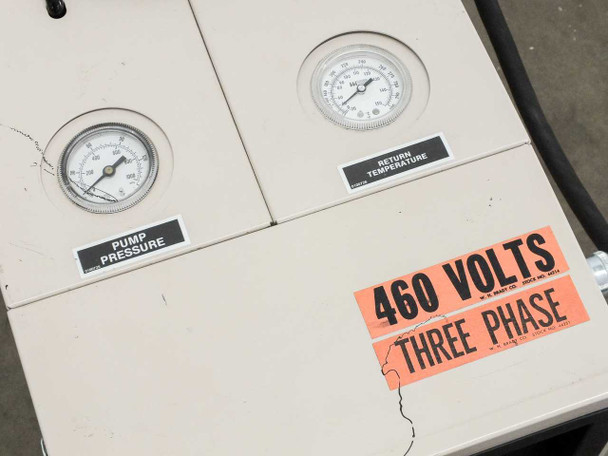

  • Top of AEC TDWF7M09S4 showing pump pressure gauge, return temperature gauge, and 460 Volts Three Phase warning label

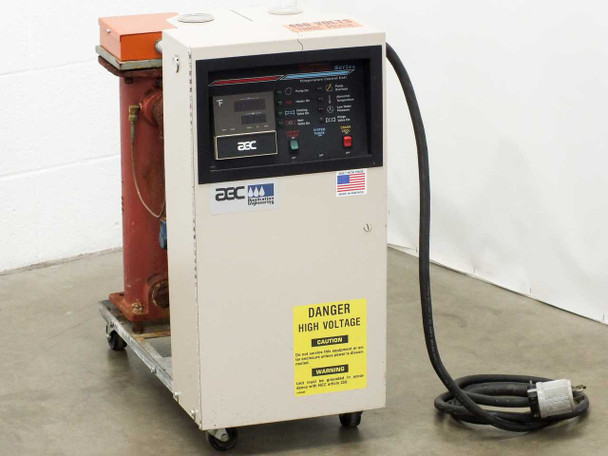

  • AEC TDWF7M09S4 True Temp TCU – front view with fluid distribution column attached to left side showing full unit configuration

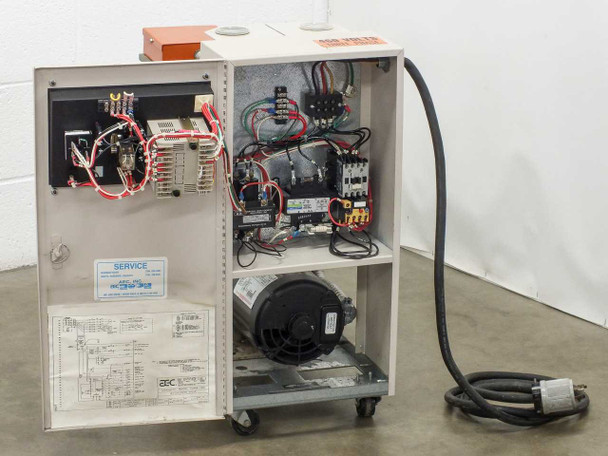

  • Interior cabinet view of AEC TDWF7M09S4 showing control board, contactors, relay components, pump motor, and wiring schematic mounted to door
  • Interior close-up of AEC TDWF7M09S4 control cabinet showing terminal block, relay board, control transformer, and wiring harness

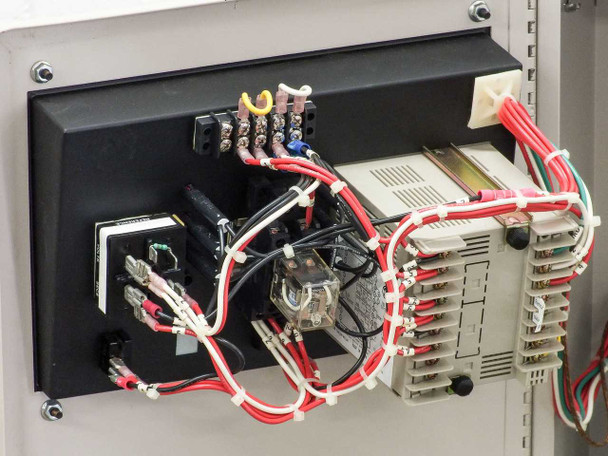

  • Interior close-up of AEC TDWF7M09S4 showing relay module assembly, control wiring, and DIN-rail mounted components on left cabinet panel

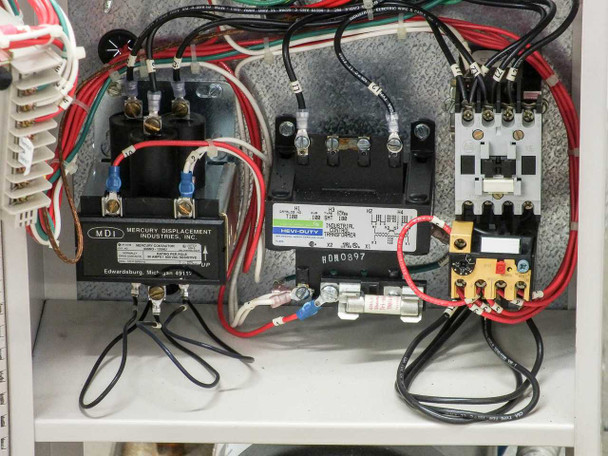

  • Interior of AEC TDWF7M09S4 showing MDI Mercury Displacement Industries contactor, Hevi-Duty three-phase transformer, and main power contactor

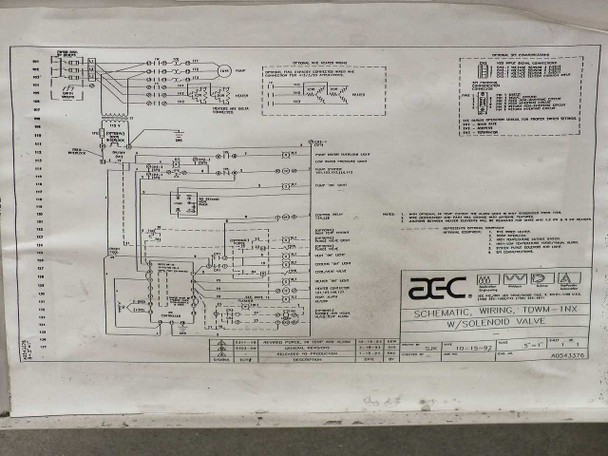

  • AEC wiring schematic diagram for TDWF7M09S4 (TOWM-TNX with solenoid valve), mounted inside cabinet door, dated 10-15-92
  • Rear-left view of AEC TDWF7M09S4 showing pump motor, fluid column, and open cabinet back panel on wheeled platform

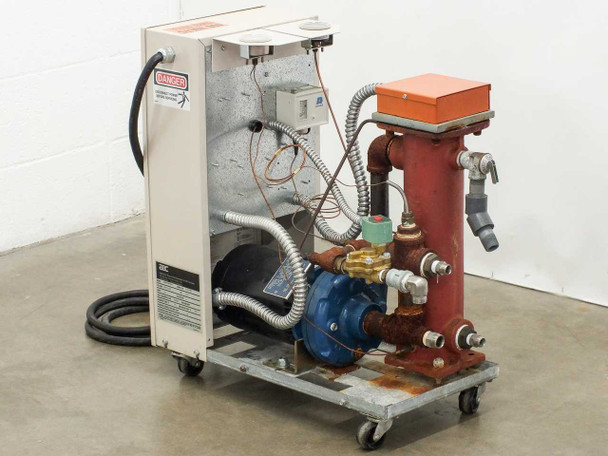

  • Rear view of AEC TDWF7M09S4 showing power cord, piping column with blue centrifugal pump, manifold assembly, and wheeled base frame

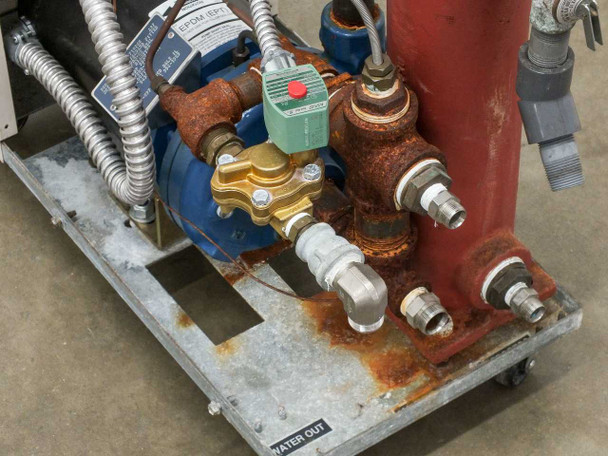

  • Close-up of fluid manifold on AEC TDWF7M09S4 showing blue centrifugal pump, solenoid valve, brass fittings, water outlet port, and surface rust on piping

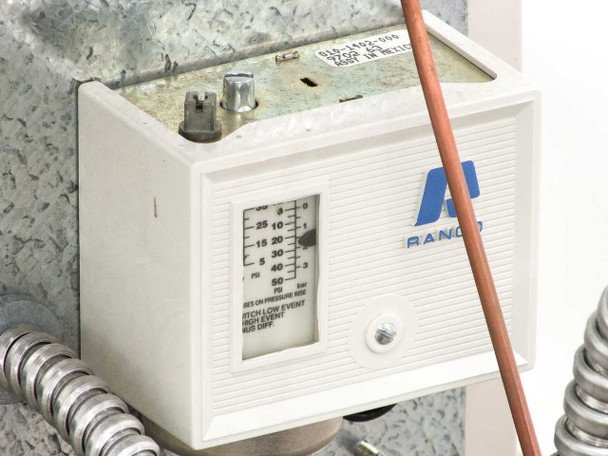

  • Ranco pressure/temperature controller mounted on AEC TDWF7M09S4 showing scale 0–30 PSI range and capillary tube connection

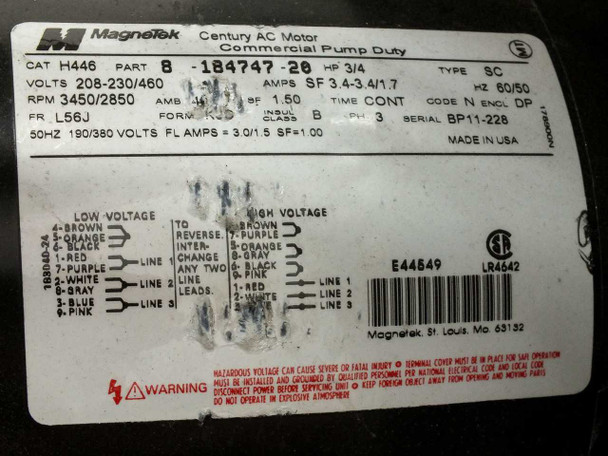

  • MagneTek Century AC motor nameplate on AEC TDWF7M09S4 pump: Cat H446, Part B-184747-20, 3/4 HP, 208-230/460V, 3450/2850 RPM, Frame L56J

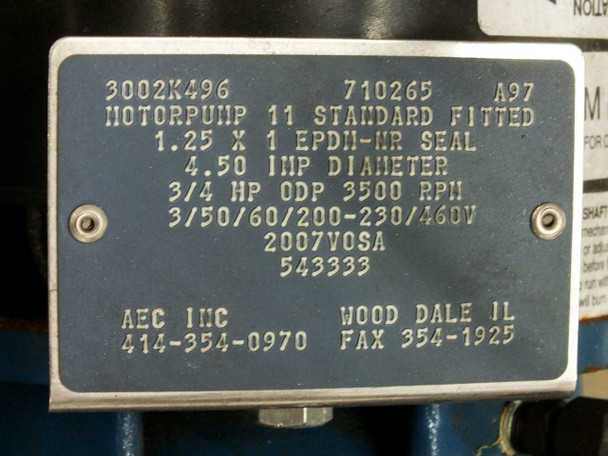

  • AEC pump nameplate showing Motorpump 11 Standard, 1.25x1 EPDM-HR seal, 4.50 IMP diameter, 3/4 HP ODP 3500 RPM, 3/50/60/200-230/460V
  • AEC Inc Quality Control Final Acceptance tag showing Order No. 216938, Model TDWF7M09S4, Serial No. 97D5289
$950.00
Was: $1,900.00
Current Stock: 1

Sold Out

Description

AEC Application Engineering TDWF7M09S4 True Temp 9kW Water TCU 460V 3-Phase

Water-based temperature control unit for industrial heating and cooling applications. 9kW heater, 3/4 HP pump motor, operates 45°F to 250°F with 460V three-phase 60 Hz power.

Specifications & What's Included

  • Model: TDWF7M09S4 | 9 kW heating capacity
  • 460V AC, 3-phase, 60 Hz, 14 Amps
  • Temperature range: 45°F to 250°F
  • Pump motor: MagneTek Century H446, 3/4 HP, 3450/2850 RPM
  • Pump specification: Motorpump 11 Standard, 1.25x1 EPDM-HR seal
  • Floor-standing wheeled cabinet: 27" W x 15" D x 27" H
  • Pressure and temperature gauges, digital display, multiple controls
  • Wiring schematic included inside cabinet door

Applications

Used in plastics processing for mold temperature control and injection molding operations. Water TCUs circulate temperature-controlled fluid through molds and dies to maintain consistent processing conditions. Typical industrial installation in manufacturing facilities requiring precise thermal management during production cycles.

Condition: Used
This AEC Application Engineering TDWF7M09S4 True Temp water temperature control unit has been inspected and is in good used condition. It was pulled from a working environment where it was actively in use. The cabinet exterior shows normal wear for its age, with some surface rust and oxidation visible on the external piping, manifold fittings, and wheeled base frame — consistent with water contact in industrial service. The control panel face, digital display, and indicator section appear intact and in good shape. The interior wiring and components appear complete and undisturbed, with the original AEC wiring schematic still mounted to the inside of the cabinet door. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
AEC / Application Engineering Corporation
Model:
TDWF7M09S4
MPN:
TDWF7M09S4
SKU:
50485
Type:
Water Temperature Control Unit (TCU)
Series:
True Temp
Condition:
Used – Pulled from Working Environment
Voltage Rating:
460V AC
Phase:
Three Phase
Frequency:
60 Hz
Current Rating (Amps):
14 Amps
Heater Power:
9 kW
Pump Motor HP:
3/4 HP
Heat Transfer Fluid:
Water
Minimum Temperature:
45°F
Maximum Temperature:
250°F
Temperature Range:
45°F to 250°F
Pump Motor Model:
MagneTek Century H446, Cat B-184747-20
Pump Motor Voltage:
208-230/460V
Pump Motor RPM:
3450/2850 RPM
Pump Motor Frame:
L56J
Pump Specification:
Motorpump 11 Standard, 1.25x1 EPDM-HR Seal
Pump Impeller Diameter:
4.50 IMP
Minimum Connection Wire Size:
12 AWG
Maximum Disconnect Fuse Size:
17.5A
Form Factor:
Floor-Standing, Wheeled Cabinet
Dimensions:
27" W x 15" D x 27" H
Country/Region of Manufacture:
United States
Application / Use Case:
Plastics processing, injection molding, mold temperature control
Pressure Gauges:
Pump Pressure and Return Temperature gauges on top panel
Controls:
Digital °F display, Pump On/Off, Heater On/Off, Cooling Valve, Vent Valve, Control Power, System Purge, Crash Cool
Safety Features:
Pump Overload, Abnormal Temp, Low Water Pressure, Purge Valve indicators
Seller Notes:
Includes wiring schematic affixed inside cabinet door. Unit only — no additional accessories.
Condition Notes:
AEC TDWF7M09S4 True Temp 9kW water TCU. Inspected, good used condition. Pulled from working environment. Surface rust on external piping and base frame; cabinet and controls in good shape. Wiring schematic included inside door.
