Advantech ADAM-4011 Data Acquisition Module Enclosure B&B 4WSD9OTB RS-485

(No reviews yet) Write a Review
SKU:
45527
MPN:
4011
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
16.00 LBS
Shipping:
Calculated at Checkout

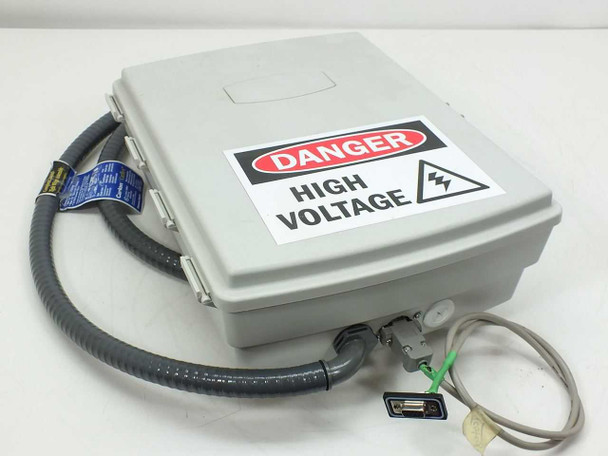

  • Advantech ADAM-4011 data acquisition module electrical enclosure exterior with DANGER HIGH VOLTAGE label and liquid-tight conduit fitting
  • Bottom view of ADAM-4011 electrical enclosure showing four mounting feet, wiring conduit loop, and external cable with DB-9 connector
  • Label on enclosure showing Model 9099 and serial number

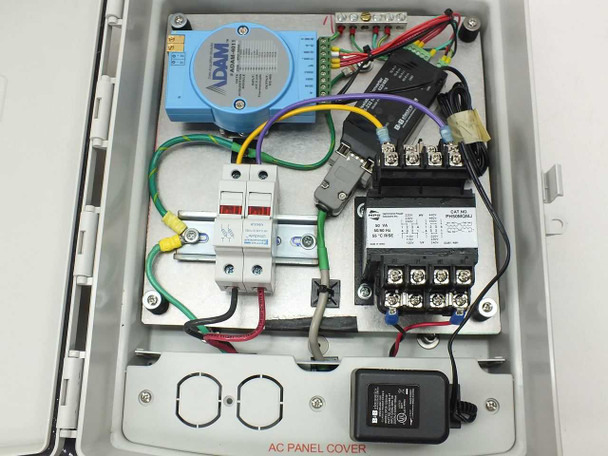

  • Interior of ADAM-4011 enclosure showing ADAM-4011 module, B&B 4WSD9OTB converter, Hammond transformer, Ferraz fuse block, terminal strips, and wiring

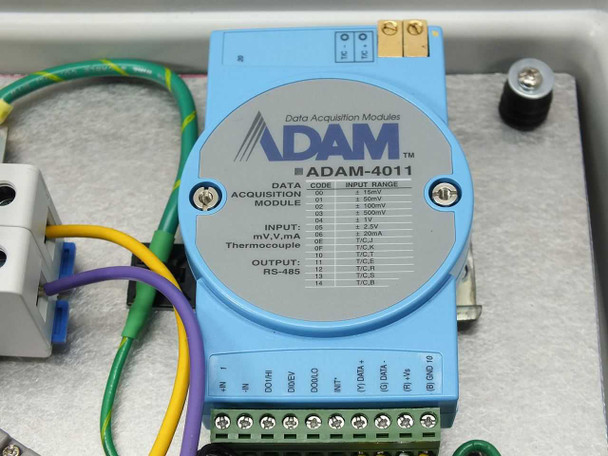

  • Close-up of Advantech ADAM-4011 Data Acquisition Module label showing input codes for thermocouple, mV, V, mA, and RS-485 output
  • Close-up of B&B Electronics 4WSD9OTB Isolated Converter RS-232 to RS-422/485 with terminal block connections

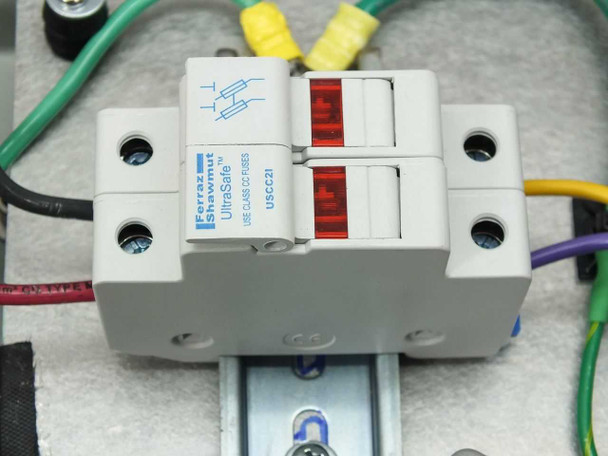

  • Close-up of Ferraz Shawmut UltraSafe USCC21 Class CC fuse holder on DIN rail inside enclosure

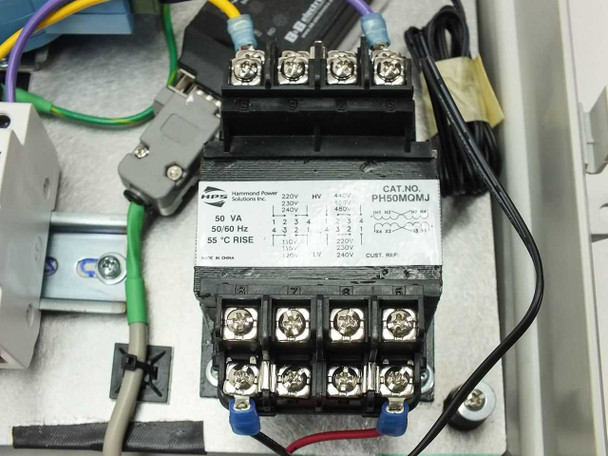

  • Close-up of Hammond Power Solutions PH50MQMJ 50 VA 50/60 Hz transformer with wiring terminals inside enclosure
  • AC panel cover of enclosure showing two standard AC outlets and knockout holes

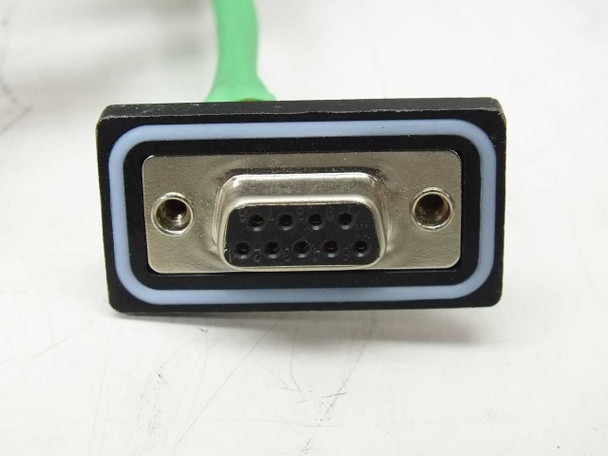

  • Close-up of DB-9 female connector on external green cable exiting the enclosure
  • Adam 4011 Data Acquisition Module in Electrical Enclosure with B&B 4WSD9OTB
  • Adam 4011 Data Acquisition Module in Electrical Enclosure with B&B 4WSD9OTB
$135.00
Was: $275.00
Current Stock: 1

Sold Out

Description

Advantech ADAM-4011 Data Acquisition Module Enclosure B&B 4WSD9OTB RS-485

Wall-mounted data acquisition enclosure combining an Advantech ADAM-4011 module with a B&B Electronics RS-232 to RS-422/485 isolated converter. Accepts thermocouple and analog inputs (mV, V, mA) and outputs data via RS-485 interface.

Specifications & What's Included

  • Advantech ADAM-4011 module with thermocouple (J, K, T, E, R, S, B) and analog input support
  • B&B Electronics 4WSD9OTB RS-232/422/485 isolated converter
  • Hammond Power Solutions 50 VA transformer (50/60 Hz)
  • Ferraz Shawmut UltraSafe fuse block with Class CC fuses
  • Enclosure: 16 x 12 x 5 inches, includes 2x AC outlets and DB-9 female connector

Applications

Designed for industrial automation and process monitoring requiring multi-point temperature or analog signal acquisition. Commonly used in manufacturing, HVAC systems, and remote monitoring applications where data must be transmitted over longer distances via RS-485 networks. Compatible with legacy industrial control systems and modern SCADA platforms supporting standard Modbus or serial protocols.

Condition: Used
This Advantech ADAM-4011 Data Acquisition Module in its electrical enclosure has been inspected and appears to be in good condition. The enclosure exterior shows light wear consistent with prior use but is structurally intact with latches and conduit fittings in place. The interior wiring, ADAM-4011 module, B&B Electronics 4WSD9OTB RS-232 to RS-422/485 isolated converter, Hammond transformer, and Ferraz Shawmut fuse block all appear complete and undamaged as shown in our photos. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Advantech
Model:
ADAM-4011
MPN:
ADAM-4011
Secondary Model:
4WSD9OTB
SKU:
45527
Type:
Data Acquisition Module in Electrical Enclosure
Interface Type:
RS-485 / RS-422 / RS-232
Input Type:
Thermocouple (T/C J, K, T, E, R, S, B), mV, V, mA
Output Interface:
RS-485
Converter:
B&B Electronics 4WSD9OTB RS-232 to RS-422/485 Isolated
Converter Brand:
B&B Electronics
Enclosure Model:
9099
Enclosure Dimensions:
16 x 12 x 5 inches
Transformer:
Hammond Power Solutions PH50MQMJ, 50 VA, 50/60 Hz
Transformer Rating:
50 VA, 50/60 Hz, 55°C Rise
Fuse Holder:
Ferraz Shawmut UltraSafe USCC21, Class CC fuses
AC Outlets:
2x standard AC outlets on AC panel cover
External Connector:
DB-9 female (RS-232), liquid-tight conduit fitting
Form Factor:
Wall-mount / Field-mount Electrical Enclosure
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Includes ADAM-4011 module, B&B 4WSD9OTB converter, Hammond transformer, Ferraz fuse block, wiring, and AC outlets — complete as shown
Country/Region of Manufacture:
Taiwan
Condition Notes:
Advantech ADAM-4011 Data Acquisition Module enclosure inspected and in good condition. Interior components — ADAM-4011 module, B&B 4WSD9OTB converter, Hammond transformer, and fuse block — appear complete and undamaged.
View AllClose

Related Products

Related Products

B&B Electronics FOSTCDR fiber optic converter front panel showing terminal block labels and DIP switch settings chart B&B Electronics FOSTCDR bottom view showing FCC/CE compliance label, UL mark E222870, and barcode label
Add to Cart
Quick view

B&B Electronics FOSTCDR RS-232/RS-485 to Multimode Fiber Optic Converter 4km

B&B Electronics

$95.00
Was: $200.00
B&B Electronics FOSTCDR RS-232/RS-485 to Multimode Fiber Optic Converter 4kmThe B&B Electronics FOSTCDR is an industrial-grade serial to multimode fiber optic converter that bridges RS-232...
52542
SKU:
52542
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Brand:
B&B Electronics
Model:
FOSTCDR
MPN:
FOSTCDR
Type:
Industrial Serial to Multimode Fiber Optic Converter
SKU:
52542
Condition:
Used – Pulled from Working Environment
Interface Type:
RS-232, RS-485, RS-422
Fiber Type:
Multimode
Fiber Connectors:
ST (RX and TX)
Data Rate:
Up to 115.2 kbps
Range:
2.5 miles (4 km)
Input Voltage:
10–30 VDC
Isolation:
2000V
Protocol Compatibility:
MODBUS ASCII/RTU
EMI/RFI Protection:
Yes
Baud Rate Settings:
>57.6k, 38.4k, 19.2k, 9600, 4800 baud (DIP switch)
Multi-Drop Support:
Up to 31 devices on fiber optic ring
Configuration:
8-position DIP switch; terminal block wiring
Mounting:
DIN Rail
LED Indicators:
RD, TD, Power
Certifications:
UL, CE, FCC Part 15
Seller Notes:
Unit only; no accessories included.
Country/Region of Manufacture:
United States
Condition Notes:
B&B Electronics FOSTCDR fiber optic converter, used. Inspected and in good condition; pulled from a working environment. Enclosure shows light surface wear. Terminal blocks, ST fiber ports, and DIP switch intact.

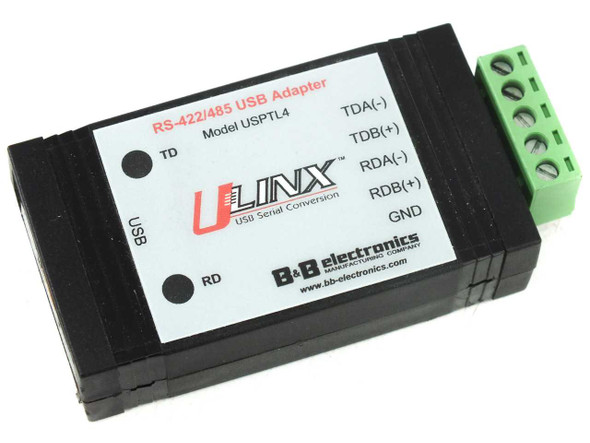

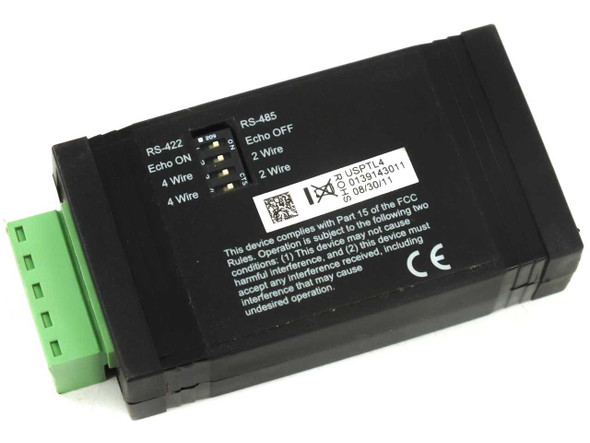

B&B Electronics USPTL4 U-LINX RS-422/485 USB adapter — front panel view showing TD/RD indicators and terminal block B&B Electronics USPTL4 — bottom label showing RS-422/RS-485 jumper settings, FCC compliance, and serial number
