Advanced Microtechnology

Advanced Microtechnology Rack Mount Burn-In System w/ Sorensen DCS8-125E PSU

(No reviews yet) Write a Review
SKU:
48249
MPN:
Custom
Condition:
Used
Availability:
This item requires freight shipping. Please contact us for a shipping quote or to arrange local pickup.
Weight:
273.00 LBS
Shipping:
Calculated at Checkout

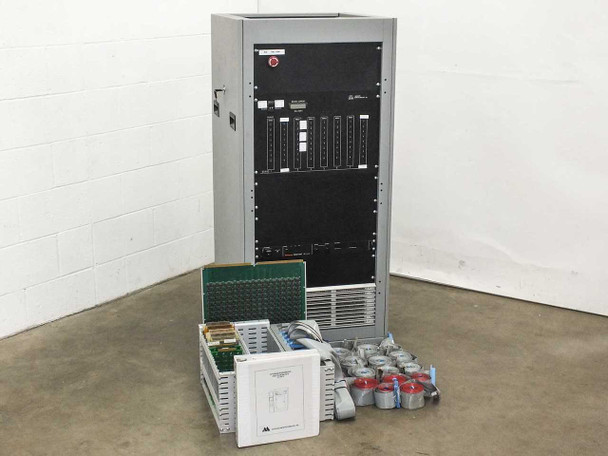

  • Advanced Microtechnology rack mount burn-in system full front view with floor cabinet and loose PCBs and accessories laid out in front

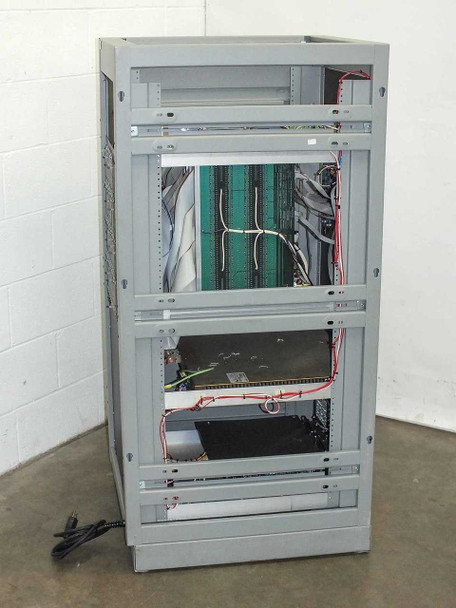

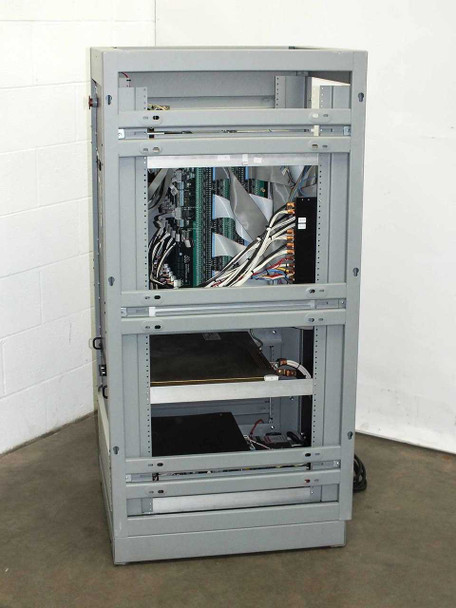

  • Advanced Microtechnology burn-in system rear view showing open rack chassis with wiring harness, green backplane, and power cabling

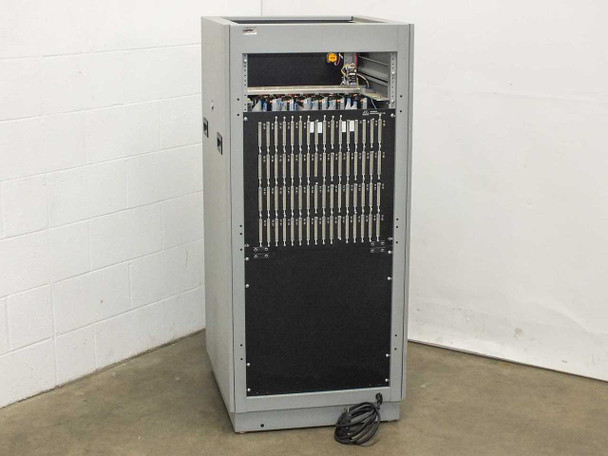

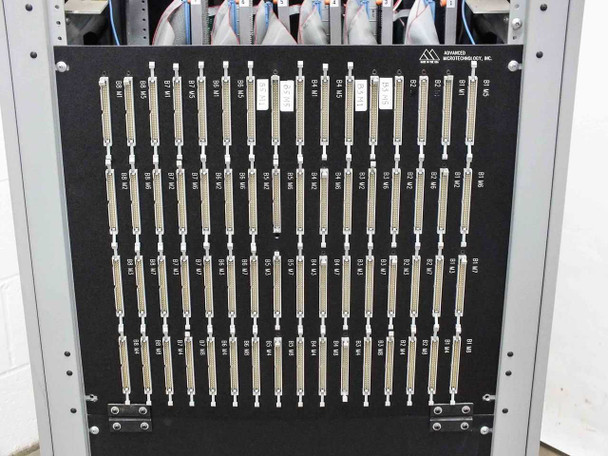

  • Advanced Microtechnology burn-in rack side view showing card cage slots, multiple plug-in card ejector handles, and power cable
  • Close-up of Advanced Microtechnology Inc. embossed logo plate on burn-in system cabinet — Made in the USA

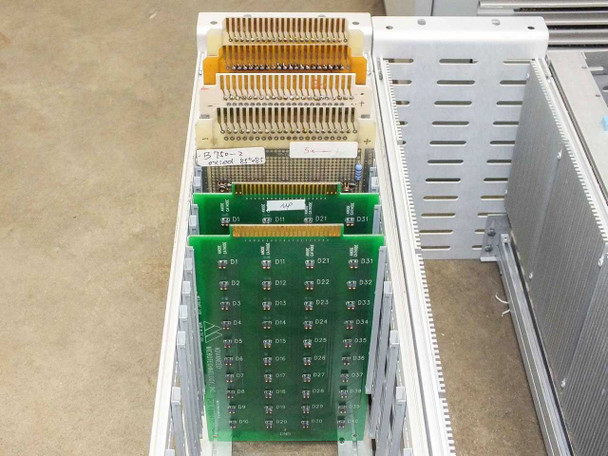

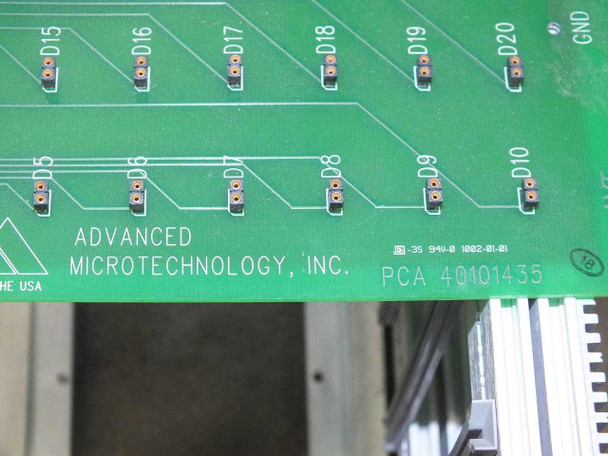

  • Close-up of Advanced Microtechnology plug-in burn-in boards stacked in card tray showing gold-edge connectors and green PCB matrix layout
  • Advanced Microtechnology Rack Mount Burn In System with Sorensen Power Supply
  • Advanced Microtechnology Rack Mount Burn In System with Sorensen Power Supply
  • Advanced Microtechnology Rack Mount Burn In System with Sorensen Power Supply
  • Advanced Microtechnology Rack Mount Burn In System with Sorensen Power Supply
  • Advanced Microtechnology Rack Mount Burn In System with Sorensen Power Supply
  • Advanced Microtechnology Rack Mount Burn In System with Sorensen Power Supply
  • Advanced Microtechnology Rack Mount Burn In System with Sorensen Power Supply
  • Advanced Microtechnology Rack Mount Burn In System with Sorensen Power Supply
  • Advanced Microtechnology Rack Mount Burn In System with Sorensen Power Supply
  • Advanced Microtechnology Rack Mount Burn In System with Sorensen Power Supply
  • Advanced Microtechnology Rack Mount Burn In System with Sorensen Power Supply
  • Advanced Microtechnology Rack Mount Burn In System with Sorensen Power Supply
  • Advanced Microtechnology Rack Mount Burn In System with Sorensen Power Supply
  • Advanced Microtechnology Rack Mount Burn In System with Sorensen Power Supply
  • Advanced Microtechnology Rack Mount Burn In System with Sorensen Power Supply
$1,400.00
Was: $2,500.00
Current Stock: 1

Sold Out

Description

Advanced Microtechnology Rack Mount Burn-In System w/ Sorensen DCS8-125E PSU

Rack mount burn-in test system for component and IC qualification. Includes Sorensen DCS8-125E AC/DC power supply (0–8 VDC output, 115/230 VAC input).

Specifications & What's Included

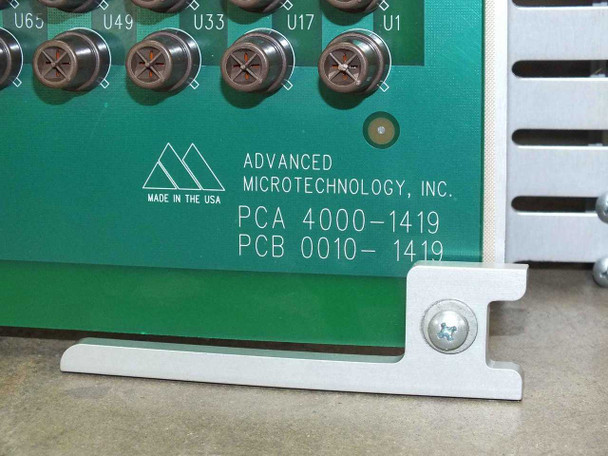

  • Model: Custom Rack Mount Burn-In System (PCA 4000-0638 / PCA 40101435 / PCA 4000-1419)

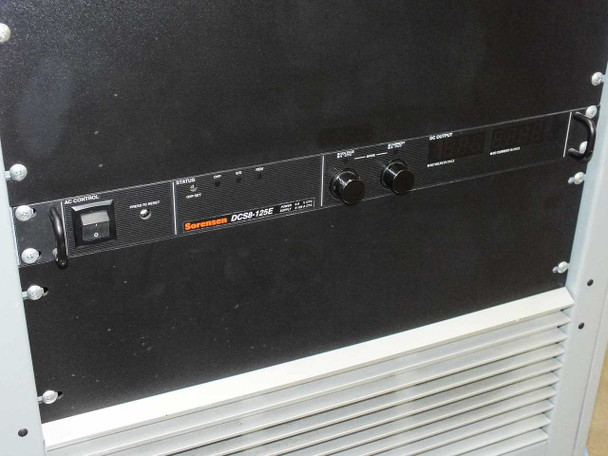

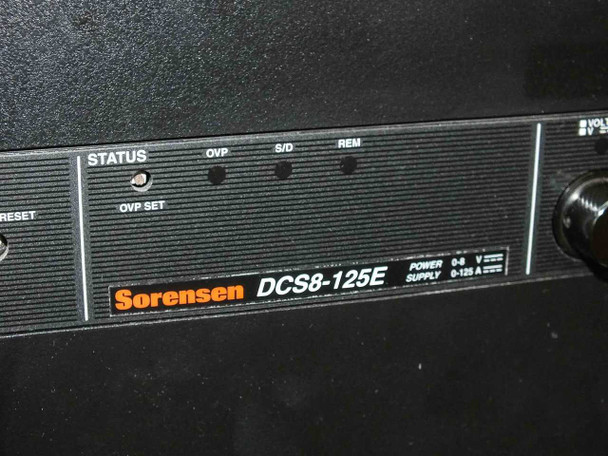

  • Power Supply: Sorensen DCS8-125E, 0–8 VDC output
  • Input: 115/230 VAC
  • Includes: 6x PCA 4000-0638, 2x PCA 40101435, 1x PCA 4000-1419

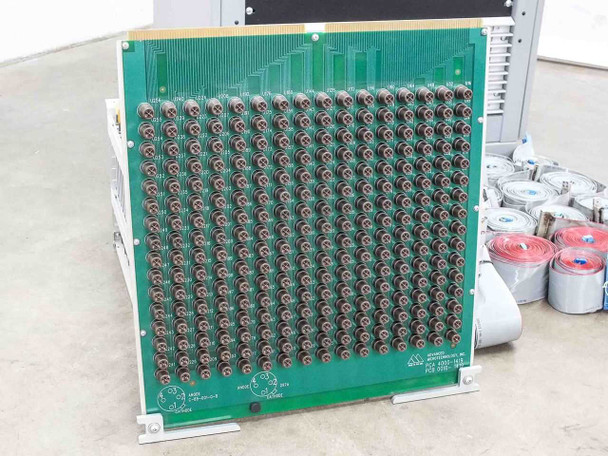

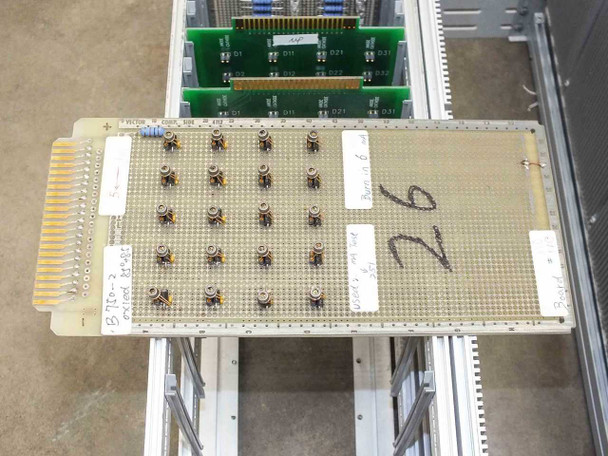

  • 4x Advanced Microtechnology burn-in boards

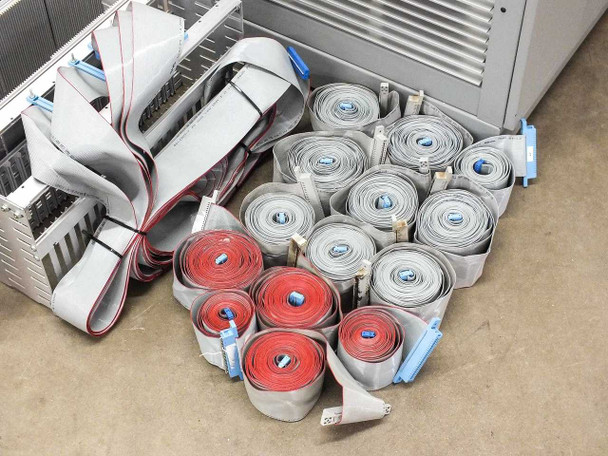

  • 14x ribbon cables

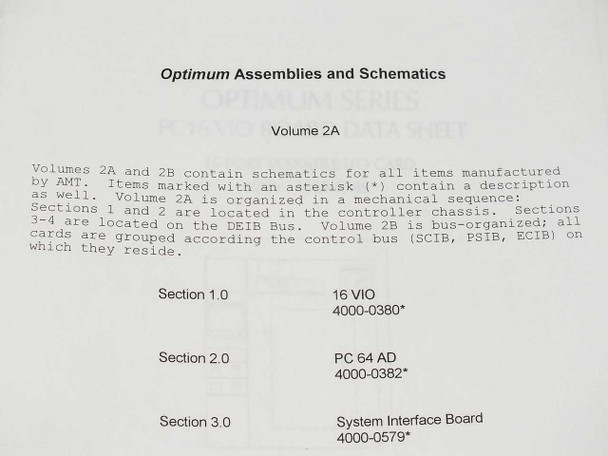

  • Optimum Assemblies and Schematics Manual Volume 2A
  • Form Factor: Rack mount / floor standing cabinet
  • Manufactured in USA

Applications

Component and IC burn-in testing, semiconductor QA and qualification.

Condition: Used
This Advanced Microtechnology rack mount burn-in system has been inspected and appears to be in good cosmetic and physical condition. The system includes all listed cards, burn-in boards, ribbon cables, and schematics manual as described. It has not been powered up or bench-tested at our facility. Freight shipping is required — please contact us for a quote or to arrange local pickup or a viewing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Advanced Microtechnology, Inc.
Model:
Custom Rack Mount Burn-In System
MPN:
PCA 4000-0638 / PCA 40101435 / PCA 4000-1419
SKU:
48249
Condition:
Used – Inspected
Form Factor:
Rack Mount / Floor Standing Cabinet
Power Requirements:

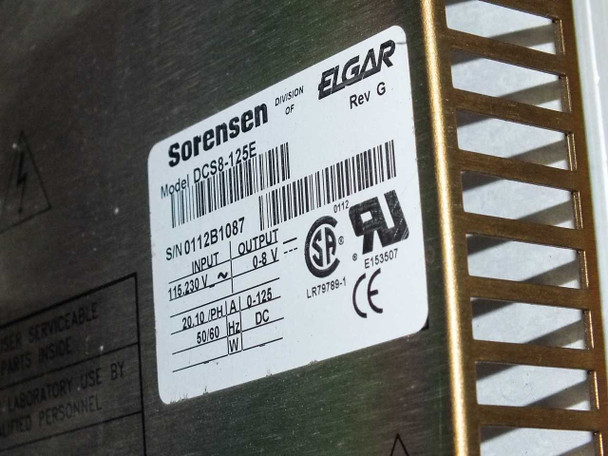

PRI: 115/230 VAC; SEC: 0–8 VDC (Sorensen DCS8-125E)
Included Power Supply:
Sorensen DCS8-125E AC/DC Power Supply
PSU Output Voltage:
0–8 VDC
PSU Input Voltage:
115 / 230 VAC
Plug-In Cards Included:
Qty 6: PCA 4000-0638; Qty 2: PCA 40101435; Qty 1: PCA 4000-1419
Burn-In Boards Included:
Qty 4 Advanced Microtechnology Burn-In Boards
Ribbon Cables Included:
Qty 14 Ribbon Cables
Documentation Included:
Optimum Assemblies and Schematics Manual Volume 2A
Country of Manufacture:
USA
Application:
Component / IC Burn-In Testing, Semiconductor QA
Shipping Method:
Freight shipping required — contact seller for quote
Seller Notes:

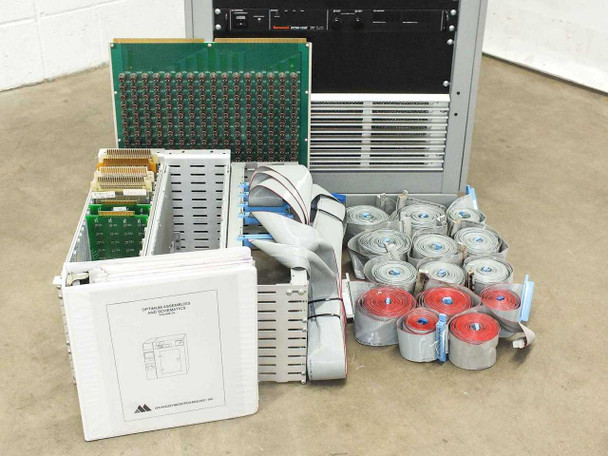

Includes Sorensen PSU, 13 PCBs, 4 burn-in boards, 14 ribbon cables, schematics manual.
Condition Notes:
This Advanced Microtechnology rack mount burn-in system has been inspected and appears to be in good cosmetic and physical condition. The system includes all listed cards, burn-in boards, ribbon cables, and schematics manual as described.
View AllClose

Related Products

Related Products

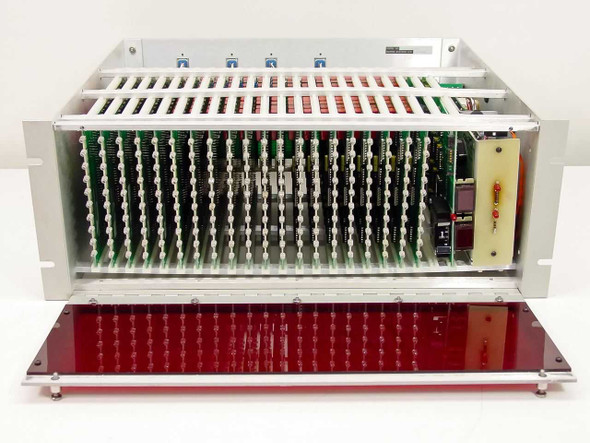

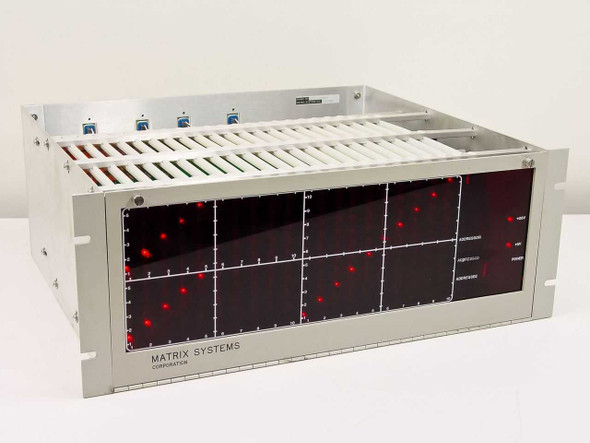

Matrix Systems 10360 Programmable Switching System front panel view showing multi-grid red LED matrix display and Matrix Systems Corporation nameplate Matrix Systems 10360 rear interior view with front panel removed showing populated card cage backplane with relay and logic cards installed
